Stainless steel standard AS Hex Nut Equal Tee
JN-FT-23 4016
Size：1/8"～4" (DN6～DN100), customizable reducing sizes
Grade：SS304, SS316L
Standard：ASME B16.11, DIN 2986, ISO
Working pressure：1.6～10.0 MPa
Test pressure：1.5 × working pressure
Temperature Range：-20℃～+200℃
PTFE seals：Good corrosion resistance, hygienic, suitable for food, beverage and pharmaceutical applications
Viton seals：High temperature resistance, oil resistance, aging resistance, suitable for harsh industrial conditions
Grade：SS304, SS316L
Standard：ASME B16.11, DIN 2986, ISO
Working pressure：1.6～10.0 MPa
Test pressure：1.5 × working pressure
Temperature Range：-20℃～+200℃
PTFE seals：Good corrosion resistance, hygienic, suitable for food, beverage and pharmaceutical applications
Viton seals：High temperature resistance, oil resistance, aging resistance, suitable for harsh industrial conditions
Quantity:
Recommend Products
Stainless steel pipe fitting reducing tri clamped teeSize：DN10–DN150 (1/2"–6") Grade：SS304, SS316L Standard：DIN, SMS, 3A, ISO, RJT Working pressure: 0.6–1.6 MPa Test pressure: 1.5 × working pressure Temperature Range：-20℃ ~ +150℃ PTFE seals: Sanitary, corrosion-resistant, suitable for food & pharmaceutical applications Viton seals: High-temperature & aging-resistant, suitable for harsh hygienic conditionsJN-FT-23 1017-1
Stainless Steel Custom Polished Welded Plain Reducing TeeSize：DN15-DN100 (1/2"-4"), customizable reducing specifications (e.g., DN50×DN32, DN80×DN50) Grade：SS304, SS316L (standard); carbon steel, alloy steel (optional) Standard：DIN, SMS, 3A, ISO, ASME B16.9 Working pressure: 1.6-4.0 MPa Test pressure: 1.5×working pressure Temperature Range：-20℃~200℃ PTFE seals: Food-grade, hygienic, corrosion-resistant, suitable for food, beverage and pharmaceutical pipelines Viton seals: High-temperature resistant, chemical-resistant, aging-resistant, suitable for harsh industrial working conditionsJN-FT-23 1015
Stainless Steel Industrial High Pressure Pull Short Welded TeeSize：DN15–DN100 (1/2"–4") Grade：SS304 / SS316L Standard：DIN, SMS, 3A, ISO, ASME B16.9 Working pressure: 1.6–4.0 MPa Test pressure: 1.5 times of working pressure Temperature Range：-20℃ to +200℃ PTFE seals: Suitable for sanitary, corrosion-resistant, high-temperature applications Viton seals: Excellent resistance to high temperature, oil and chemical mediaJN-FT-23 1014
Stainless Steel Pipe Fitting Equal sanitary Welded TeeSize: DN15 – DN300 (1/2" – 12") Grade: SS304, SS316L Standard: ASME B16.9, DIN, ISO, SMS, 3A Working Pressure: Up to 1.6 MPa Test Pressure: 2.4 MPa (1.5× working pressure) Temperature Range: -20°C to 200°C PTFE seals: Suitable for hygienic and corrosive fluid applications Viton seals: Suitable for high-temperature and harsh medium conditionsJN-FT-23 1013

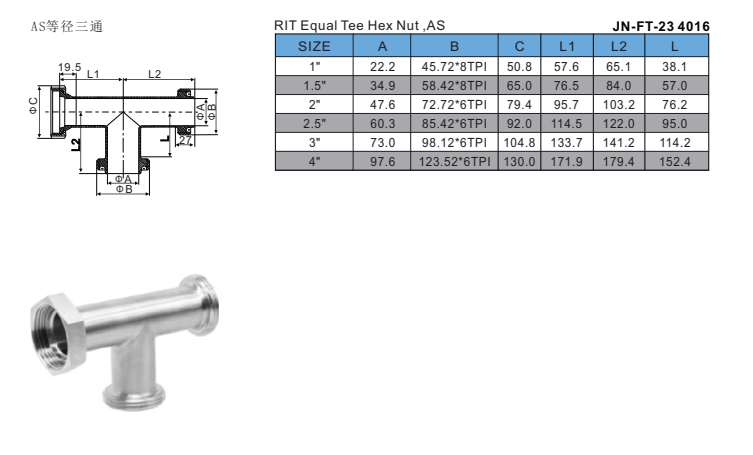

Stainless steel standard AS Hex Nut Equal Tee
Hex Nut Tee is a threaded hex‑nut connected tee pipe fitting with a compact hex nut structure for quick installation. It is mainly installed at the branch connection point of small‑bore pipelines to achieve fluid diversion, confluence and direction change. Widely used in pneumatic, hydraulic, industrial and sanitary pipelines, it ensures stable and leak‑proof performance. Types include equal hex nut tee, reducing hex nut teeanddouble/single hex nut versions to meet different pipeline connection needs.
Hex Nut Tee differs from ordinary tees by adoptinghex nut threaded connection, enabling tool‑friendly installation without welding, while standard tees usually need welding or clamping. Our product uses forged SS304/316Lwithprecision CNC machiningandstrict dimensional control. Compared with other suppliers, we provide higher pressure rating, smoother internal flow, better sealingandmore stable batch quality, effectively reducing leakage risks and installation difficulty for customers.
Accessories
Component & Material Table
- Main body: SS304, SS316L
- Hex nut: SS304, SS316L
- Seal ring: PTFE, EPDM, Viton (FKM)
Product Parameter Details
- Material:SS304, SS316L
- Structure:T‑shape, hex nut threaded connection, equal / reducing type; no jacket
- Pressure:Working pressure 1.6–10.0 MPa; Test pressure 1.5 × working pressure
- Temperature Range: -20℃ ~ +200℃
- Function:Pipeline branching, flow diversion, confluence, quick connection
- Grade:Sanitary grade, industrial grade, chemical grade
- Standard:ASME B16.11, DIN 2986, ISO
- Hygiene & Safety Level: Sanitary level (Ra ≤ 0.8μm), FDA/3A certified
- Installation:Suitable for horizontal and vertical installation
- Customization: Custom size, thread, material; sample service available
