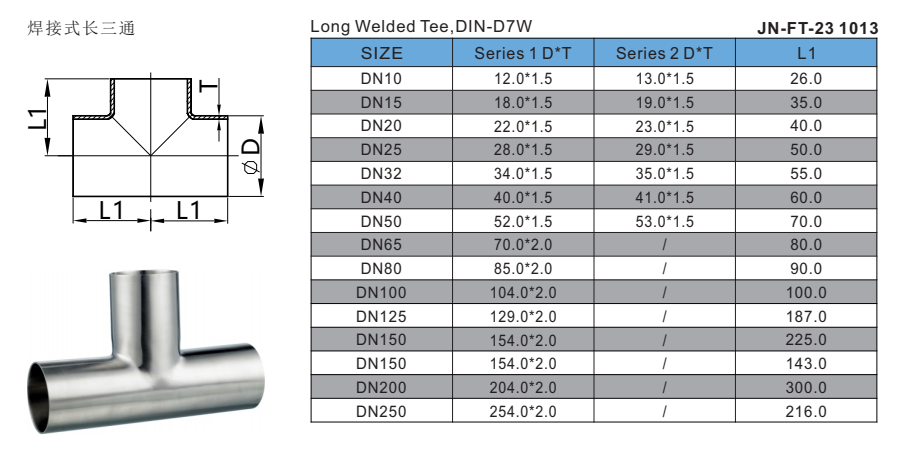

Stainless Steel Pipe Fitting Equal sanitary Welded Tee

JN-FT-23 1013

Size: DN15 – DN300 (1/2" – 12")
Grade: SS304, SS316L
Standard: ASME B16.9, DIN, ISO, SMS, 3A
Working Pressure: Up to 1.6 MPa
Test Pressure: 2.4 MPa (1.5× working pressure)
Temperature Range: -20°C to 200°C
PTFE seals: Suitable for hygienic and corrosive fluid applications
Viton seals: Suitable for high-temperature and harsh medium conditions

Quantity:

Contact Now

Recommend Products

Stainless steel pipe fitting reducing tri clamped tee

Size：DN10–DN150 (1/2"–6") Grade：SS304, SS316L Standard：DIN, SMS, 3A, ISO, RJT Working pressure: 0.6–1.6 MPa Test pressure: 1.5 × working pressure Temperature Range：-20℃ ~ +150℃ PTFE seals: Sanitary, corrosion-resistant, suitable for food & pharmaceutical applications Viton seals: High-temperature & aging-resistant, suitable for harsh hygienic conditions

JN-FT-23 1017-1
Stainless steel standard AS Hex Nut Equal Tee

Size：1/8"～4" (DN6～DN100), customizable reducing sizes Grade：SS304, SS316L Standard：ASME B16.11, DIN 2986, ISO Working pressure：1.6～10.0 MPa Test pressure：1.5 × working pressure Temperature Range：-20℃～+200℃ PTFE seals：Good corrosion resistance, hygienic, suitable for food, beverage and pharmaceutical applications Viton seals：High temperature resistance, oil resistance, aging resistance, suitable for harsh industrial conditions

JN-FT-23 4016
Stainless Steel Custom Polished Welded Plain Reducing Tee

Size：DN15-DN100 (1/2"-4"), customizable reducing specifications (e.g., DN50×DN32, DN80×DN50) Grade：SS304, SS316L (standard); carbon steel, alloy steel (optional) Standard：DIN, SMS, 3A, ISO, ASME B16.9 Working pressure: 1.6-4.0 MPa Test pressure: 1.5×working pressure Temperature Range：-20℃~200℃ PTFE seals: Food-grade, hygienic, corrosion-resistant, suitable for food, beverage and pharmaceutical pipelines Viton seals: High-temperature resistant, chemical-resistant, aging-resistant, suitable for harsh industrial working conditions

JN-FT-23 1015
Stainless Steel Industrial High Pressure Pull Short Welded Tee

Size：DN15–DN100 (1/2"–4") Grade：SS304 / SS316L Standard：DIN, SMS, 3A, ISO, ASME B16.9 Working pressure: 1.6–4.0 MPa Test pressure: 1.5 times of working pressure Temperature Range：-20℃ to +200℃ PTFE seals: Suitable for sanitary, corrosion-resistant, high-temperature applications Viton seals: Excellent resistance to high temperature, oil and chemical media

JN-FT-23 1014

Stainless Steel Pipe Fitting Equal sanitary Welded Tee

Welded Tee is a T‑shaped pipe fitting with full welded ends, used to connect three pipes in a straight line and a branch. It is widely applied in industrial, sanitary, oil, gas, and fluid pipelines, installed at branching and diverting positionstosplit, converge, or redirect flow reliably. Common types includeEqual Tee equal welded tee, reducing welded tee, short welded tee, and high‑pressure stainless steel welded tee, featuring strong welding integrity, good pressure resistance, and stable performance for long‑term pipeline use.

Welded Teefeaturesfull welded end connections for stronger integrity and higher pressure resistance, unlike threaded or clamped ordinary tees. It ensures a smoother, leak‑free flow path and permanent connection. Our products adopt seamless 304/316L stainless steel, CNC precision machining, and full internal & external polishing with strict pressure testing. Compared with standard suppliers, our welded tee provides superior welding quality, tighter dimensional accuracy, better corrosion resistance, and longer service life, ensuring stable performance in industrial and sanitary pipelines.

Accessories

Components & Materials

Main body: 304 / 316L stainless steel
Welded ends: Same grade stainless steel
Optional seals: PTFE, EPDM, Viton

Parameters by Category

Material: SS304, SS316L, carbon steel (optional)
Structure: T‑shape, butt‑welded ends, jacketed type available on request
Pressure: Working pressure up to 1.6 MPa; Test pressure 2.4 MPa
Function: Pipeline branching, flow diversion, convergence and direction change
Grade: Sanitary grade, industrial grade, chemical grade, food grade
Standard: ASME B16.9, DIN, ISO, SMS, 3A
Hygiene & Safety Level: Sanitary grade (Ra ≤ 0.8μm), meets food & pharmaceutical safety standards
Installation: Suitable for horizontal and vertical installation
Customization: Custom sizes, wall thickness, material, ends; sample service available

Stainless Steel Pipe Fitting Equal sanitary Welded Tee

Feature (F)、Advantage (A)、Benefit (B)

1. Material & Processing

Feature: Made of high-quality 304/316L stainless steel; seamless forging & CNC precision machining; full welded structure; internal and external full polishing, no dead legs.Advantage: High corrosion resistance, excellent mechanical strength, smooth flow path, stable and durable performance.Benefit: Ensures clean fluid transfer, reduces residue buildup, lowers maintenance frequency, and extends service life.

2. Welded Connection Structure

Feature: Full butt-weld end design; integrated T-shaped structure; no threaded gaps; high-integrity welding formation.Advantage: Zero leakage risk, high pressure resistance, permanent connection, smoother flow with less pressure loss.Benefit: Improves pipeline safety, avoids frequent repairs, ensures stable long-term operation, and reduces system downtime.

3. Flow & Structural Design

Feature: Standard equal-port T-type design; uniform wall thickness; optimized flow transition; compatible with PTFE, EPDM, Viton seals.Advantage: Stable flow distribution, easy installation, strong compatibility, suitable for high-speed and hygienic fluid systems.Benefit: Simplifies pipeline layout, improves conveying efficiency, and fits a wide range of industrial and sanitary applications.

4. Sanitary & Surface Quality

Feature: Sanitary-grade polished surface (Ra ≤ 0.8μm); crevice-free design; compliant with 3A, DIN, SMS, ISO standards.Advantage: Easy to clean and sterilize (CIP/SIP), high hygiene level, no bacteria accumulation.Benefit: Meets strict food, beverage, and pharmaceutical requirements, ensuring safe and hygienic production.

5. Standard Compliance & Customization

Feature: Conforms to ASME B16.9, DIN, ISO global standards; customizable sizes, wall thickness, and material grades; sample service available.Advantage: High dimensional accuracy, wide interchangeability, strong adaptability to different systems.Benefit: Easy to match existing pipelines, reduces matching cost, and supports customized project solutions.

Stainless Steel Pipe Fitting Equal sanitary Welded Tee

Interface Mode：Butt-welded (ASME B16.9/DIN/ISO standard); customizable socket weld ends; seamless welding connection

Production & Processing Method：Full CNC precision machining; one-piece forging shaping; full circumferential welding; no welding dead corners or defects

Surface Treatment：Inner cavity mirror polishing (Ra ≤ 0.8μm); outer surface electrolytic polishing/mechanical polishing; pickling passivation anti-corrosion treatment; sanitary-grade finish optional

Raw Material Processing Method：Main body & ports: 304/316L stainless steel forging (high structural density, no porosity); auxiliary parts: precision casting/plate forming/seamless pipe processing

Operation Mode：Fixed pipeline welding installation; manual assembly & welding; customizable matching with pneumatic/electric pipeline auxiliary components

Seal Ring Material Options：Food-grade PTFE, EPDM, Viton (FKM); FDA/3A certified for hygienic applications; high-temperature and corrosion-resistant materials optional

Sealing Method：Center seal (precision fit between weld joint and seal); end-face compression sealing; high-precision surface sealing for leak-free performance; no fluid leakage under working pressure
