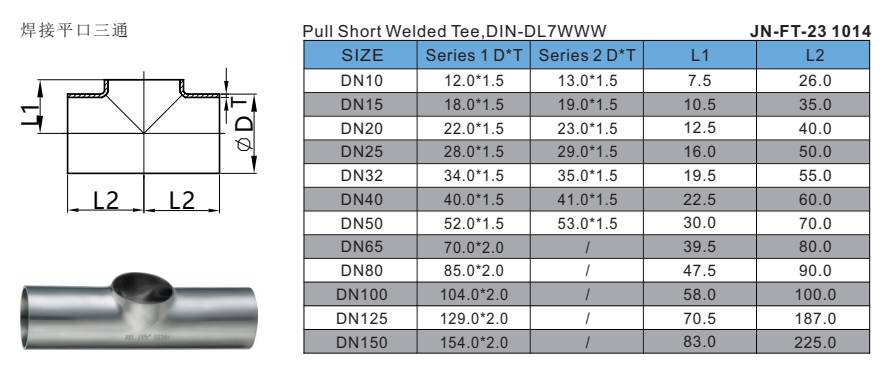

Stainless Steel Industrial High Pressure Pull Short Welded Tee

JN-FT-23 1014

Size：DN15–DN100 (1/2"–4")
Grade：SS304 / SS316L
Standard：DIN, SMS, 3A, ISO, ASME B16.9
Working pressure: 1.6–4.0 MPa
Test pressure: 1.5 times of working pressure
Temperature Range：-20℃ to +200℃
PTFE seals: Suitable for sanitary, corrosion-resistant, high-temperature applications
Viton seals: Excellent resistance to high temperature, oil and chemical media

Quantity:

Contact Now

Download directory

Recommend Products

Stainless Steel Industrial High Pressure Pull Short Welded Tee

Pull Short Welded Tee is a compact, short-pattern welded T-fitting with integrated pull-style connection for stable, leak-free branch installation. It is mainly used at branch, diversion and confluence positions of food, beverage, pharmaceutical, sanitary and industrial stainless steel pipelines to split, converge or redirect fluid flow Industrial Tee efficiently in limited space. Types include equal diameter, reducing, sanitary clamped and welded end Pull Short Welded Tee, all with high strength, smooth passage and strong corrosion resistance.

Pull Short Welded Tee features a short, compact structure and pull-weld integrated design, Short Tee offering smaller size, higher strength and smoother flow than conventional tees, ideal for limited installation spaces. Our products adopt one-piece forging, full CNC machining and Ra≤0.8μm sanitary polishing, with stricter dimensional accuracy and better leakproofness. Compared with other suppliers, we ensure stable pressure resistance, durable corrosion protection and compliance with DIN/SMS/3A standards, delivering longer service life and higher hygienic performance.

Accessories

Component & Material Table

Main body: 304 / 316L stainless steel
Pull welded ends: Same grade stainless steel
Optional seals: PTFE, EPDM, Viton

Product Parameter Details

Material: SS304, SS316L
Structure: Short pattern T-shape, pull welded ends, compact structure; jacketed type available on request
Pressure: Working pressure up to 1.6 MPa; Test pressure 2.4 MPa
Temperature Range: -20℃ to +200℃
Function: Pipeline branching, flow diversion, convergence and direction change in limited space
Grade: Sanitary grade, industrial grade, chemical grade
Standard: ASME B16.9, DIN, ISO, SMS, 3A
Hygiene & Safety Level: Sanitary grade (Ra ≤ 0.8μm), meets food and pharmaceutical safety standards
Installation: Suitable for horizontal and vertical installation
Customization: Custom sizes, material, ends; sample service available

Stainless Steel Industrial High Pressure Pull Short Welded Tee

Feature (F)、Advantage (A)、Benefit (B)

Raw Material:

• F: 100% virgin 304/316L stainless steel for main body & pull-weld ends; food-grade PTFE/Viton/EPDM seals

• A: Strong corrosion resistance; no material contamination; compliance with hygienic and industrial standards

• B: Safe for food, pharmaceutical, beverage & chemical applications; avoids media pollution and pipeline corrosion risks

Processing Technology:

• F: One-piece forging; full CNC precision machining; internal/external mirror polishing (Ra≤0.8μm); seamless pull-weld forming

• A: No welding dead corners or internal gaps; smooth flow passage; high structural strength; consistent dimensional accuracy

• B: Reduces cleaning time & labor costs; meets CIP/SIP requirements; prevents medium residue and pipeline blockages; ensures long-term stable operation

Structure Feature:

• F: Short-pattern compact T-shape; pull-weld integrated ends; standardized port design; no redundant accessories

• A: Saves 30% installation space; seamless connection; low pressure loss; easy assembly with various pipelines

• B: Adapts to space-limited pipeline layouts; cuts installation downtime; improves system flow efficiency; reduces layout and construction costs

Core Accessory Feature:

• F: Precision-machined pull-weld ends (same grade as main body); integrated sealing structure; no loose parts

• A: Strong joint integrity; leak-free sealing; no easy damage or detachment; compatible with standard pipelines

• B: Low maintenance frequency; reduces leakage risks; avoids accessory replacement costs; ensures reliable long-term use

Seal Ring Feature:

• F: Integrated precision-molded PTFE/Viton seals; high-temperature & corrosion-resistant; tight fit with port

• A: Excellent sealing performance; wide temperature adaptability (-20℃~200℃); wear and aging resistance

• B: Prevents medium leakage; adapts to various working conditions; extends seal service life; reduces maintenance and replacement costs

Stainless Steel Industrial High Pressure Pull Short Welded Tee

Interface Mode：Pull-welded, Butt-welded (short pattern end structure); compatible with DIN/SMS/3A/ISO/ASME B16.9 standard; customizable end types

Production & Processing Method：Full CNC precision machining; one-piece forging shaping; seamless pull-weld forming; no welding dead corners or internal gaps

Surface Treatment：Inner cavity mirror polishing (Ra ≤ 0.8μm); outer surface electrolytic polishing/passivation; sanitary-grade anti-corrosion treatment; no residue accumulation

Raw Material Processing Method：Main body & pull-weld ends: 304/316L stainless steel hot forging (high structural density, no porosity); no casting or stamping process

Operation Mode：Manual pipeline installation (no actuator required); simple and reliable operation; easy to assemble and disassemble

Seal Ring Material Options：Food-grade PTFE, EPDM, Viton (FKM); FDA/3A certified for hygienic applications; corrosion and high-temperature resistant

Sealing Method：Center line sealing; end-face static sealing structure; tight fit with port; high-precision leak-free performance
