Stainless steel pipe fitting reducing tri clamped tee

JN-FT-23 1017-1
Size：DN10–DN150 (1/2"–6")
Grade：SS304, SS316L
Standard：DIN, SMS, 3A, ISO, RJT
Working pressure: 0.6–1.6 MPa
Test pressure: 1.5 × working pressure
Temperature Range：-20℃ ~ +150℃
PTFE seals: Sanitary, corrosion-resistant, suitable for food & pharmaceutical applications
Viton seals: High-temperature & aging-resistant, suitable for harsh hygienic conditions
Quantity:
Contact Now
Download directory
Recommend Products

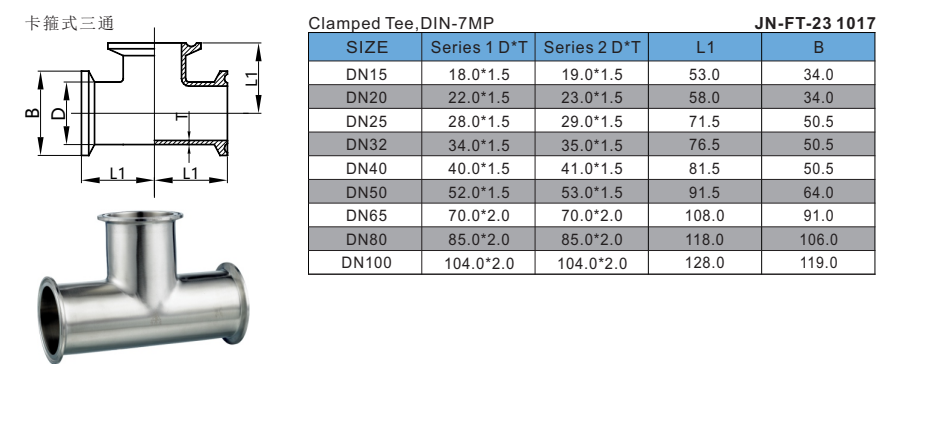

Stainless steel pipe fitting reducing tri clamped tee

Clamped Tee is a sanitary quick‑install T‑shaped pipe fittingwithclamp connection for fast assembly. It is mainly installed at thebranching point of hygienic pipelines to realize fluid diversion, confluence and direction change.Widely used infood, beverage, pharmaceutical and cosmetic pipelines, it ensures clean, sanitary tee  sanitary clamped pipe tee smooth flow and easy disassembly for cleaning. Types includeequal clamped tee, reducing clamped teeandmulti‑port clamped teeto meet various hygienic pipeline layouts.

Clamped Teeusesquick‑clamp connection instead of welding or threading, allowingtool‑free fast installation and disassembly. It is specially designed forsanitary applications with smooth, crevice‑free inner surface, while ordinary tees lack hygienic performance. Our products adoptforged SS304/316L,mirror polishing (Ra≤0.8μm), and precision clamping structure. Compared with others, we provide higher hygiene level, better sealing, longer service life and easier cleaning, greatly improving pipeline safety and efficiency.


Accessories

 Component & Material Table
  • Main body: SS304, SS316L
  • Clamp ferrule: SS304, SS316L
  • Gasket / Seal: PTFE, EPDM, Viton (FKM)
Product Parameter Details
  • Material: SS304, SS316L
  • Structure:T‑shape, clamped connection, equal / reducing type; jacketed structure available on request
  • Pressure:Working pressure 0.6–1.6 MPa; Test pressure 1.5 × working pressure
  • Temperature Range: -20℃ ~ +150℃
  • Function: Pipeline branching, flow diversion, confluence, quick connection
  • Grade: Sanitary grade, food grade, pharmaceutical grade
  • Standard:DIN, SMS, 3A, ISO, RJT
  • Hygiene & Safety Level: Sanitary level (Ra ≤ 0.8μm), FDA / 3A compliant
  • Installation:Suitable for horizontal and vertical installation
  • Customization:Custom size, reducing ratio, surface finish, material; sample service available
