Stainless steel SMS Equal Hygienic Clamped Y type tee

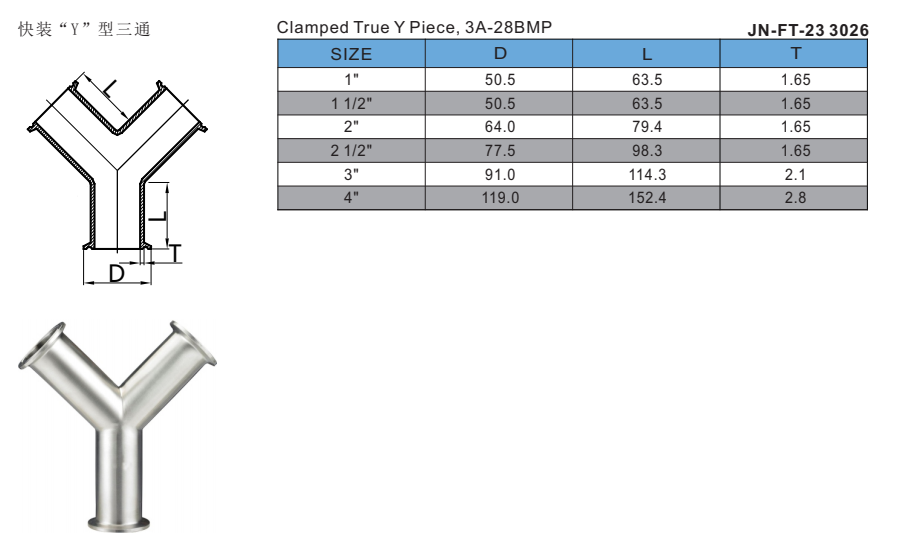

JN-FT-23 3026
Size: 1" - 6" (DN25 - DN150)
Grade: SS304, SS316L
Standard: DIN, SMS, 3A, ISO, RJT
Working pressure: Up to 1.6 MPa
Test pressure: 2.4 MPa (1.5 times working pressure)
Temperature range: -20°C to 150°C
PTFE seals: Standard configuration, high corrosion resistance
Viton seals: Optional for high temperature and harsh medium
Quantity:
Contact Now
Download directory
Recommend Products
Stainless steel SMS Equal Hygienic Clamped Y type tee

Clamped Y type tee is a Y-shaped three-way pipe fitting with quick-clamp connections, widely used sanitary tee  in sanitary, food, beverage, pharmaceutical and industrial pipelines. It is installed at diversion, confluence or branching pointstosplit, merge or redirect fluid flow smoothly at a Y angle. Common Clamp type Y types weld tee include equal clamped Y type tee,reducing clamped Y type tee,sanitary polished clamped Y type teeandhigh-pressure clamped Y type tee, featuring stable structure, fast installation and strong sealing.

Clamped Y type tee features a Y-shaped flow design for gentle diversion, while standard tees use a T-shaped right-angle structure. It offers smoother fluid passage with less turbulence and is equipped with quick-clamp connections for tool-free assembly. Our products adopt full CNC machining, 316L stainless steel, and Ra≤0.8μm sanitary polishing for higher precision and durability. Compared with others, our clamped Y type tee provides better sealing, stronger pressure resistance, and longer service life, ideal for hygienic and high-demand pipelines.


Accessories

Components & Materials

  • Main body: 304 / 316L stainless steel
  • Clamp ends: Stainless steel ferrule type
  • Gasket / Seal: PTFE, EPDM, Viton, Silicone
  • Clamp:Stainless steel quick clamp

Parameters

  • Material: 304, 316L stainless steel
  • Structure type: Y-type clamped structure, jacketed type available on request
  • Pressure rating: Working pressure up to 1.6 MPa; test pressure 1.5 times working pressure
  • Function: Flow diversion, convergence, branching and pipeline connection
  • Grade:Sanitary grade, industrial grade, food grade, pharmaceutical grade
  • Standard compliance: DIN, SMS, 3A, ISO, RJT, BS
  • Hygiene & safety level: Sanitary polished, compliant with food contact and hygienic standards
  • Installation orientation: Suitable for horizontal and vertical installation
  • Customization: Custom sizes, jacketed structure, material options, sample service available
