Stainless Steel Sanitary Fitting Industrial Short Welded Tee

JN-FT-23 3011

Size: DN15 – DN300 (1/2" – 12")
Grade: SS304, SS316L
Standard: ASME B16.9, DIN, ISO, SMS, 3A
Working Pressure: Up to 1.6 MPa
Test Pressure: 2.4 MPa (1.5× working pressure)
Temperature Range: -20°C to 200°C
PTFE seals: Suitable for hygienic and corrosive applications
Viton seals: Suitable for high temperature and harsh medium conditions

Quantity:

Contact Now

Download directory

Recommend Products

Stainless steel pipe fitting reducing tri clamped tee

Size：DN10–DN150 (1/2"–6") Grade：SS304, SS316L Standard：DIN, SMS, 3A, ISO, RJT Working pressure: 0.6–1.6 MPa Test pressure: 1.5 × working pressure Temperature Range：-20℃ ~ +150℃ PTFE seals: Sanitary, corrosion-resistant, suitable for food & pharmaceutical applications Viton seals: High-temperature & aging-resistant, suitable for harsh hygienic conditions

JN-FT-23 1017-1
Stainless steel standard AS Hex Nut Equal Tee

Size：1/8"～4" (DN6～DN100), customizable reducing sizes Grade：SS304, SS316L Standard：ASME B16.11, DIN 2986, ISO Working pressure：1.6～10.0 MPa Test pressure：1.5 × working pressure Temperature Range：-20℃～+200℃ PTFE seals：Good corrosion resistance, hygienic, suitable for food, beverage and pharmaceutical applications Viton seals：High temperature resistance, oil resistance, aging resistance, suitable for harsh industrial conditions

JN-FT-23 4016
Stainless Steel Custom Polished Welded Plain Reducing Tee

Size：DN15-DN100 (1/2"-4"), customizable reducing specifications (e.g., DN50×DN32, DN80×DN50) Grade：SS304, SS316L (standard); carbon steel, alloy steel (optional) Standard：DIN, SMS, 3A, ISO, ASME B16.9 Working pressure: 1.6-4.0 MPa Test pressure: 1.5×working pressure Temperature Range：-20℃~200℃ PTFE seals: Food-grade, hygienic, corrosion-resistant, suitable for food, beverage and pharmaceutical pipelines Viton seals: High-temperature resistant, chemical-resistant, aging-resistant, suitable for harsh industrial working conditions

JN-FT-23 1015
Stainless Steel Industrial High Pressure Pull Short Welded Tee

Size：DN15–DN100 (1/2"–4") Grade：SS304 / SS316L Standard：DIN, SMS, 3A, ISO, ASME B16.9 Working pressure: 1.6–4.0 MPa Test pressure: 1.5 times of working pressure Temperature Range：-20℃ to +200℃ PTFE seals: Suitable for sanitary, corrosion-resistant, high-temperature applications Viton seals: Excellent resistance to high temperature, oil and chemical media

JN-FT-23 1014

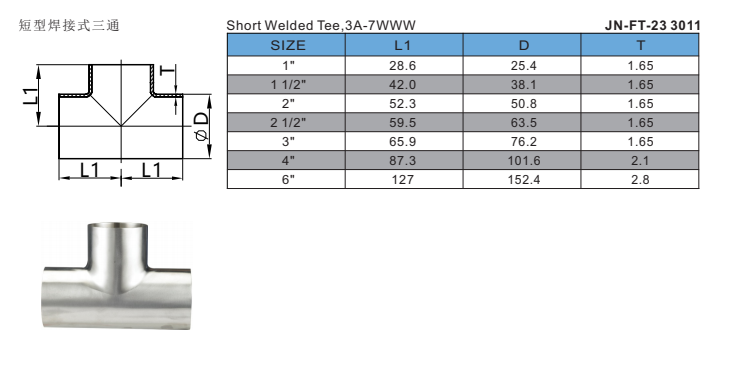

Stainless Steel Sanitary Fitting Industrial Short Welded Tee

Short Welded Tee is a compact, short-length T‑shaped pipe fitting with full welded ends, designed for space‑limited pipeline systems. It is widely used in sanitary, industrial, oil, gas, and fluid pipelines, installed at branching and connecting positionstosplit, converge, or redirect flow efficiently in restricted spaces.Common types include equal short welded tee, reducing short welded tee, 304/316L stainless steel short welded tee, and high‑pressure short welded tee, featuring a small footprint, strong welded integrity, and stable performance.

Short Welded Tee features a shorter overall length and compact structure compared with standard tees, making it ideal for space‑constrained installations. It uses full welded ends for stronger integrity. Our products adopt precision CNC forming, seamless stainless steel, and strict pressure testing with uniform wall thickness and smooth polishing. Compared with ordinary suppliers, our short welded tee provides better dimensional stability, higher pressure resistance, easier installation in narrow spaces, and longer service life, ensuring reliable, leak‑free performance in compact pipeline systems.

Accessories

Components & Materials

Main body: 304 / 316L stainless steel
Welded ends: Matching stainless steel material
Optional seals: PTFE, EPDM, Viton

Parameters

Material: SS304, SS316L
Structure type: Short pattern T‑shape, butt‑welded connection, jacketed type available on request
Pressure: Working pressure up to 1.6 MPa; Test pressure 2.4 MPa
Function: Flow branching, diverting, converging in compact pipeline layout
Grade: Sanitary grade, industrial grade, chemical grade, food grade
Standard compliance: ASME B16.9, DIN, ISO, SMS, 3A
Hygiene & safety level: Sanitary grade (Ra ≤ 0.8μm), meets food and pharmaceutical safety standards
Installation orientation: Suitable for horizontal and vertical installation
Customization: Custom sizes, wall thickness, material, ends; sample service available

Stainless Steel Sanitary Fitting Industrial Short Welded Tee

Feature (F)、Advantage (A)、Benefit (B)

1. Material & Processing

F: Made of high-quality 304/316L stainless steel; CNC machined, seamless structure; full welded ends; internal & external polished surface, no dead legs.

A: High corrosion resistance, stable strength, smooth flow, long service life, good pressure resistance.

B: Ensures clean fluid transfer, reduces residue, lowers maintenance, and improves pipeline reliability.

2. Short Pattern Compact Structure

F: Special short-length T-shape design; compact overall dimension; optimized for narrow installation spaces; full welded connection.

A: Saves installation space, reduces pipeline volume, improves layout flexibility, and fits limited equipment areas.

B: Enables installation in compact systems, lowers space cost, simplifies layout, and adapts to skid/unit equipment.

3. Welded Connection & Sealing Performance

F: Full circumferential butt-weld ends; precise machining; high integrity; compatible with PTFE, EPDM, Viton seals.

A: Strong connection, zero leakage, high pressure resistance, stable long-term performance.

B: Eliminates leakage risks, reduces downtime, ensures safe operation, and lowers maintenance cost.

4. Sanitary Grade & Surface Quality

F: Sanitary-grade polished finish (Ra ≤ 0.8μm); crevice-free design; compliant with 3A, DIN, SMS, ISO standards.

A: Easy to clean and sterilize (CIP/SIP), high hygiene level, suitable for food, beverage, pharmaceutical use.

B: Meets strict sanitary standards, guarantees production safety, and supports certified applications.

5. Standard Compatibility & Customization

F: Conforms to ASME B16.9, DIN, ISO global standards; customizable size, wall thickness, material; sample service available.

A: Wide compatibility, strong adaptability, stable dimensions, easy to match existing pipelines.

B: Simplifies installation and replacement, reduces matching cost, and supports customized project solutions.

Stainless Steel Sanitary Fitting Industrial Short Welded Tee

Connection Method: Butt-welded

Production & Processing Method: CNC precision machining, seamless forming, forging, stamping

Surface Treatment: Mechanical polishing, electrolytic polishing, pickling and passivation

Raw Material Processing Method: Forging, seamless pipe forming, plate forming, precision casting

Operation Mode: Fixed pipeline installation, manual assembly only

Seal Material Options: PTFE, EPDM, Viton, Silicone

Sealing Method: Face sealing, end-face compression sealing, center sealing
