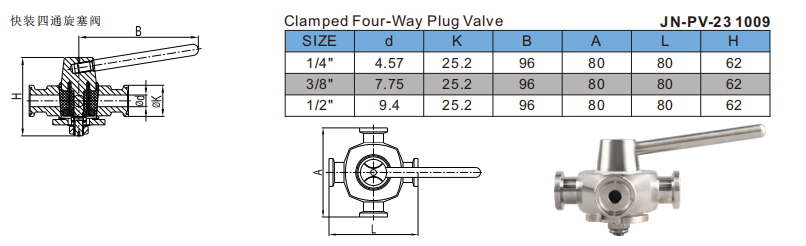

Stainless Steel Sanitary 4 Way Diverting Plug Valve

JN-PV-23 1009-2
Size：1/2" – 4" (DN15 – DN100)
Grade：SS304 / 316L (sanitary grade)
Standard：3A, SMS, DIN, ISO, GMP
Working pressure: 0 – 1.6 MPa
Test pressure: 2.4 MPa
Temperature Range：-20℃ – 150℃
seals: Food-grade PTFE, EPDM, Silicone
Quantity:
Contact Now
Recommend Products
Stainless Steel Sanitary 4 Way Diverting Plug Valve

OurStainless Steel Sanitary 4 Way Diverting Plug Valve is a multi-port sanitary 4 Way Valve plug valve intended for four-way Sanitary Valve flow diversion and switching in clean fluid pipelines. It is typically installed at pipeline intersections to control flow direction, distribution and shut-off of sanitary media such as beverages, dairy, syrup and purified fluids. Available in standard and custom flow patterns, it supports stable multi-path control for modern hygienic production lines.

OurStainless Steel Sanitary 4 Way Diverting Plug Valve stands apart from standard 2-way or 3-way valves with its dedicated four-port diverting structure and full sanitary design. Unlike regular industrial plug valves, all wetted surfaces are polished and crevice-free to prevent residue. Compared with competitors, our valve features precision-machined plug fit, stronger structural integrity, consistent sealing across all ports, and easier installation for complex sanitary piping layouts.


Accessories

 Component & Material Table
  • Valve Body & Plug：304/316L Stainless Steel (sanitary forging, crevice-free, full polish)
  • Seal：PTFE / EPDM / Silicone (food‑grade, high‑temperature, long‑life)
  • Manual Handle：304 Stainless Steel (manual operation, ergonomic, detachable)
  • Stem：304/316L Stainless Steel (polished, corrosion‑resistant, tight fit)
Product Parameter Details
  • Material：Full stainless steel wetted parts, hygienic grade, non-toxic, non-contaminating
  • Structure Form：4-way diverting flow path, integral body, no dead zones, smooth flow
  • Pressure Rating：Working 0–1.6 MPa, test 2.4 MPa, stable sealing in multi-port operation
  • Function：Four-way diversion, flow switching, shut-off, multi-line control in one valve
  • Grade Classification：Sanitary grade, compliant with 3A, GMP, FDA for food & pharma
  • Standard compatibility：3A, SMS, DIN, ISO sanitary connections
  • Certification Grade：High‑level sanitary design, CIP/SIP suitable
  • Installation Direction：Horizontal / vertical mounting allowed
  • Customization Service：Sizes, flow patterns, seals, actuation available upon request
Stainless Steel Sanitary 4 Way Diverting Plug Valve

Feature (F)、Advantage (A)、Benefit (B)
  1. Four-Way Diverting:
  • F: Four-port diverting flow structure with optimized flow paths for multi-line control
  • A:Enables simultaneous diversion and switching without extra valves, stable flow distribution
  • B: Simplifies piping layout, cuts component count, and improves system flexibility
  1. Sanitary Flow Path:
  • F: Crevice-free interior & mirror polishing (Ra≤0.8μm), no retained media
  • A: Prevents buildup, supports CIP/SIP cleaning, meets strict hygienic standards
  • B: Reduces contamination risk, lowers cleaning time, ensures product safety
  1. Precision Plug Fit:
  • F: Precision-machined tapered plug with tight body matching
  • A:Consistent sealing across all four ports, low torque operation, long service life
  • B: Minimizes leakage, lowers maintenance, extends replacement intervals
  1. Full Stainless Build:
  • F: 304/316L stainless steel body & plug, full sanitary forging
  • A: High corrosion resistance, no rust, durable in humid hygienic environments
  • B:Ensures long-term reliability, reduces downtime, strengthens production stability
  1. Easy Installation:
  • F:Standard sanitary connection design compatible with common clamp/thread ends
  • A:Quick assembly, good alignment, flexible positioning in complex lines
  • B:Speeds up on-site installation, cuts labor cost, adapts to various line layouts

Stainless Steel Sanitary 4 Way Diverting Plug Valve

Interface Mode：Sanitary tri-clamp, thread (custom flange available)
Production & Processing Method：CNC precision machining, sanitary forging, mirror polishing
Surface Treatment：Internal mirror polish, external electro-polish / passivation
Raw Material Processing Method：Forged 304/316L stainless steel (no rough casting)
Operation Mode：Manual (standard), pneumatic/electric actuation customizable
Seal Ring Material Options：Food-grade PTFE, EPDM, Silicone
Sealing Method：Plug-face compression sealing, multi-port consistent tightness
