Food Grade High Performance Tri-Clamp 4 Way Hygienic Plug Valve

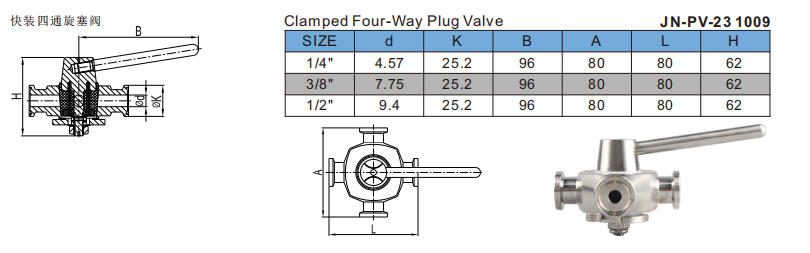

JN-PV-23 1009-4
Size: 1/2" – 4" (DN15 – DN100)
Material Grade: 304 / 316L stainless steel (food‑grade certified)
Applicable Standards: 3A, SMS, DIN, ISO, FDA, GMP
Operating Pressure: 0 – 2.0 MPa
Hydraulic Test Pressure: 3.0 MPa
Temperature Range: -20℃ to 170℃
Sealing Materials: High‑performance food‑grade PTFE, EPDM, Silicone (anti‑aging, long service life)
Quantity:
Contact Now
Food Grade High Performance Tri-Clamp 4 Way Hygienic Plug Valve

OurFood Grade High Performance Tri-Clamp 4 Way Hygienic Plug Valve is a high-performance Food Grade Valve Hygienic Valve four-way sanitary plug valve with tri-clamp connection, mainly installed at multi-port pipeline junctions for diversion, confluence and flow switching of food-grade media. It delivers stable performance for high-frequency operation in food, beverage and dairy processing, with optimized flow paths and strong sealing to support reliable long-running production systems.

OurFood Grade High Performance Tri-Clamp 4 Way Hygienic Plug Valve is clearly distinguished from ordinary 2-way, 3-way or standard 4-way plug valves by its enhanced high-performance structure, dedicated food‑grade material selection and standardized tri‑clamp connection design. Unlike conventional industrial valves that focus only on basic on‑off functions, this model features a fully polished crevice‑free interior, precision‑machined tapered plug and reinforced multi‑point sealing system to ensure zero leakage even under higher pressure and frequent operation. Compared with most similar products on the market, our valve uses integrally forged 304/316L stainless steel for improved structural strength, extended service life and better corrosion resistance. It also strictly complies with 3A, FDA and GMP standards, making it more suitable for strict hygienic environments. The tri‑clamp connection allows faster installation and disassembly without extra tools, greatly improving on‑site maintenance efficiency and reducing downtime in continuous production.


Accessories

 Component & Material Table
  • Valve Body & Plug：304/316L Stainless Steel (food-grade forging, high strength, crevice-free)
  • Seals：PTFE / EPDM / Silicone (food-grade, high-performance, high-temperature resistant)
  • Handle：304 Stainless Steel (ergonomic, manual operation, detachable)
  • Tri-Clamp End：304 Stainless Steel (standard sanitary connection, quick assembly)
  • Stem：PTFE / EPDM / Silicone (food-grade, high-performance, high-temperature resistant)
Product Parameter Details
  • Material：Full stainless steel wetted parts, food-grade certified, non-toxic
  • Structure Form：4-way diverting channel, integral body, tri-clamp ends
  • Pressure Rating：Working 0–2.0 MPa, test 3.0 MPa, high stability
  • Function：4-way diversion, flow switching, shut-off, high-frequency use
  • Grade Classification：Food-grade hygienic level, FDA, 3A, GMP compliant
  • Standard：3A, SMS, DIN, ISO sanitary tri-clamp compatible
  • Hygiene：Crevice-free, mirror polished, CIP/SIP suitable
  • Installation：Horizontal / vertical mounting allowed
  • Customization Service：Sizes, seals, actuation, flow patterns available
Food Grade High Performance Tri-Clamp 4 Way Hygienic Plug Valve

Feature (F)、Advantage (A)、Benefit (B)
  1. High Performance:
  • F: High-strength forging body with upgraded pressure rating up to 2.0 MPa
  • A:Stable under high load and frequent switching, low deformation risk
  • B: Ensures continuous production, reduces downtime and failures
  1. Tri-Clamp Quick Install:
  • F: Standard sanitary tri-clamp ends for tool-free fast connection
  • A: Quick assembly and disassembly, good concentricity, no dead gaps
  • B: Shortens installation and maintenance time, improves workshop efficiency
  1. Food Grade Safe:
  • F: 304/316L full stainless steel wetted parts, FDA food-grade compliant
  • A:Non-toxic, corrosion-resistant, no contamination to food media
  • B: Guarantees product safety, meets food processing certification demands
  1. Anti-Leak Sealing:
  • F: Precision tapered plug + high-density food-grade seals
  • A: Consistent tight sealing, no internal or external leakage
  • B:Prevents product loss and cross-contamination, ensures process safety
  1. Hygienic Flow Path:
  • F:Crevice-free mirror polishing (Ra≤0.8μm), no residue retention
  • A:Easy to clean and sterilize, suitable for CIP/SIP
  • B:Reduces bacteria risk, maintains high hygiene in production lines

Food Grade High Performance Tri-Clamp 4 Way Hygienic Plug Valve

Interface Mode：Sanitary tri-clamp (3A/SMS/DIN/ISO)
Production & Processing Method：CNC machining, integral forging, mirror polishing
Surface Treatment：Internal mirror polish, external electro-polish / passivation
Raw Material Processing Method：Forged 304/316L stainless steel
Operation Mode：Manual (standard), pneumatic/electric customizable
Seal Ring Material Options：Food-grade PTFE, EPDM, Silicone
Sealing Method：Tapered plug compression, zero-leakage design
