Food Grade SS304 Manual Taper Four Way Hygienic Plug Valve

JN-PV-23 1009-1
Size：1/2" - 4" (DN15 - DN100)
Grade：304 Stainless Steel (food-grade hygienic standard, food contact safe)
Standard：3A, SMS, DIN, ISO, FDA, GMP
Working pressure: 0 - 1.6 MPa
Test pressure: 2.4 MPa
Temperature Range：-20℃ - 160℃
seals: Food-grade PTFE, EPDM, Silicone (non-toxic, odorless, food contact compliant)
Quantity:
Contact Now
Food Grade SS304 Manual Taper Four Way Hygienic Plug Valve

OurFood Grade SS304 Manual Taper Four Way Hygienic Plug Valve is a food-safe manual taper four-way Hygienic Valve plug valve, specially applied to the multi-branch diversion, media confluence and flow switching core positions of food-grade fluid pipelines. It is mainly used for on-off control and four-directional flow adjustment of edible fluids, food slurry, dairy raw materials and beverage concentrate, with a precision taper plug structure to meet the complex media transmission and layout needs Food Grade Valve of food production lines.

OurFood Grade SS304 Manual Taper Four Way Hygienic Plug Valve differs from ordinary plug valves in food-grade material and taper four-way design: it uses pure 304 food stainless steel for the whole body and a precision taper plug, with a fully polished inner cavity free of dead corners. Compared with other suppliers’ products, our valve features integrated four-way flow channel, labor-saving manual operation, excellent sealing performance and food contact safety, and fully meets FDA food safety standards, suitable for strict food processing production scenarios.


Accessories

 Component & Material Table
  • Valve Body & Taper Plug Core：304 Stainless Steel (food-grade integral forging, no welding seam, mirror polished inner cavity)
  • Valve Seat & Seal Ring：PTFE/EPDM/Silicone (food-grade, high temperature resistance, food contact safe, anti-aging)
  • Manual Handle：304 Stainless Steel (ergonomic design, 90° quick rotation, detachable for cleaning)
  • Valve Gasket：Food-grade silicone (sealing auxiliary, non-toxic, good compression resilience)
  • Valve Stem：304 Stainless Steel (hygienic polishing, wear-resistant, anti-rust, stable torque transmission)
Product Parameter Details
  • Material：All wetted parts are 304 food-grade stainless steel + FDA-certified food contact sealing materials, non-toxic and odorless
  • Structure Form：Taper plug core structure, integrated four-way flow channel, integral forging body, no dead angle in inner cavity
  • Pressure Rating：Working pressure 0-1.6MPa, test pressure 2.4MPa, stable pressure resistance in four-way media transmission, no leakage
  • Function：Four-way media diversion, confluence, on-off and flow switching integration, one valve for multi-path flow control
  • Grade Classification：Food-grade hygienic grade, meets FDA/3A/GMP food safety standards, exclusive for food processing industry
  • Specification Match：Compatible with 3A/SMS/DIN/ISO international food sanitary standards, fit standard food-grade pipelines
  • Certification Grade：Hygiene Class I (food contact safe level), Safety Class IP65 (dustproof and waterproof, adapt to food workshop environment)
  • Installation Direction：Horizontal/vertical optional, flexible installation for complex food production pipeline layout
  • Customization Service：Customizable size (1/2"-4"), sealing material, handle length, small batch sample customization supported

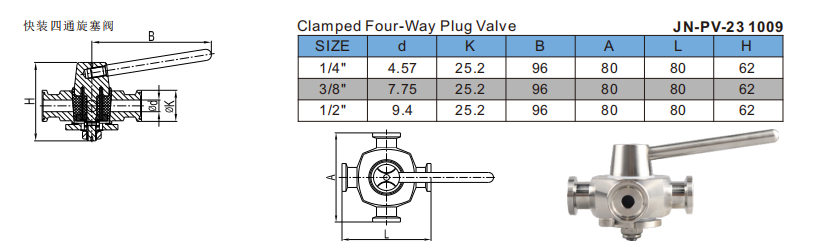

Food Grade SS304 Manual Taper Four Way Hygienic Plug Valve

Feature (F)、Advantage (A)、Benefit (B)
  1. Food-grade Forging Body:
  • F: Adopts 304 food-grade integral forging valve body, all wetted parts comply with FDA food contact safety standards
  • A:No heavy metal precipitation, non-toxic and odorless, strong corrosion resistance to food acid and alkali media, easy to clean
  • B: Ensures the safety of food raw materials and finished products, avoids food contamination risks, meets food production certification requirements
  1. Taper Plug Sealing:
  • F: Equipped with precision-machined taper plug core and food-grade sealing ring, taper fitting compression sealing structure
  • A: High-precision four-way sealing, no media leakage or cross-contamination, 90° quick manual switch, labor-saving operation
  • B: Prevents food medium waste and quality deterioration caused by cross-contamination, reduces worker operation intensity, improves production efficiency
  1. Four-way Flow Design:
  • F:  Integrated four-way flow channel structure, realizing one-valve multi-path diversion, confluence and switching
  • A:Replaces multiple single/three-way valves, saves pipeline installation space, adapts to complex food production pipeline layout
  • B: Reduces the number of valves purchased for food production lines, simplifies pipeline layout, lowers overall installation and maintenance costsCuts installation downtime; adapts to complex pipeline layouts; minimizes operational errors
  1. Hygienic No-dead-angle:
  • F: Inner cavity super mirror polishing (Ra≤0.8μm), integral structure without welding seam, detachable handle
  • A: Zero medium residue in the valve cavity, easy for CIP online cleaning and manual sterilization, no bacterial breeding hidden danger
  • B:Shortens food production line cleaning time, ensures the hygienic level of production process, avoids food spoilage caused by bacterial growth
  1. Durable Food Workshop Adaptation:
  • F:Full 304 stainless steel components, wide temperature adaptability (-20℃-160℃), IP65 dustproof and waterproof
  • A:No rust or deformation in the humid food workshop environment, stable performance under different food processing temperature conditions
  • B:Extends the service life of the valve, reduces the frequency of replacement and maintenance, ensures the continuous and stable operation of food production lines

Food Grade SS304 Manual Taper Four Way Hygienic Plug Valve

Interface Mode：Food-grade sanitary thread, tri-clamp connection optional (3A/SMS/DIN/ISO standard)
Production & Processing Method：CNC precision machining, integral forging forming, inner cavity mirror polishing
Surface Treatment：Inner cavity mirror polishing (Ra≤0.8μm), outer surface electrolytic polishing/passivation
Raw Material Processing Method：304 food-grade stainless steel integral forging (no casting, one-piece molding without welding seam)
Operation Mode：Manual (ergonomic 304 stainless steel handle, 90° quick rotation), pneumatic/electric actuation customization supported
Seal Ring Material Options：Food-grade PTFE, food-grade EPDM, food-grade Silicone
Sealing Method：Taper plug core fitting sealing, food-grade sealing ring compression sealing, zero cross-contamination
