SS304 Sanitary Anti-Leakage DIN Four Way Plug Valve

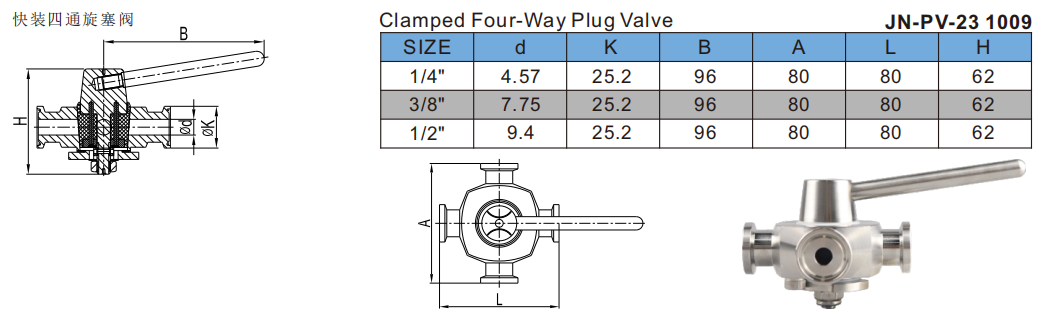

JN-PV-23 1009-3
Size：1/2" – 4" (DN15 – DN100)
Grade：SS304 (sanitary grade)
Standard：DIN, SMS, 3A, ISO, GMP
Working pressure: 0 – 1.6 MPa
Test pressure: 2.5 MPa
Temperature Range：-20℃ – 150℃
seals: Food‑grade PTFE, EPDM, Silicone (high‑density anti‑leakage)
Quantity:
Contact Now
Recommend Products
SS304 Sanitary Anti-Leakage DIN Four Way Plug Valve

OurSS304 Sanitary Anti-Leakage DIN Four Way Plug Valve is a DIN‑standard four‑way sanitary plug valve focused SS304 Valve Sanitary Valve on zero‑leakage performance in hygienic fluid pipelines. It is mainly installed at multi‑port junction points to control diversion, confluence and shut‑off of food liquids, dairy, syrup and clean process media. With a reinforced sealing structure and DIN‑compliant dimensions, it ensures stable flow control and high reliability in continuous production systems.

OurSS304 Sanitary Anti-Leakage DIN Four Way Plug Valve distinguishes itself from common four‑way plug valves with its anti‑leakage sealing system and strict DIN dimensional standard. Unlike general valves, it uses double‑layer compression sealing and precision plug matching to avoid internal and external leakage. Compared with other suppliers, our valve features thicker forging body, stricter DIN tolerance, better torque consistency, and longer service life in high‑frequency switching conditions.


Accessories

 Component & Material Table
  • Valve Body & Plug：304 Stainless Steel (sanitary forging, solid structure, anti‑deformation)
  • Sealing Set：PTFE / EPDM / Silicone (food‑grade, high‑density, anti‑leakage, long‑life)
  • Manual Handle：304 Stainless Steel (manual, ergonomic, stable 90° operation)
  • Valve Stem：304 Stainless Steel (precision machined, corrosion‑resistant, tight sealing support)
Product Parameter Details
  • Material：Full 304 stainless steel wetted parts, hygienic forging, non‑toxic, easy cleaning
  • Structure Form：Four‑way diverting channel, reinforced anti‑leakage structure, no dead corners
  • Pressure Rating：Working 0–1.6 MPa, test 2.5 MPa, high pressure resistance
  • Function：Four‑way diversion, flow switching, shut‑off, anti‑leakage in long‑term use
  • Grade Classification：Sanitary grade, suitable for food, beverage, dairy and pharma applications
  • Standard：Fully compliant with DIN, SMS, 3A, ISO sanitary standards
  • Certification Grade：Crevice‑free, mirror polished, CIP/SIP compatible
  • Installation Direction：Horizontal / vertical installation available
  • Customization Service：Sizes, seals, connection types, actuation can be customized
SS304 Sanitary Anti-Leakage DIN Four Way Plug Valve

Feature (F)、Advantage (A)、Benefit (B)
  1. Anti-Leakage Design:
  • F: Enhanced multi‑point sealing structure with high‑density food‑grade seals
  • A:Eliminates internal and external leakage, improves sealing stability under pressure
  • B: Prevents media loss, avoids cross‑contamination, ensures production safety
  1. DIN Standard:
  • F: Strict DIN dimensional & connection standard for universal sanitary pipeline matching
  • A: Perfect interchangeability, high fitting accuracy, easy installation and replacement
  • B: Reduces matching issues, speeds up on‑site assembly, lowers maintenance difficulty
  1. Sanitary Flow Path:
  • F: Crevice‑free inner cavity & mirror polishing (Ra≤0.8μm), no residue retention
  • A:Easy to clean and sterilize, meets GMP hygienic requirements
  • B: Reduces bacteria risk, ensures product purity, shortens cleaning cycles
  1. Solid Forged Body:
  • F: 304 sanitary forging body with thickened structure, high strength and rigidity
  • A: Resists deformation, stable in high‑frequency operation, long service life
  • B:Lowers failure rate, extends replacement cycle, reduces total operating cost
  1. Four-Way Control:
  • F:Integrated four‑way flow design for diversion and confluence in one valve
  • A:Replaces multiple valves, simplifies pipeline layout, optimizes space usage
  • B:Cuts component cost, improves system efficiency, supports flexible production

SS304 Sanitary Anti-Leakage DIN Four Way Plug Valve

Interface Mode：DIN standard sanitary connections, tri‑clamp, thread (customizable)
Production & Processing Method：CNC precision machining, integral forging, mirror polishing
Surface Treatment：Internal mirror polish, external electro‑polishing / passivation
Raw Material Processing Method：Forged 304 stainless steel (no casting, high density)
Operation Mode：Manual (standard), pneumatic / electric actuation available on request
Seal Ring Material Options：Food‑grade PTFE, EPDM, Silicone (anti‑leakage grade)
Sealing Method：Multi‑point compression sealing, tapered plug matching, zero leakage
