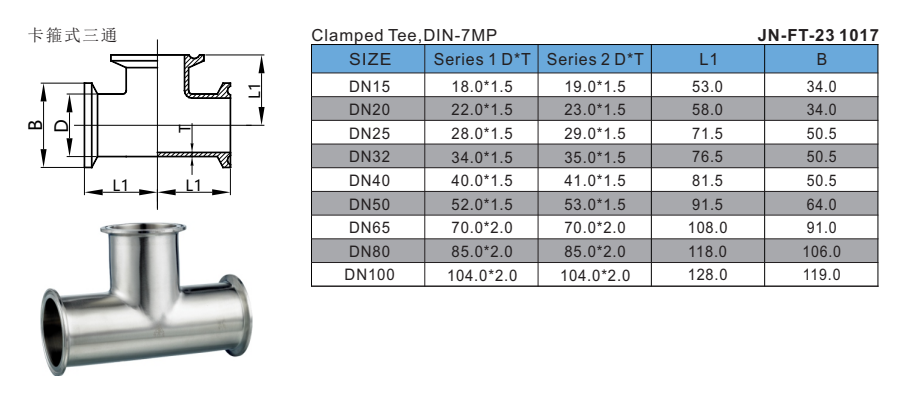

Stainless steel Sanitary 316L Hygienic Clamped Pipe Tee
JN-FT-23 1017
Stainless Steel Clamped Tee Product Brief
This stainless steel clamped tee is a premium hygienic pipe fitting for quick-connect piping systems, featuring reliable clamped connection for easy installation and disassembly.
Size: Customizable per customer requirements
Grade: 304/316L (AISI/SS) optional
Standard: 3A/DIN/ISO hygienic standard
Working pressure: Rated for normal working pressure of hygienic piping systems
Test pressure: Hydrostatic test pressure compliant with industrial hygienic fitting norms
Temperature Range: Resistant to a wide temperature span, adaptable to general industrial and hygienic application conditions
This stainless steel clamped tee is a premium hygienic pipe fitting for quick-connect piping systems, featuring reliable clamped connection for easy installation and disassembly.
Size: Customizable per customer requirements
Grade: 304/316L (AISI/SS) optional
Standard: 3A/DIN/ISO hygienic standard
Working pressure: Rated for normal working pressure of hygienic piping systems
Test pressure: Hydrostatic test pressure compliant with industrial hygienic fitting norms
Temperature Range: Resistant to a wide temperature span, adaptable to general industrial and hygienic application conditions
Quantity:
Recommend Products
Stainless steel pipe fitting reducing tri clamped teeSize：DN10–DN150 (1/2"–6") Grade：SS304, SS316L Standard：DIN, SMS, 3A, ISO, RJT Working pressure: 0.6–1.6 MPa Test pressure: 1.5 × working pressure Temperature Range：-20℃ ~ +150℃ PTFE seals: Sanitary, corrosion-resistant, suitable for food & pharmaceutical applications Viton seals: High-temperature & aging-resistant, suitable for harsh hygienic conditionsJN-FT-23 1017-1
Stainless steel standard AS Hex Nut Equal TeeSize：1/8"～4" (DN6～DN100), customizable reducing sizes Grade：SS304, SS316L Standard：ASME B16.11, DIN 2986, ISO Working pressure：1.6～10.0 MPa Test pressure：1.5 × working pressure Temperature Range：-20℃～+200℃ PTFE seals：Good corrosion resistance, hygienic, suitable for food, beverage and pharmaceutical applications Viton seals：High temperature resistance, oil resistance, aging resistance, suitable for harsh industrial conditionsJN-FT-23 4016
Stainless Steel Custom Polished Welded Plain Reducing TeeSize：DN15-DN100 (1/2"-4"), customizable reducing specifications (e.g., DN50×DN32, DN80×DN50) Grade：SS304, SS316L (standard); carbon steel, alloy steel (optional) Standard：DIN, SMS, 3A, ISO, ASME B16.9 Working pressure: 1.6-4.0 MPa Test pressure: 1.5×working pressure Temperature Range：-20℃~200℃ PTFE seals: Food-grade, hygienic, corrosion-resistant, suitable for food, beverage and pharmaceutical pipelines Viton seals: High-temperature resistant, chemical-resistant, aging-resistant, suitable for harsh industrial working conditionsJN-FT-23 1015
Stainless Steel Industrial High Pressure Pull Short Welded TeeSize：DN15–DN100 (1/2"–4") Grade：SS304 / SS316L Standard：DIN, SMS, 3A, ISO, ASME B16.9 Working pressure: 1.6–4.0 MPa Test pressure: 1.5 times of working pressure Temperature Range：-20℃ to +200℃ PTFE seals: Suitable for sanitary, corrosion-resistant, high-temperature applications Viton seals: Excellent resistance to high temperature, oil and chemical mediaJN-FT-23 1014
Stainless steel Sanitary 316L Hygienic Clamped Pipe Tee
AClamped tee is a hygienic stainless steel pipe Sanitary fitting (not a pipe) with a quick-connect clamped structure, widely used at branch connection points of hygienic fluid pipelines in food, pharmaceutical, and beverage industries. Its core function is to split, merge fluid media or change flow directionsto realize multi-path conveyance in piping systems. The main types are equal-diameter Clamped tees (same inlet/outlet sizes) and reducing Clamped tees (different branch sizes), both featuring fast assembly/disassembly for easy pipeline cleaning and maintenance.
AHygienic Tee differs from ordinary tees in its one-click clamped connection—no welding/threading, enabling fast disassembly/assembly for hygienic cleaning, while ordinary tees use fixed connections with complex maintenance. Our Clamped tees outperform competitors with high-precision 304/316L stainless steel forging, strict compliance with 3A/ISO standards, and customized pressure/temperature ratings; the sealed clamp structure ensures zero leakage, with a polished inner wall meeting food/pharma sterile requirements, and thicker pipe walls for longer service life.
Accessories
I. Component & Material
Tee Body：304/316L Stainless Steel (sanitary-grade forging); Seal Gasket：PTFE/EPDM (food-grade, corrosion-resistant); Quick-clamp：304 Stainless Steel/Aluminum Alloy (anti-slip); Quick-clamp Fitting：304/316L Stainless Steel (polished finish); Connecting Port：304/316L Stainless Steel (wear-resistant).
II. Product Parameter Details
Material：Main body: 304/316L stainless steel; Seals: food-grade PTFE/EPDM; Quick-clamp: 304 SS/aluminum alloy.
Structure Form：Standard: three-way L/T port, clamp-type quick-install; Optional: jacketed structure for temperature control.
Pressure Rating：PN10/PN16; 150PSI (working pressure); Test pressure: 1.5× working pressure.
Function：Flow direction switching, media merging, fluid diversion; for hygienic pipeline branch connection.
Grade Classification：Hygiene grade: 3A/DIN 11851; Industry grade: sanitary-grade (for food/pharma), no industrial-grade option.
Specification Match：Standards: DIN (German), SMS (Swedish), 3A (American), ISO (international); Size range: 1/2"–4".
Certification Grade：Hygiene certification: 3A, FDA; Safety certification: CE, ISO 9001.
Installation Direction：Horizontal/vertical installation (no flow direction restriction; clamp upward for easy operation).
Customization Service：Custom size (5"+), special seal material (Viton), jacketed structure; sample support for testing.
