Stainless Steel Reducing Welded Lateral Y type Tee

JN-FT-23 3021

Size: DN15–DN300 (1/2"–12")
Grade: SS304, SS316L
Standard: ASME B16.9, DIN, SMS, ISO, 3A
Working Pressure: Up to 1.6 MPa
Test Pressure: 2.4 MPa (1.5× working pressure)
Temperature Range: -20°C to 200°C
PTFE seals: Suitable for hygienic & corrosive applications
Viton seals: Suitable for high temperature & harsh media

Quantity:

Contact Now

Recommend Products

Stainless steel pipe fitting reducing tri clamped tee

Size：DN10–DN150 (1/2"–6") Grade：SS304, SS316L Standard：DIN, SMS, 3A, ISO, RJT Working pressure: 0.6–1.6 MPa Test pressure: 1.5 × working pressure Temperature Range：-20℃ ~ +150℃ PTFE seals: Sanitary, corrosion-resistant, suitable for food & pharmaceutical applications Viton seals: High-temperature & aging-resistant, suitable for harsh hygienic conditions

JN-FT-23 1017-1
Stainless steel standard AS Hex Nut Equal Tee

Size：1/8"～4" (DN6～DN100), customizable reducing sizes Grade：SS304, SS316L Standard：ASME B16.11, DIN 2986, ISO Working pressure：1.6～10.0 MPa Test pressure：1.5 × working pressure Temperature Range：-20℃～+200℃ PTFE seals：Good corrosion resistance, hygienic, suitable for food, beverage and pharmaceutical applications Viton seals：High temperature resistance, oil resistance, aging resistance, suitable for harsh industrial conditions

JN-FT-23 4016
Stainless Steel Custom Polished Welded Plain Reducing Tee

Size：DN15-DN100 (1/2"-4"), customizable reducing specifications (e.g., DN50×DN32, DN80×DN50) Grade：SS304, SS316L (standard); carbon steel, alloy steel (optional) Standard：DIN, SMS, 3A, ISO, ASME B16.9 Working pressure: 1.6-4.0 MPa Test pressure: 1.5×working pressure Temperature Range：-20℃~200℃ PTFE seals: Food-grade, hygienic, corrosion-resistant, suitable for food, beverage and pharmaceutical pipelines Viton seals: High-temperature resistant, chemical-resistant, aging-resistant, suitable for harsh industrial working conditions

JN-FT-23 1015
Stainless Steel Industrial High Pressure Pull Short Welded Tee

Size：DN15–DN100 (1/2"–4") Grade：SS304 / SS316L Standard：DIN, SMS, 3A, ISO, ASME B16.9 Working pressure: 1.6–4.0 MPa Test pressure: 1.5 times of working pressure Temperature Range：-20℃ to +200℃ PTFE seals: Suitable for sanitary, corrosion-resistant, high-temperature applications Viton seals: Excellent resistance to high temperature, oil and chemical media

JN-FT-23 1014

Stainless Steel Reducing Welded Lateral Y type Tee

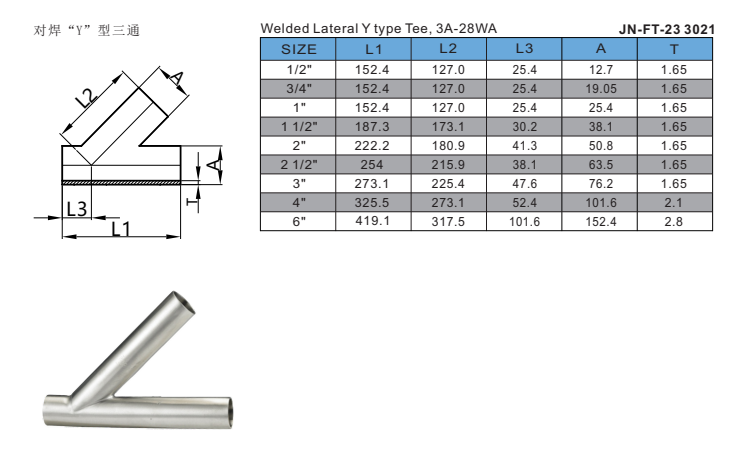

Welded Lateral Y type Tee is a special oblique three-way pipe fitting with a 45° lateral branch and welded connection, Sanitary tee widely used in 45 Degree sanitary, industrial, oil, chemical and food-grade pipelines. It is installed at oblique branching or diverging positionstosplit, divert or converge fluid smoothly with low turbulence and reduced pressure loss. Common types include equal welded lateral Y tee, reducing welded lateral Y tee, 304/316L stainless steel welded lateral Y tee, and high-pressure welded lateral Y tee, featuring strong welding integrity and stable flow performance.

Welded Lateral Y type Tee features a 45° oblique lateral branch for smooth flow diversion, while standard tees use a 90° T‑shape that creates high turbulence. Its welded connection ensures stronger integrity and zero leakage. Our products adoptCNC precision forming, full polishing, and high‑grade 304/316L stainless steel with strict pressure testing. Compared with others, our welded lateral Y tee provides lower pressure loss, better flow stability, higher durability, and cleaner hygienic performance, ideal for high‑demand industrial and sanitary pipelines.

Accessories

Components & Materials

Main body: 304 / 316L stainless steel
Welded ends: Seamless stainless steel pipe end
Gasket / Seal (optional): PTFE, EPDM, Viton

Parameters

Material: SS304, SS316L
Structure type: 45° lateral Y-type, welded connection, jacketed design available on request
Pressure rating: Working pressure up to 1.6 MPa; Test pressure 2.4 MPa
Function:Fluid diversion, branching, confluence, low-turbulence flow transfer
Grade: Sanitary grade, industrial grade, food grade, pharmaceutical grade
Standard compliance: ASME B16.9, DIN, SMS, ISO, 3A
Hygiene & safety level: Sanitary grade, Ra ≤ 0.8μm, meets food & beverage hygiene standards
Installation orientation: Suitable for horizontal and vertical installation
Customization: Custom sizes, branch angle, material, jacketed structure, sample service available

Stainless Steel Reducing Welded Lateral Y type Tee

Feature (F)、Advantage (A)、Benefit (B)

1. Material & Processing

F: Made of high-quality 304/316L stainless steel; full welded structure; CNC precision forming; internal & external full polishing; no dead legs or sharp corners.

A: High corrosion resistance, excellent structural strength, smooth flow path, stable and long-lasting performance.

B: Ensures hygienic fluid transfer, reduces residue accumulation, lowers maintenance cost, and extends service life.

2. 45° Lateral Y Structure

F: Unique 45° lateral Y-type design with oblique branch; smooth streamlined flow path; full welded connection for high integrity.

A: Minimizes flow turbulence, reduces pressure loss, improves flow efficiency, and avoids blockage or sediment.

B: Enhances pipeline system stability, saves energy, ensures continuous production, and fits high-purity applications.

3. Welded Connection & Sealing

F: Full circumferential welded ends; precision-machined welding surfaces; compatible with PTFE, EPDM, Viton seals.

A: Strong connection, zero leakage risk, high pressure resistance, reliable long-term sealing performance.

B: Eliminates leakage hazards, reduces downtime and repair cost, and ensures safe and stable operation.

4. Sanitary Grade & Surface Finish

F: Sanitary-grade polished surface with Ra ≤ 0.8μm; crevice-free design; compliant with 3A, DIN, SMS, ISO standards.

A: Easy to clean and sterilize (CIP/SIP), high hygiene level, suitable for food, beverage and pharmaceutical industries.

B: Meets strict international hygiene standards, guarantees product safety, and supports certified production.

5. Standard Compatibility & Customization

F: Conforms to global pipeline standards; customizable sizes, branch angles, wall thickness and materials; sample service available.

A: Wide compatibility, strong adaptability, suitable for various industrial and sanitary pipeline systems.

B: Simplifies installation and replacement, reduces matching cost, and supports personalized project solutions.

Stainless Steel Reducing Welded Lateral Y type Tee

Connection Method: Welded (butt weld)

Production & Processing Method: CNC precision machining, integral forming, bending, stamping

Surface Treatment: Mechanical polishing, electrolytic polishing, pickling and passivation

Raw Material Processing Method: Forging, plate forming, seamless pipe forming, precision casting

Operation Mode: Fixed pipeline installation, manual assembly only

Seal Material Options: PTFE, EPDM, Viton, Silicone

Sealing Method: Face sealing, end-face compression sealing, center sealing
