stainless steel High pressure Corrosion resistant PTFE flange tee

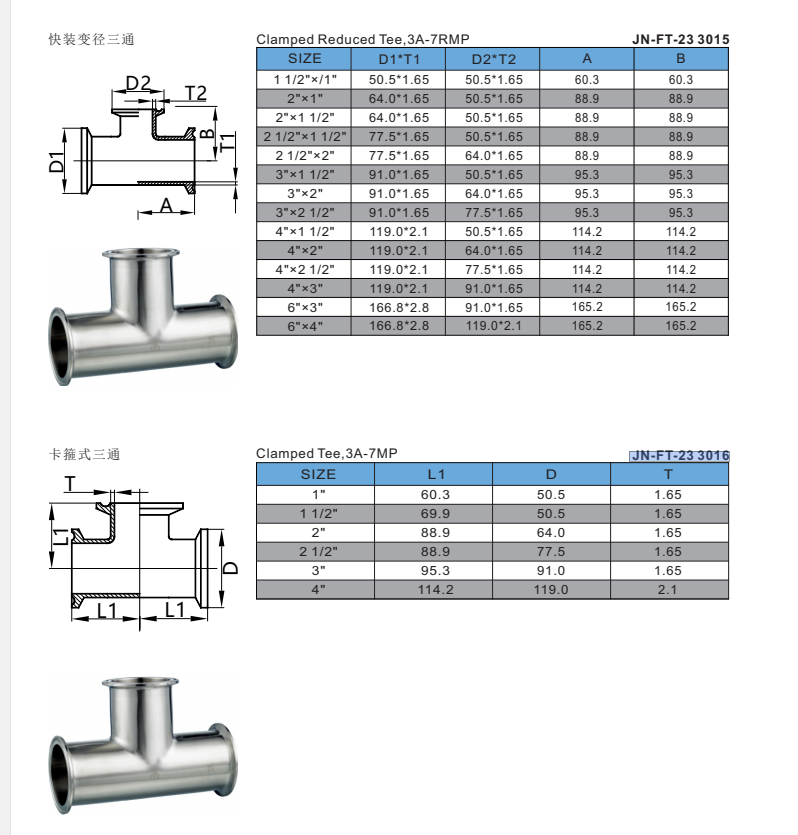

JN-FT-23 3016

Size: ½" – 24" (DN15 – DN600)
Grade: 304 / 316 / 316L Stainless Steel
Standard: ASME B16.5, DIN, JIS, GB
Working pressure: Up to 16 bar (232 PSI)
Test pressure: 24 bar (348 PSI)
Temperature Range: -20°C to 150°C (-4°F to 302°F)
PTFE seals: Included, offering superior chemical resistance and low friction
Viton seals: Optional, available for enhanced high-temperature performance

Quantity:

Contact Now

Recommend Products

Stainless steel High pressure Corrosion resistant PTFE flange tee

Aflange tee is a T‑shaped pipe fitting with flanged ends, used to form a branch connection in a pipeline. It is typically installed PTFE tee at intersections or diversion points of pipelines, allowing flow to split or combine between the main line and the branch. It is widely used in industrial, chemical, and fluid pipelines for reliable connection and easy maintenance. Common types include equal flange tee,reducing flange tee,stainless steel flange tee,andPTFE‑lined flange tee for corrosive service.

Flange tee is a type of tee fitting with integral flanged ends, while ordinary tees may use welded, threaded or quick-fit connections. The core difference lies in flange connection: stronger, leakproof and easy to install/dismantle. Our flange tee features premium stainless steel material, strict dimensional standard, full-pressure testing and durable sealing. We offer stable wall thickness, smooth lining, precise flange face and long service life, with better corrosion resistance and reliability than ordinary products, suitable for high-demand industrial pipelines.

Accessories

Components & Materials of Flange Tee

Main body: The main T-shaped structure, material includes stainless steel 304, 316, 316L, carbon steel, with optional PTFE lining.
Flange ends: Three connecting ends with flange face, material same as main body.
Sealing surface: Precision machined flange face, material same as main body.
Gasket (optional): PTFE, Viton, EPDM, graphite or spiral wound gasket.

Product Parameters

Material: Stainless steel 304, 316, 316L; carbon steel; PTFE lining available.
Structure type: Equal flange tee, reducing flange tee; jacketed and PTFE-lined structures optional.
Pressure rating: Class 150, Class 300, PN10, PN16, PN25; test pressure 1.5 times working pressure.
Temperature range: Standard -20°C to 150°C, varies with lining and sealing material.
Function: Pipeline flow branching, diverting, combining and direction changing.
Grade: Industrial grade, chemical grade, hygienic grade.
Standard compliance: ASME B16.5 (American), DIN (German), GB (Chinese), JIS (Japanese).
Hygiene & safety level: Hygienic grade with Ra ≤ 0.8μm, free of dead legs; compliant with pressure equipment safety standards.
Installation orientation: Horizontal installation, vertical installation, flexible layout.
Customization: Custom sizes, special lining, jacketed structure, custom pressure; sample service available.

Stainless steel High pressure Corrosion resistant PTFE flange tee

Feature (F)、Advantage (A)、Benefit (B)

F (Feature): Made of high-quality 304/316/316L stainless steel raw material; adopts integral forging processing technology and precision CNC machining for flange faces; equipped with high-precision molded PTFE/Viton sealing rings.

A (Advantage): Integral forging and precision machining ensure stable structure, no welding defects, precise flange size; high-performance sealing rings achieve excellent leak-proof effect.

B (Benefit): Reduces pipeline leakage risks, improves operation safety, and saves your maintenance cost and time.

F (Feature): Adopts integral flange structure (no separate flange welding); inner wall has optional PTFE lining and smooth polishing treatment (Ra ≤ 0.8μm for sanitary grade).

A (Advantage): Enhances connection firmness, avoids flange detachment, facilitates installation and dismantling; smooth lining and polishing prevent medium deposition, reduce fluid resistance, and are easy to clean.

B (Benefit): Suitable for high-demand scenarios such as chemical and food industries, ensures pipeline cleanliness, extends product service life, and reduces your equipment replacement cost.

F (Feature): Multiple structure designs available (equal/reducing flange tee, jacketed type); undergoes strict pressure testing (1.5 times working pressure); temperature resistance range is -20°C to 150°C.

A (Advantage): Diversified structures meet different pipeline branching and diverting needs; strict pressure and temperature resistance ensure stable operation under harsh working conditions.

B (Benefit): Reduces equipment failure rate, improves production efficiency, and avoids losses caused by equipment shutdown for your enterprise.

F (Feature): Flange face adopts RF/FF/MFM standard design; conforms to ASME B16.5, DIN, GB and other international standards; main body has uniform wall thickness and strong load-bearing capacity.

A (Advantage): Standardized flange design ensures perfect matching with existing pipeline systems; uniform wall thickness and strong load-bearing capacity improve product durability and corrosion resistance.

B (Benefit): Eliminates the need for custom adapters, reduces installation difficulty and cost; resists impact and corrosion, reduces replacement frequency, and saves your long-term procurement cost.

F (Feature): Customizable size (DN15-DN600), lining material and pressure rating; provides OEM/ODM service and sample customization; sealing ring adopts detachable design.

A (Advantage): Customizable solutions fully fit specific project needs; detachable sealing rings facilitate replacement; sample support helps verify product suitability in advance.

B (Benefit): Avoids the trouble of mismatched specifications, saves your trial cost and replacement time, improves project progress, and brings flexibility to your procurement and use.

Stainless steel sanitary three-way manual quick-install ball valve

Connection Method: Flange connection (RF/FF/MFM flange face)
Production & Processing Method: CNC precision machining, integral forging processing, non-welding forming
Surface Treatment Method: Polishing, electrolytic polishing, pickling and passivation
Raw Material Processing Method: Integral forging, casting (optional), pressing plate (for special specifications)
Usage Method: Manual installation (flange bolt fixing), no additional manual/pneumatic/electric operation required for the fitting itself
Sealing Ring Material Options: PTFE, Viton, EPDM, graphite, spiral wound gasket
Sealing Method: Center sealing, plane sealing (flange face), eccentric sealing (optional for special working conditions)
