Stainless Steel Butt Weld Clamp Pipe Reducing Tee

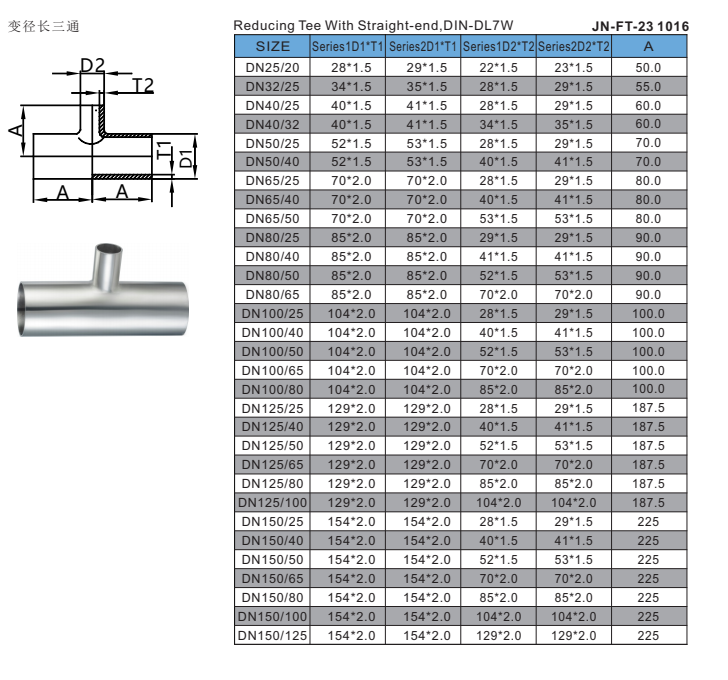

JN-FT-23 1016

Size: DN15–DN300 (1/2"–12")
Grade: SS304, SS316L, Carbon Steel (optional)
Standard: ASME B16.9, DIN, ISO, SMS, 3A
Working Pressure: Up to 1.6 MPa
Test Pressure: 2.4 MPa (1.5× working pressure)
Temperature Range: -20°C to 200°C
PTFE seals: Suitable for hygienic, corrosion-resistant applications
Viton seals: Suitable for high-temperature and harsh medium conditions

Quantity:

Contact Now

Download directory

Recommend Products

Stainless steel pipe fitting reducing tri clamped tee

Size：DN10–DN150 (1/2"–6") Grade：SS304, SS316L Standard：DIN, SMS, 3A, ISO, RJT Working pressure: 0.6–1.6 MPa Test pressure: 1.5 × working pressure Temperature Range：-20℃ ~ +150℃ PTFE seals: Sanitary, corrosion-resistant, suitable for food & pharmaceutical applications Viton seals: High-temperature & aging-resistant, suitable for harsh hygienic conditions

JN-FT-23 1017-1
Stainless steel standard AS Hex Nut Equal Tee

Size：1/8"～4" (DN6～DN100), customizable reducing sizes Grade：SS304, SS316L Standard：ASME B16.11, DIN 2986, ISO Working pressure：1.6～10.0 MPa Test pressure：1.5 × working pressure Temperature Range：-20℃～+200℃ PTFE seals：Good corrosion resistance, hygienic, suitable for food, beverage and pharmaceutical applications Viton seals：High temperature resistance, oil resistance, aging resistance, suitable for harsh industrial conditions

JN-FT-23 4016
Stainless Steel Custom Polished Welded Plain Reducing Tee

Size：DN15-DN100 (1/2"-4"), customizable reducing specifications (e.g., DN50×DN32, DN80×DN50) Grade：SS304, SS316L (standard); carbon steel, alloy steel (optional) Standard：DIN, SMS, 3A, ISO, ASME B16.9 Working pressure: 1.6-4.0 MPa Test pressure: 1.5×working pressure Temperature Range：-20℃~200℃ PTFE seals: Food-grade, hygienic, corrosion-resistant, suitable for food, beverage and pharmaceutical pipelines Viton seals: High-temperature resistant, chemical-resistant, aging-resistant, suitable for harsh industrial working conditions

JN-FT-23 1015
Stainless Steel Industrial High Pressure Pull Short Welded Tee

Size：DN15–DN100 (1/2"–4") Grade：SS304 / SS316L Standard：DIN, SMS, 3A, ISO, ASME B16.9 Working pressure: 1.6–4.0 MPa Test pressure: 1.5 times of working pressure Temperature Range：-20℃ to +200℃ PTFE seals: Suitable for sanitary, corrosion-resistant, high-temperature applications Viton seals: Excellent resistance to high temperature, oil and chemical media

JN-FT-23 1014

Stainless Steel Butt Weld Clamp Pipe Reducing Tee

Reducing Tee is a T-shaped pipe fitting with unequal branch and main pipe diameters, Weld Tee Clamp Tee designed for connecting three pipelines with different sizes. It is widely used in industrial, sanitary, oil, gas and fluid pipelines, installed at branching or diameter-changing positionstosplit, converge or reduce flow size smoothly. Common types include butt-welded reducing tee, clamped reducing tee, 304/316L stainless steel reducing tee, and high-pressure reducing tee, featuring stable connection, compact structure and strong adaptability.

Reducing Teefeaturesunequal inlet/outlet diameters for direct pipe size transition, while standard tees have uniform ports. It integrates branching and diameter reduction in one fitting, saving space and extra reducers. Our products adopt precision CNC forging, full polishing, and high-grade 304/316L stainless steel with strict pressure and dimensional control. Compared with general suppliers, our reducing tee provides tighter tolerances, smoother flow, higher pressure resistance, and longer service life, ensuring stable and leak-free performance in various pipeline systems.

Accessories

Components & Materials

Main body (main pipe + branch pipe): 304 / 316L stainless steel, carbon steel (optional)
Welded/clamped ends (if applicable): Same as main body material
Gasket/Seal (optional): PTFE, EPDM, Viton

Parameters

Material: SS304, SS316L, Carbon Steel; food-grade/chemical-grade materials available
Structure type: T-shaped reducing structure, butt-welded/clamped connection; jacketed type available on request
Pressure rating: Working pressure up to 1.6 MPa; Test pressure 2.4 MPa (1.5× working pressure)
Function:Pipeline branching, fluid diversion/confluence, and direct pipe diameter reduction (no extra reducer needed)
Grade: Sanitary grade, industrial grade, food grade, pharmaceutical grade, chemical grade
Standard compliance: ASME B16.9, DIN, SMS, ISO, 3A, GB standards
Hygiene & safety level: Sanitary grade (Ra ≤ 0.8μm), compliant with food, beverage and pharmaceutical safety standards; industrial grade meets pressure vessel safety requirements
Installation orientation: Suitable for both horizontal and vertical pipeline installation, no direction restriction
Customization:Customizable main/branch pipe sizes, wall thickness, material grade, connection type; jacketed structure and sample service available

Stainless Steel Butt Weld Clamp Pipe Reducing Tee

Feature (F)、Advantage (A)、Benefit (B)

1. Material & Processing

F: Made of high-quality 304/316L stainless steel; forged or CNC machined; full polished inner & outer surface; seamless structure with no dead legs.

A: High corrosion resistance, stable mechanical strength, smooth flow path, long service life.

B: Ensures clean fluid transfer, reduces residue, lowers maintenance, and extends pipeline service life.

2. Unequal Diameter Structure

F: Special T-shaped design with different main and branch diameters; integrated reducing and branching function; stable transition structure.

A: Combines branch connection and diameter change in one fitting, reduces pressure loss, simplifies pipeline layout.

B: Saves installation space, cuts down extra fittings, shortens assembly time, and lowers overall project cost.

3.Connection & Pressure Performance

F: Full welded or clamped end design; precise port matching; high-strength integral forming; strict pressure testing.

A: Excellent pressure resistance, no leakage, high structural stability, reliable under long-term operation.

B: Eliminates leakage risks, reduces downtime, ensures safe operation, and improves system reliability.

4.Sanitary & Surface Quality

F: Hygienic-grade finish with Ra ≤ 0.8μm; crevice-free design; compliant with 3A, DIN, SMS, ISO standards.

A: Easy to clean and sterilize (CIP/SIP), high hygiene level, suitable for food, beverage, pharmaceutical use.

B: Meets strict sanitary requirements, guarantees product safety, and supports certified production.

5. Standard Compatibility & Customization

F: Conforms to ASME B16.9, DIN, ISO and global standards; customizable sizes, materials, ends and wall thickness.

A: Wide compatibility, strong adaptability, suitable for various industrial and sanitary pipeline systems.

B: Simplifies installation and replacement, reduces matching cost, and supports customized project solutions.

Stainless Steel Butt Weld Clamp Pipe Reducing Tee

Connection Method: Butt-welded, clamped, socket weld

Production & Processing Method: CNC precision machining, forging, seamless forming, stamping

Surface Treatment: Mechanical polishing, electrolytic polishing, pickling and passivation

Raw Material Processing Method: Forging, casting, plate forming, seamless pipe processing

Operation Mode: Fixed pipeline installation, manual assembly only

Seal Material Options: PTFE, EPDM, Viton, Silicone

Sealing Method: Face sealing, end-face compression sealing, center sealing
