SS304/316 Sanitary Thread Divert Manufacturer Plug Valve

JN-PV-23 1005
Size：1/2" - 4" (DN15 - DN100)
Grade：304/316L Stainless Steel (sanitary grade)
Standard：SMS, 3A, DIN, ISO
Working pressure: 0 - 1.6 MPa
Test pressure: 2.4 MPa
Temperature Range：-20℃ - 150℃
seals: PTFE, EPDM, Silicone (food-grade)
Quantity:
Contact Now
SS304/316 Sanitary Thread Divert Manufacturer Plug Valve

OurSS304/316 Sanitary Thread Divert Manufacturer Plug Valve is a sanitary-grade Thread Valve Sanitary Valve diversion control plug valve, specially applied to the branch and main pipe connection position of food, pharmaceutical and beverage sanitary fluid pipelines. It is mainly used for on-off control and directional diversion of pure fluid, slurry and low-viscosity medium in pipelines, with integrated thread connection, straight-through and three-way diversion types to meet different pipeline layout and medium diversion needs of sanitary industry production lines.

OurSS304/316 Sanitary Thread Divert Manufacturer Plug Valve is essentially different from ordinary plug valves in material selection and structural design: it adopts 100% sanitary-grade stainless steel for the whole body instead of ordinary industrial steel, and the inner cavity is fully polished without dead angle, avoiding medium residue. Compared with other manufacturers' products, our valve has a one-piece forging valve body and precision-machined plug core, with better sealing performance and longer service life, and the thread interface is customized for sanitary scenarios to fit standard sanitary pipeline connections perfectly.


Accessories

 Component & Material Table
  • Valve Body & Plug Core：304/316L Stainless Steel (sanitary-grade forging, integral molding without welding seam)
  • Sealing Gasket：PTFE/EPDM/Silicone (food-grade, high temperature and corrosion resistance)
  • Manual Handle：304 Stainless Steel (ergonomic design, detachable)
  • Quick-clamp Fitting：304/316L Stainless Steel (polished finish)
  • Valve Stem：304/316L Stainless Steel (polished, anti-rust and wear-resistant)
Product Parameter Details
  • Material：All wetted parts are food-grade 304/316L stainless steel + food-grade elastic sealing materials, non-toxic and odorless
  • Structure Form：Integral forging structure, no dead angle in inner cavity, thread connection, straight-through/three-way diversion optional
  • Pressure Rating：Working pressure 0-1.6MPa, test pressure 2.4MPa, stable pressure resistance without leakage
  • Function：Dual function of medium on-off and directional diversion, quick switch and accurate diversion
  • Grade Classification：Sanitary grade (meets food, pharmaceutical GMP standard), no industrial grade optional
  • Specification Match：SMS/3A/DIN/ISO international sanitary standards, compatible with standard sanitary thread pipelines
  • Certification Grade：Hygiene certification: 3A, FDA; Safety certification: CE, ISO 9001
  • Installation Direction：Horizontal/vertical optional, no limitation on medium flow direction during installation
  • Customization Service：Customizable size (1/2"-4"), sealing material, handle type, sample customization supported for small batch demand
SS304/316 Sanitary Thread Divert Manufacturer Plug Valve

Feature (F)、Advantage (A)、Benefit (B)
  1. Sanitary Forging Body:
  • F: Adopts 304/316L sanitary-grade forging valve body with integral molding process, inner cavity mirror polishing (Ra≤0.8μm) without dead angle
  • A:Realizes zero medium residue in the valve cavity, strong corrosion resistance, meets GMP sterile production requirements, and is easy to clean and sterilize
  • B: Reduces the risk of medium contamination in food and pharmaceutical production, simplifies the pipeline cleaning process, and avoids production losses caused by unqualified products due to contamination
  1. High-precision Sealing:
  • F: Equipped with food-grade multi-material sealing ring (PTFE/EPDM/Silicone) and precision-machined plug core, with concentric sealing structure
  • A: Achieves high-precision sealing, no medium leakage under 1.6MPa working pressure, and the sealing ring is resistant to high temperature and aging
  • B: Ensures the tightness of the fluid pipeline, prevents medium loss and environmental pollution, and reduces the frequency of sealing ring replacement, saving maintenance costs
  1. Standard Thread Interface:
  • F: Integral sanitary thread interface with precision thread processing, matching international SMS/3A/DIN standards
  • A:Realizes quick and tight connection with sanitary pipelines, no additional sealing parts needed, good concentricity after installation, no medium accumulation at the interface
  • B: Shortens the pipeline installation and disassembly time, improves the efficiency of production line maintenance, and avoids secondary pollution caused by poor interface sealing
  1. Flexible Diversion Design:
  • F: Dual-structure diversion design (straight-through/three-way) and detachable stainless steel ergonomic handle
  • A: Meets the diversion needs of different pipeline layouts, the handle can be rotated 90° for quick on-off, detachable design is convenient for sterilization and storage
  • B:Realizes flexible adjustment of the production line fluid direction, simple and easy operation for workers, and adapts to the sterile operation requirements of the workshop
  1. Wide Adaptability:
  • F:Full stainless steel wetted parts + wide temperature and pressure adaptability design, applicable to -20℃-150℃ temperature range
  • A:No rust and corrosion in long-term use, stable performance under different temperature and pressure working conditions, compatible with most food and pharmaceutical media
  • B:Expands the application scope of the valve in different production processes, reduces the need for replacing different valves for different processes, and lowers the overall procurement cost of the production line

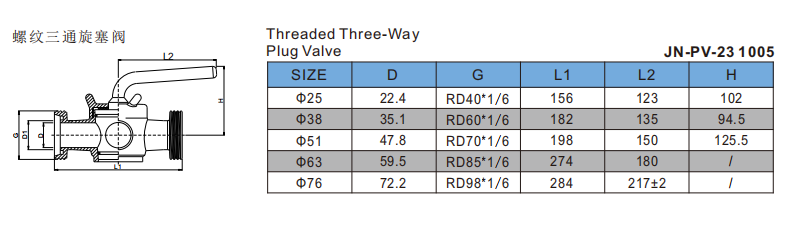

SS304/316 Sanitary Thread Divert Manufacturer Plug Valve

Interface Mode：Sanitary male/female thread (SMS/3A/DIN/ISO standard)
Production & Processing Method：CNC precision machining, integral forging forming, mirror polishing
Surface Treatment：Inner cavity mirror polishing (Ra≤0.8μm), outer surface electrolytic polishing/passivation
Raw Material Processing Method：Sanitary-grade stainless steel forging (no casting, integral molding)
Operation Mode：Manual (ergonomic stainless steel handle), pneumatic/electric customization supported
Seal Ring Material Options：Food-grade PTFE, food-grade EPDM, food-grade Silicone
Sealing Method：Central concentric sealing (plug core and valve body precise fit, sealing ring compression sealing)
