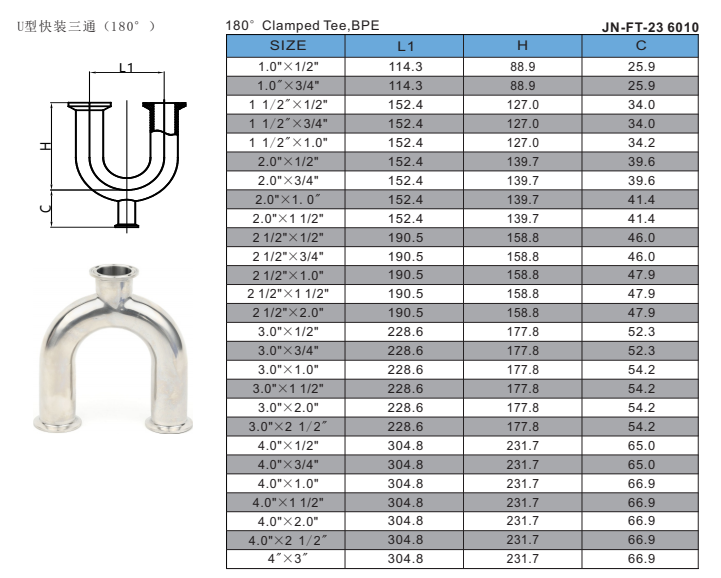

Stainless steel Sanitary reducing Welded 180° clamped tee

JN-FT-23 6010

Size: ½" – 12" (DN15 – DN300)
Grade: 304 / 316 / 316L Stainless Steel, Brass (optional)
Standard: ASME B16.5, DIN 32676, GB/T 12459, ISOWorking pressure: Up to 16 bar (232 PSI)
Test pressure: 24 bar (348 PSI) (1.5 times the working pressure)
Temperature Range: -20°C to 150°C (-4°F to 302°F)
PTFE seals: Included, providing excellent chemical resistance and leak-proof performance
Viton seals: Optional, available for enhanced high-temperature and corrosion resistance

Quantity:

Contact Now

Recommend Products

Stainless steel Sanitary reducing Welded 180° clamped tee

180°Clamped Tee is a U-shaped pipe fitting with three clamped ends for quick installation. It is mainly used in U-type tee sanitary, food, beverage, pharmaceutical and industrial pipelines, installed at turning, diverting or looping positions. It is designed to change flow direction by 180°, connect branch lines or form circulation loops for smooth fluid transfer. Common types include equal 180°clamped tee,reducing 180°clamped tee,sanitary polished 180°clamped teeandhigh-pressure 180°clamped tee, all with stable structure and strong sealing.

180°Clamped Tee is a U-shaped 180° flow reversing fitting with quick-clamp connections, while ordinary tees are T-shaped for straight branching. The key difference lies in its 180° directional return functionandtool-free quick installation. Our products feature precision CNC machining, sanitary polished finish, high-strength 316L stainless steel, and tight, durable sealing.Compared with others, ours offers more stable pressure resistance, higher dimensional accuracy, smoother internal finish, and longer service life, ensuring safer and more efficient operation in hygienic and industrial pipelines.

Accessories

Components & Materials of 180° Clamped Tee

Main body: 304 / 316 / 316L stainless steel
Clamped ends: Stainless steel, matched with standard ferrules
Gasket / Seal: PTFE, EPDM, Viton (according to application)
Clamp: Stainless steel quick clamp (for connection)

Product Parameters

Material: 304, 316, 316L stainless steel
Structure type: 180° U-type clamped structure, jacketed type available on request
Pressure rating: Working pressure up to 1.6MPa; test pressure 1.5 times working pressure
Function: 180° flow reversal, pipeline loop connection, diversion and convergence
Grade:Sanitary grade, industrial grade, food grade, pharmaceutical grade
Standard compliance: DIN, SMS, ISO, 3A, RJT, BS
Hygiene & safety level: Sanitary grade with internal polished finish, compliant with food contact and hygienic standards
Installation orientation: Suitable for horizontal and vertical installation
Customization: Custom sizes, special lengths, jacketed structure, material options, sample service available

Stainless steel Sanitary reducing Welded 180° clamped tee

Feature (F)、Advantage (A)、Benefit (B)

1. Material & Processing Performance

F: Made of 304/316L stainless steel; CNC machined; full internal & external polishing; integrally formed without dead legs; equipped with PTFE/Viton seals.

A: High corrosion resistance, smooth surface, no fluid accumulation, excellent sealing performance, stable structure.

B: Ensures hygienic and safe conveying, reduces leakage risk, lowers maintenance frequency, and extends service life.

2. 180° Structure & Quick Clamp Design

F: Standard clamped ends for universal interchangeability; customizable size, length and sealing material.

A: High compatibility with most sanitary pipelines; flexible to match different working conditions.

B: Avoids matching problems, reduces additional accessories cost, and supports personalized project solutions.

3. Structural Strength & Pressure Resistance

F: Sanitary grade with Ra ≤ 0.8μm internal finish; compliant with DIN, SMS, 3A, ISO standards; no gaps or dead zones.

A: Easy to clean and sterilize (CIP/SIP); fully meets hygienic industry requirements.

B: Guarantees product safety for food, beverage and pharmaceutical use, and complies with strict industry certifications.

4. Sanitary Grade & Cleanability

F: Integral forming process, uniform wall thickness, high strength, strict pressure testing, stable mechanical performance.

A: Strong pressure resistance, no deformation, high durability, low failure rate under long-term operation.

B: Reduces downtime and replacement costs, improves system stability, and ensures continuous production.

5. Standard Compatibility & Customization

F: 180° U-shaped structure with three clamped ends; quick-clamp connection design; no welding or extra tools required.

A: Enables 180° flow reversal and loop connection; fast installation and disassembly; high on-site adaptability.

B: Saves installation time and labor cost, improves construction efficiency, and meets special pipeline layout needs.

Stainless steel Sanitary reducing Welded 180° clamped tee

Connection Method: Clamped connection
Production & Processing Method: CNC machining, bending, precision cutting, integral forming
Surface Treatment: Mechanical polishing, electrolytic polishing, pickling and passivation
Raw Material Processing Method: Forging, casting, plate forming, stamping
Operation Mode: Manual installation and disassembly
Seal Material Options: PTFE, EPDM, Viton, Silicone
Sealing Method: Center sealing, face sealing, end compression sealing
