Stainless steel Sanitary Hygienic SS316 Tri Clamped Cross

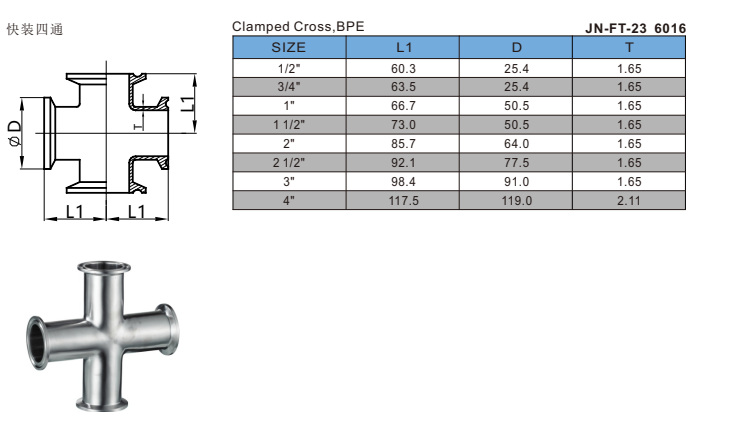

JN-FT-23 6016-1
Size：DN10–DN150 (1/2"–6")
Grade：SS304, SS316L
Standard：DIN, SMS, 3A, ISO, RJT
Working pressure: 0.6–1.6 MPa
Test pressure: 1.5 × working pressure
Temperature Range：-20℃ ~ +150℃
PTFE seals: Sanitary, non-toxic, corrosion-resistant, non-stick, easy to clean, perfectly suitable for food, beverage and pharmaceutical pipeline applications.
Viton seals: High-temperature resistant, anti-aging, oil-resistant and chemical-resistant, applicable to harsh hygienic working environments with strict requirements.
Quantity:
Contact Now
Download directory
Stainless steel Sanitary Hygienic SS316 Tri Clamped Cross

Clamped Cross is a sanitary four-way pipe fittingwithquick-clamp connection, Equal Cross featuring smooth, crevice‑free  SS304 Cross interior for high hygiene standards. It is mainly installed at four-way branching points in food, beverage, pharmaceutical and cosmetic pipelines, used forfour-direction fluid diversion, confluence and distribution. It allows fast installation and CIP/SIP cleaning. Types include equal clamped crossandreducing clamped crossto adapt to different pipeline sizes and layouts.

Clamped Crossadoptsquick‑clamp connection instead of welding or threading, enabling tool‑free fast installation and disassembly. It features a hygienic, crevice‑free inner surfacethat ordinary crosses lack, ideal for food, beverage and pharmaceutical use. Our products use forged SS304/316L,mirror polishing (Ra≤0.8μm), and precision clamping structure. Compared with others, we providehigher hygiene, better sealing, longer service life and easier maintenance, ensuring safer and more stable pipeline operation.


Accessories

 Component & Material Table
  • Main cross body: SS304, SS316L
  • Clamp ferrules: SS304, SS316L
  • Gaskets:PTFE, EPDM, Viton (FKM)
Product Parameter Details
  • Material: SS304, SS316L
  • Structure:Four-way cross, clamped quick connection, equal/reducing type; jacketed structure available on request
  • Pressure: Working pressure 0.6–1.6 MPa; Test pressure 1.5 × working pressure
  • Temperature Range: -20℃ ~ +150℃
  • Function:Four-direction flow diversion, confluence and distribution
  • Grade:Sanitary grade, food grade, pharmaceutical grade
  • Standard: DIN, SMS, 3A, ISO, RJT
  • Hygiene & Safety Level: Sanitary level (Ra ≤ 0.8μm), FDA/3A compliant
  • Installation:Suitable for horizontal and vertical installation
  • Customization:Custom size, reducing ratio, material, surface finish; samples available
