Stainless Steel DIN Industrial Pipe Reducing Flanged Cross

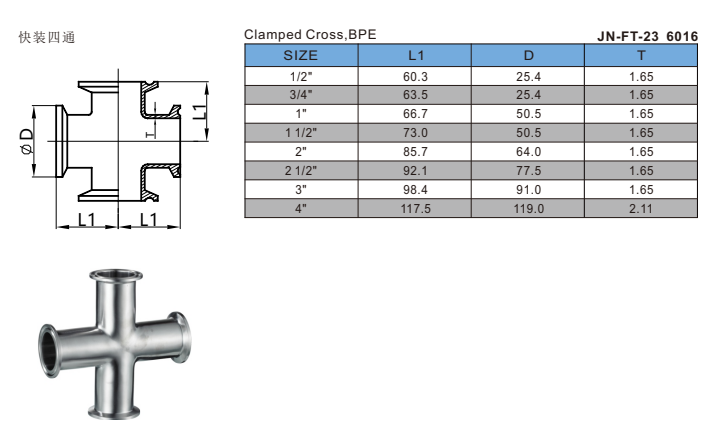

JN-FT-23 6016
Size：DN15–DN600 (1/2"–24")
Grade：SS304, SS316L, WCB
Standard：ASME B16.5, DIN, GB, ISO
Working pressure: 1.6–10.0 MPa
Test pressure: 1.5 × working pressure
Temperature Range：-20℃ ~ +450℃
PTFE seals: Corrosion-resistant, non-stick, suitable for general medium
Viton seals: High-temperature resistant, oil-resistant, suitable for harsh industrial conditions
Quantity:
Contact Now
Stainless Steel DIN Industrial Pipe Reducing Flanged Cross

Flanged Cross is a four-way flange‑connected pipe fitting with a stable flange structure, mainly installed at thefour-way intersection Reducing Cross of industrial pipelines. It is  Equal Cross used for four-direction fluid diversion, confluence and distribution in petroleum, chemical, water supply and heavy industrial systems. It DIN Cross features high strength and strong pressure resistance. Types include equal flanged crossandreducing flanged cross to meet different pipe diameter and working condition requirements.

Flanged Crossadoptsflange connection with high strength and strong pressure resistance, which is more stable and reliable than ordinary welded or threaded crosses. It is easy to install and maintain, especially suitable for large‑diameter and high‑pressure industrial pipelines. Our products useforged high‑quality steel,precision CNC machiningandstrict pressure testing. Compared with other suppliers, we providehigher pressure rating, better sealing performance, longer service life and more stable quality, effectively reducing pipeline leakage and failure risks.


Accessories

 Component & Material Table
  • Main body: SS304, SS316L, WCB, Alloy Steel
  • Flanges:SS304, SS316L, WCB (same as body)
  • Gaskets: PTFE, Viton (FKM), EPDM, Graphite
  • Bolts & Nuts: Carbon steel, SS304, SS316L
Product Parameter Details
  • Material: SS304, SS316L, WCB, Alloy Steel
  • Structure:Four-way cross, integral/flanged connection; equal or reducing type; jacketed type available on request
  • Pressure: Working pressure 1.6–10.0 MPa; Test pressure 1.5 × working pressure
  • Temperature Range: -20℃ ~ 450℃
  • Function:Four-direction flow distribution, diversion, confluence
  • Grade: Industrial grade, chemical grade, petroleum grade
  • Standard: ASME B16.5, DIN, GB, ISO
  • Hygiene & Safety Level: Standard industrial safety level
  • Installation: Suitable for horizontal and vertical installation
  • Customization:Custom size, pressure, material, ends; sample service available
