stainless steel food grade pipe fitting Clamped Cross

JN-FT-23 3029
Size：DN10–DN150 (1/2"–6")
Grade：SS304, SS316L
Standard：DIN, SMS, 3A, ISO, RJT
Working pressure: 0.6–1.6 MPa
Test pressure: 1.5 × working pressure
Temperature Range：-20℃ ~ +150℃
PTFE seals: Sanitary, non-toxic, corrosion-resistant, suitable for food & pharmaceutical applications
Viton seals: High-temperature resistant, anti-aging, suitable for harsh hygienic working conditions
Quantity:
Contact Now
Download directory

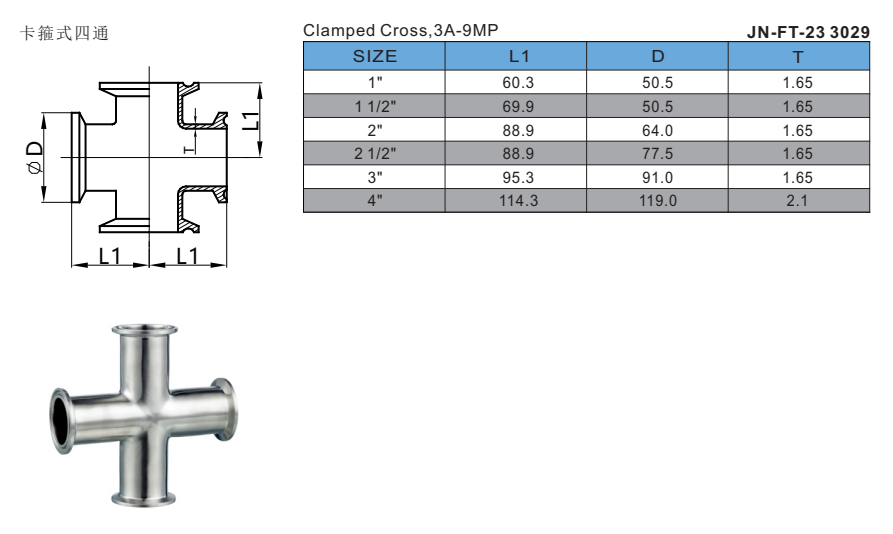

stainless steel food grade pipe fitting Clamped Cross

Clamped Cross is a sanitary four-way pipe fittingwithquick-clamp connection, designed for cross fitting hygienic pipeline systems. It is industrial cross mainly clamped pipe installed at thefour-way intersection of pipelines to realize four-direction fluid diversion, confluence and distribution.Widely used in food, beverage, pharmaceutical and cosmetic industries, it features smooth, crevice-free flow and easy disassembly. Types include equal clamped crossandreducing clamped cross to meet different pipeline size and layout requirements.

Clamped Crossfeaturesquick-clamp connection instead of welding or threading, enabling tool-free fast assembly and disassembly, ideal for hygienic use. Unlike ordinary crosses, it has a smooth, crevice-free interior for easy cleaning. Our products use forged SS304/SS316L,mirror polishing (Ra≤0.8μm),andprecision clamping structure. Compared with others, we offerhigher hygiene level, better sealing, longer service life, and easier maintenance, ensuring safer and more efficient pipeline operation.


Accessories



Components & Materials

  • Main cross body: SS304, SS316L
  • Clamp ferrules: SS304, SS316L
  • Gaskets: PTFE, EPDM, Viton (FKM)

Parameters

  • Material: SS304, SS316L
  • Structure: Four-way cross shape, clamped connection, equal / reducing type; jacketed structure available on request
  • Pressure:Working pressure 0.6–1.6 MPa; Test pressure 1.5 × working pressure
  • Temperature Range: -20℃ ~ +150℃
  • Function: Four-direction flow diversion, confluence, pipeline branching and distribution
  • Grade: Sanitary grade, food grade, pharmaceutical grade
  • Standard: DIN, SMS, 3A, ISO, RJT
  • Hygiene & Safety Level: Sanitary level (Ra ≤ 0.8μm), FDA / 3A compliant
  • Installation:Suitable for horizontal and vertical installation
  • Customization: Custom size, reducing ratio, surface finish, material; sample service available
