Stainless Steel Hygienic Welded Constant Pressure Regulating CPM valve

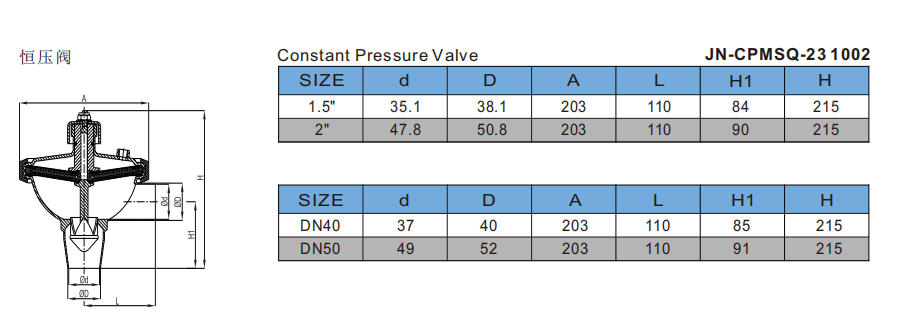

JN-CPMSQ-23 1002
Size: 1/2" – 4" (DN15 – DN100)
Material Grade: 304 / 316L (hygienic‑grade)
Compliant Standards: 3A, SMS, DIN, ISO, FDA, GMP
Operating Pressure: 0 – 1.6 MPa
Test Pressure: 2.4 MPa
Temperature Range: -20℃ to 150℃
Seal Options: Food‑grade PTFE, EPDM, Silicone
Quantity:
Contact Now
Stainless Steel Hygienic Welded Constant Pressure Regulating CPM valve

OurStainless Steel Hygienic Welded Constant Pressure Regulating CPM Valve is a professional pressure‑maintaining CPM valve Constant Pressure valve  with hygienic Regulating valve welded connection, widely used in clean fluid pipelines that require stable pressure control. It is mainly installed in feeding systems, filling lines and transfer pipelines to automatically adjust and maintain constant pressure, ensuring stable flow of media such as beverages, milk, syrup and pharmaceutical liquids. The welded structure eliminates gaps and leakage risks, providing safe and stable control for high‑standard hygienic production.

OurStainless Steel Hygienic Welded Constant Pressure Regulating CPM Valve is a professional grade control valve designed specifically for pressure‑stable hygienic systems, making it very different from ordinary on‑off sanitary valves. It integrates precision pressure regulation function while maintaining full hygiene structure, with welded connection instead of traditional clamp or thread to avoid dead zones and potential leakage. The internal pressure‑sensing mechanism ensures stable output pressure under fluctuating inlet conditions, protecting pipelines and equipment. Compared with similar products, our valve features more accurate pressure control, stronger stability, better cleanability and higher durability. It is fully compliant with 3A, FDA and GMP standards, making it ideal for food, dairy, beverage and pharmaceutical processing lines requiring consistent pressure and high hygiene levels.


Accessories

 Component & Material Table
  • Valve Body & Core：304/316L Stainless Steel (hygienic forging, precision machined)
  • Seals：PTFE, EPDM, Silicone (food‑grade, high‑temperature, long‑life)
  • Pressure Adjustment Module：SS304 (stable regulation, anti‑fatigue)
  • Weld Ends：304/316L Stainless Steel (hygienic welded connection)
Product Parameter Details
  • Material：Full stainless steel wetted parts, hygienic certified, non-toxic
  • Structure Form：Welded ends, constant pressure regulation module, no dead angles
  • Pressure Rating：Working 0–1.6 MPa, test 2.4 MPa, stable regulation
  • Function：Constant pressure control, flow stabilization, pipeline protection
  • Grade Classification：Hygienic grade, suitable for food, dairy, beverage, pharma
  • Standard：3A, SMS, DIN, ISO compliant
  • Hygiene：Crevice-free, mirror polished, CIP/SIP suitable
  • Installation Direction：Horizontal / vertical mounting available
  • Customization Service：Pressure range, size, seal, actuation can be customized
Stainless Steel Hygienic Welded Constant Pressure Regulating CPM valve

Feature (F)、Advantage (A)、Benefit (B)
  1. Constant Pressure Control:
  • F: Built‑in precision pressure regulation module
  • A:Automatically maintains stable output pressure
  • B: Protects pipelines and equipment, ensures production stability
  1. Hygienic Welded Design:
  • F: Full welded connection without gaps or dead zones
  • A: Eliminates leakage risk, easy to clean and sterilize
  • B: Meets ultra‑high hygiene standards, reduces contamination risk
  1. Stable Regulation:
  • F: Optimized internal structure for smooth pressure adjustment
  • A:No sudden fluctuation, low noise, long service life
  • B: Improves product consistency and process reliability
  1. Sanitary Flow Path:
  • F: Crevice‑free mirror polishing (Ra≤0.8μm)
  • A: No residue buildup, compatible with CIP/SIP
  • B:Guarantees media purity and product safety
  1. Durable Construction:
  • F:304/316L full stainless steel structure
  • A:High corrosion & fatigue resistance, stable in long run
  • B:Lowers maintenance cost and extends service life

Stainless Steel Hygienic Welded Constant Pressure Regulating CPM valve

Interface Mode：Hygienic welded connection (3A/SMS/DIN/ISO)
Production & Processing Method：CNC machining, integral forging, mirror polishing
Surface Treatment：Internal mirror polish, external electro‑polish / passivation
Raw Material： Forged 304/316L stainless steel
Operation Mode：Manual / automatic pressure regulation
Seal Ring Material Options：Food-grade PTFE, EPDM, Silicone
Sealing Method：Precision compression sealing, zero leakage
