SS304 Sanitary Tri-Clamp Laval Lafa Type CPM valve

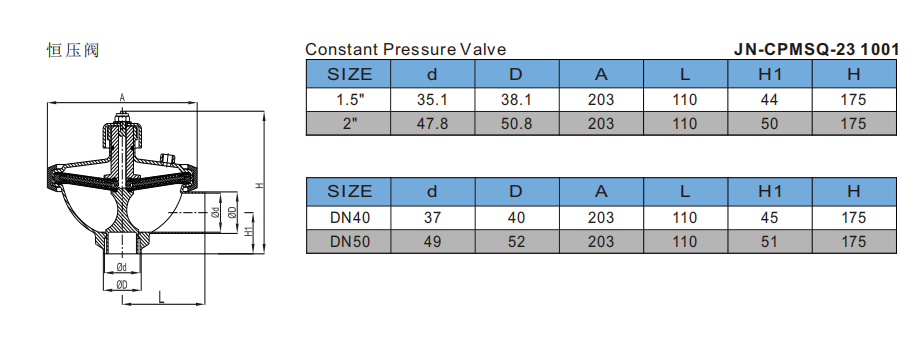

JN-CPMSQ-23 1001
Size: 1/2" – 4" (DN15 – DN100)
Material Grade: SS304 (sanitary-grade)
Compliant Standards: 3A, SMS, DIN, ISO, FDA, GMP
Operating Pressure: 0 – 1.6 MPa
Test Pressure: 2.4 MPa
Temperature Range: -20℃ to 150℃
Seal Options: Food‑grade PTFE, EPDM, Silicone
Quantity:
Contact Now
SS304 Sanitary Tri-Clamp Laval Lafa Type CPM valve

OurSS304 Sanitary Tri-Clamp Laval Lafa Type CPM Valve is a specialized sanitary CPM valve with SS304 valve Constant Pressure Valve standard tri‑clamp connection, mainly installed at key control points of hygienic fluid pipelines. It provides stable on‑off, diversion and backflow prevention for clean media such as beverages, milk, syrup and pharmaceutical fluids. With its unique Laval Lafa structure, it ensures smooth flow, low resistance and reliable performance in continuous hygienic production.

OurSS304 Sanitary Tri-Clamp Laval Lafa Type CPM Valve stands out from ordinary sanitary valves with its dedicated Laval Lafa structure and optimized flow design. Unlike standard ball or plug valves, it features a specially shaped flow channel that reduces turbulence and media adhesion, making it ideal for high‑level hygienic applications. The full SS304 stainless steel body and crevice‑free interior effectively prevent residue and bacterial growth. Compared with similar products, our valve offers tighter sealing, more stable performance, easier disassembly and better compatibility with CIP/SIP cleaning systems. Its tri‑clamp connection allows fast installation and replacement, greatly improving production line efficiency while meeting strict 3A, FDA and GMP hygiene requirements.


Accessories

 Component & Material Table
  • Valve Body & Core Parts：SS304 Stainless Steel (sanitary forging, smooth interior, no dead angles)
  • Valve Seat & Seal Ring：PTFE, EPDM, Silicone (food‑grade, high‑temperature, long‑life)
  • Manual Handle：SS304 Stainless Steel (ergonomic, manual operation, detachable)
  • Tri-Clamp Ends：SS304 Stainless Steel (standard hygienic connection, quick assembly)
  • Valve Stem：SS304 Stainless Steel (precision machined, corrosion‑resistant)
Product Parameter Details
  • Material：Full SS304 wetted parts, sanitary-grade, non-toxic, easy cleaning
  • Structure Form：Laval Lafa type flow channel, integrated body, tri-clamp connection
  • Pressure Rating：Working 0–1.6 MPa, test 2.4 MPa, stable and reliable
  • Function：Flow control, on-off, anti-turbulence, low-resistance transmission
  • Grade Classification：Sanitary grade, suitable for food, dairy, beverage and pharma
  • Specification Match：3A, SMS, DIN, ISO compatible
  • Certification Grade：Crevice-free, polished interior, CIP/SIP suitable
  • Installation Direction：Horizontal / vertical mounting allowed
  • Customization Service：Sizes, seals, actuation can be customized
SS304 Sanitary Tri-Clamp Laval Lafa Type CPM valve

Feature (F)、Advantage (A)、Benefit (B)
  1. Special Structure:
  • F: Unique Laval Lafa type flow channel for low-turbulence transmission
  • A:Reduces flow resistance and media adhesion, stable running
  • B: Ensures fluid integrity, improves production stability
  1. Tri-Clamp Quick Connect:
  • F: Standard sanitary tri-clamp connection for tool-free assembly
  • A: Fast installation and disassembly, good concentricity
  • B: Shortens maintenance time, improves line efficiency
  1. Sanitary Flow Path:
  • F: Crevice-free polished interior, no dead zones or residue
  • A:Easy to clean and sterilize, meets high hygiene demands
  • B: Lowers bacteria risk, ensures product safety
  1. Stable Sealing:
  • F: Precision core matching with food-grade sealing components
  • A: Long-term tight sealing, no leakage
  • B:Prevents media loss and cross-contamination
  1. Durable Build:
  • F:Full SS304 stainless steel construction, sanitary forging
  • A:Strong corrosion resistance, long service life
  • B:Reduces replacement cost and downtime

SS304 Sanitary Tri-Clamp Laval Lafa Type CPM valve

Interface Mode：Sanitary tri-clamp (3A/SMS/DIN/ISO)
Production & Processing Method：CNC machining, integral forging, surface polishing
Surface Treatment：Internal mirror polish, external electro-polish / passivation
Raw Material Processing Method：Forged SS304 stainless steel
Operation Mode：Manual (standard), pneumatic/electric actuation available
Seal Ring Material Options：Food-grade PTFE, EPDM, Silicone
Sealing Method：Precision compression sealing, zero leakage in hygienic use
