Stainless Steel Thread Food Grade Dairy Sampling Valve

JN-SPV1009
Size: DN6 – DN15
Material Grade: 304 / 316L (food-grade)
Compliant Standards: 3A, SMS, DIN, ISO, FDA, GMP
Operating Pressure: 0 – 1.0 MPa
Test Pressure: 1.5 MPa
Temperature Range: -10℃ to 80℃
Seal Options: Food-grade EPDM, Silicone, PTFE
Quantity:
Contact Now
Recommend Products
Stainless Steel Thread Food Grade Dairy Sampling Valve

OurStainless Steel Thread Food Grade Dairy Sampling Valve is a compact hygienic sampling valve with precision threaded connection, mainly installed on small dairy and food processing pipelines for medium testing and sample collection. It provides closed, clean and non-polluting sampling for milk, whey, yogurt, beverage and other edible media. The thread structure allows tool-free installation and removal, making it widely used in small-scale production lines and laboratory sampling points. Stainless Steel Valve

OurStainless Steel Thread Food Grade Dairy Sampling Valve is specially developed for dairy and food applications, which clearly distinguishes it from standard industrial sampling valves. It adopts a fully enclosed hygienic structure to avoid direct contact between samples and the outside environment, effectively preventing bacterial contamination and ensuring sample authenticity. All wetted parts use food-grade 304/316L stainless steel with crevice-free mirror polishing, specially optimized for dairy media such as milk and whey to prevent residue and adhesion. Compared with other products, our valve provides tighter sealing, simpler operation, stronger corrosion resistance and better compatibility with CIP cleaning systems. The standard threaded connection makes installation and maintenance more convenient, fully complying with 3A, FDA and GMP standards, making it an ideal choice for safe sampling in dairy and food processing. Thread Valve


Accessories

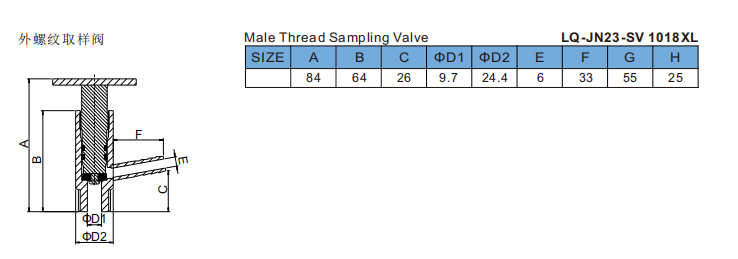

 Component & Material Table
  • Valve Body & Sampling Core：304/316L Stainless Steel (food-grade forging, mirror polished)
  • Sealing Parts：EPDM, Silicone, PTFE (food-grade, high-temperature, long-life)
  • Thread Ends：304/316L Stainless Steel (precision hygienic thread)
  • Sampling Nozzle：304 Stainless Steel (smooth, crevice-free, easy cleaning)
Product Parameter Details
  • Material：Full stainless steel wetted parts, food-grade certified, non-toxic
  • Structure Form：Threaded connection, closed sampling structure, mini-size
  • Pressure Rating：Working 0–1.0 MPa, test 1.5 MPa, stable and safe
  • Function：Aseptic sampling, medium testing, safe sample collection
  • Grade：Food-grade hygienic level, suitable for dairy, food, beverage
  • Standard：3A, SMS, DIN, ISO threaded standards
  • Certification Grade：Crevice-free, mirror polished, CIP suitable
  • Installation Direction：Horizontal / vertical mounting allowed
  • Customization Service：Size, seal material, thread type available
Stainless Steel Thread Food Grade Dairy Sampling Valve

Feature (F)、Advantage (A)、Benefit (B)
  1. Food Grade Safe:
  • F: Full 304/316L food-grade stainless steel
  • A:Non-toxic, corrosion-resistant, no contamination to dairy media
  • B: Ensures food safety and meets dairy processing standards
  1. Thread Connection:
  • F: Standard precision hygienic thread design
  • A: Quick installation and removal without tools
  • B: Improves maintenance efficiency and reduces labor cost
  1. Clean Sampling:
  • F: Closed hygienic sampling structure
  • A:Prevents external contamination, ensures sample accuracy
  • B: Guarantees product quality and production stability
  1. Hygienic Flow Path:
  • F: Crevice-free mirror polishing interior
  • A: No residue buildup, easy to clean and sterilize
  • B:Reduces bacteria risk and meets high hygiene demands
  1. Compact Size:
  • F:Mini-size design (DN6–DN15)
  • A:Fits small-caliber pipelines, saves space
  • B:Perfect for dairy lines and compact production systems

Stainless Steel Thread Food Grade Dairy Sampling Valve

Interface Mode：Sanitary threaded connection (3A/SMS/DIN/ISO)
Production & Processing Method：CNC machining, forging, mirror polishing
Surface Treatment： Internal mirror polish, external electro-polish / passivation
Raw Material Processing Method：Forged 304/316L stainless steel
Operation Mode：Manual, smooth and safe sampling control
Seal Ring Material Options：Food-grade EPDM, Silicone, PTFE
Sealing Method： Compression sealing, zero leakage in hygienic use
