Stainless Steel temperature Water Pressure Manual Air Regulating control valve

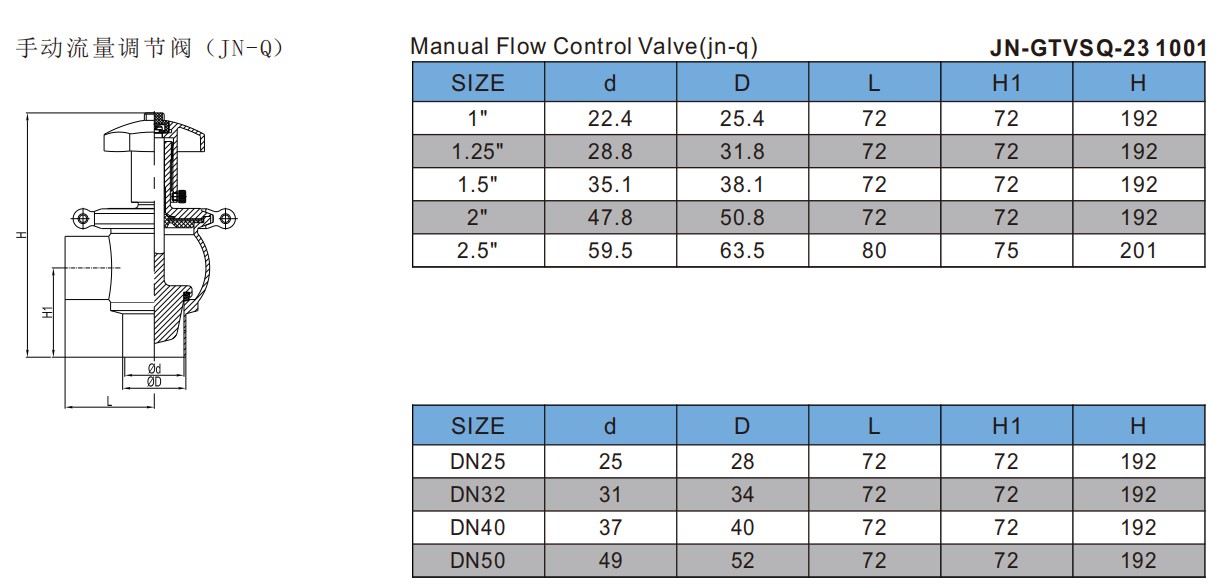

JN-GTVSQ-23 1001-21
Size: DN15–DN100.
Grade: SS304/SS316L.
Standard: DIN, SMS, 3A.
Working pressure: 0.1–1.6 MPa.
Test pressure: 2.4 MPa.
Temperature Range: -20°C to 180°C.
PTFE seals: corrosion resistance.
Viton seals: high-temperature sealing reliability.
Quantity:
Contact Now
Stainless Steel temperature Water Pressure Manual Air Regulating control valve

Stainless Steel temperature Water Pressure Manual Air Regulating control valve is awater regulating valve designed forfast installation and precise control of water temperature and flow. It is typically installed on branch pipelines, equipment inlet/outlet lines, heat exchanger connections, or terminal water distribution points, where it is used to balance temperature, stabilize flow rate, and maintain consistent process conditions. The quick-install structure allowsrapid maintenance and easy replacementin hygienic or industrial systems. Common types include manual quick-clamp regulating valves, inline adjustable temperature-flow valves, sanitary precision control valves, and compact threaded or clamp-type versions, widely used in food processing, pharmaceutical, HVAC, and industrial water circulation pipelines.


Compared with ordinary regulating valves,Stainless Steel temperature Water Pressure manual regulating valvefeatures a quick-install clamp or rapid connection structure, allowing faster maintenance and easier cleaning, while standard valves often require longer installation and disassembly time. It is designed for simultaneous temperature and flow adjustment, providing more stable process control in hygienic or water systems. Compared with other manufacturers, our valve uses precision CNC machining, full stainless steel sanitary construction, optimized internal flow paths, and high-performance PTFE/Viton seals, ensuring higher regulation accuracy, improved sealing reliability, corrosion resistance, and longer service life, making it ideal for demanding industrial and sanitary pipeline environments.



Accessories

 Component & Material Table
  • Valve Body – SS304 / SS316L stainless steel; corrosion-resistant main structure
  • Valve Core / Regulating Plug – SS316L stainless steel; precision temperature & flow control
  • Valve Stem – SS316 stainless steel; high strength and stable operation
  • Temperature Adjustment Mechanism – Stainless steel + internal thermal element or manual regulator
  • Spring Assembly – Stainless spring steel; stable pressure & temperature response
  • Sealing Elements – PTFE / EPDM / Silicone / FKM; hygienic and heat-resistant
  • Quick-Install Ends (Clamp / Quick Connector) – SS304 stainless steel; easy disassembly
  • Adjustment Handwheel / Cap – SS304 or aluminum alloy; convenient operation
Product Parameter Details

  • Material：Main body: 304/316L stainless steel; Valve core & stem: SS316L; Seals: food-grade PTFE/EPDM/Silicone/FKM; Adjustment handle/cap: 304 SS or aluminum alloy; Quick-install clamp ends: 304 stainless steel
  • Structure Form：Standard: straight-through quick-install clamp-type regulating structure with integrated temperature and flow adjustment; Compact inline hygienic design; Optional: jacketed structure for temperature stabilization, thermostatic control core, locking adjustment mechanism
  • Pressure Rating：PN10/PN16/PN25; Working pressure: up to 1.6 MPa (depending on size and seal); Test pressure: 1.5× working pressure; Temperature range: -10°C to 150°C (seal dependent)
  • Function：Water temperature adjustment and stabilization; Flow rate throttling and regulation; Stable outlet temperature control; Hygienic fluid regulation in processing pipelines; Easy maintenance through quick disassembly design
  • Grade Classification：Hygiene grade: 3A/DIN 11851 compatible for food, beverage, dairy, pharmaceutical water systems; Chemical process sanitary grade for light corrosive liquids; No heavy industrial-grade casting structure
  • Specification Match：Standards: DIN (German), SMS (Swedish), 3A (American), ISO (international); Connection type: clamp quick-install; Size range: 1/2"–4"(DN15–DN100)
  • Certification Grade：Hygiene certification: 3A, FDA-approved sealing materials optional; Safety certification: CE, ISO 9001; Material traceability and pressure compliance available upon request
  • Installation Direction：Horizontal or vertical installation; Inline clamp mounting; Flow direction marking recommended; Adjustment handle positioned upward or accessible for operation and maintenance
  • Customization Service：Custom size (5"+ or non-standard); Special seal material (Viton, FFKM, high-temperature PTFE); Jacketed temperature control structure; Automatic thermostatic version; OEM design; Sample support for testing and validation

Stainless Steel temperature Water Pressure Manual Air Regulating control valve

Feature (F)、Advantage (A)、Benefit (B)

     1. High-Strength Stainless Steel Precision Structure

  • F: SS304/SS316 forged body, CNC precision machining, reinforced threaded connection and durable valve core design.
  • A: Higher corrosion resistance, improved structural stability and enhanced pressure endurance.
  • B: Longer service life, reduced maintenance cost and reliable performance in demanding water systems.

     2. Dual-Pressure Balanced Regulating Mechanism

  • F: Special double-pressure hydraulic balancing structure with precision internal control components.
  • A: Stable upstream/downstream pressure regulation, accurate flow control and reduced pressure fluctuation.
  • B: Protects pumps and pipelines, improves system stability and minimizes operational risks.

     3. Compact Threaded Inline Design

  • F: Integrated threaded structure with compact body, optimized internal flow channel and streamlined design.
  • A: Easy installation in limited spaces, reduced turbulence and lower pressure loss.
  • B: Faster installation, improved pipeline efficiency and reduced overall system energy consumption.

     4. Advanced Surface Finishing & Manufacturing Process

  • F: Full polishing, precision assembly, hygienic internal surface finishing and anti-corrosion treatment.
  • A: Reduced scaling, improved fluid cleanliness and enhanced durability in water applications.
  • B: Easier maintenance and cleaning, longer maintenance intervals and consistent system performance.

     5. High-Performance Sealing System

  • F: PTFE / Viton / EPDM sealing options with optimized sealing geometry and wear-resistant components.
  • A: Strong leak-proof performance, enhanced temperature resistance and extended sealing lifespan.
  • B: Lower leakage risk, reduced downtime and dependable long-term sealing stability for customers.


Stainless Steel temperature Water Pressure Manual Air Regulating control valve

Connection Type:Threaded, Clamp, Flanged, Welded, Quick-install sanitary connection
Manufacturing Process:CNC precision machining, bending forming, automatic welding, precision assembly
Surface Treatment:Mechanical polishing, electrolytic polishing, matte finish, mirror finish (sanitary grade optional)
Raw Material Processing:Forging body, precision casting, plate forming, integrated machining structure
Operation Method:Manual handwheel, pneumatic actuator, electric actuator, automatic control optional
Seal Material Options: PTFE, Viton (FKM), EPDM, Silicone, high-temperature and sanitary grade options
Sealing Structure:Center sealing, eccentric sealing, soft seal design, high-tightness sealing structure
