Stainless Steel Sanitary Zero Dead Leg Flush Bottom drain Valve

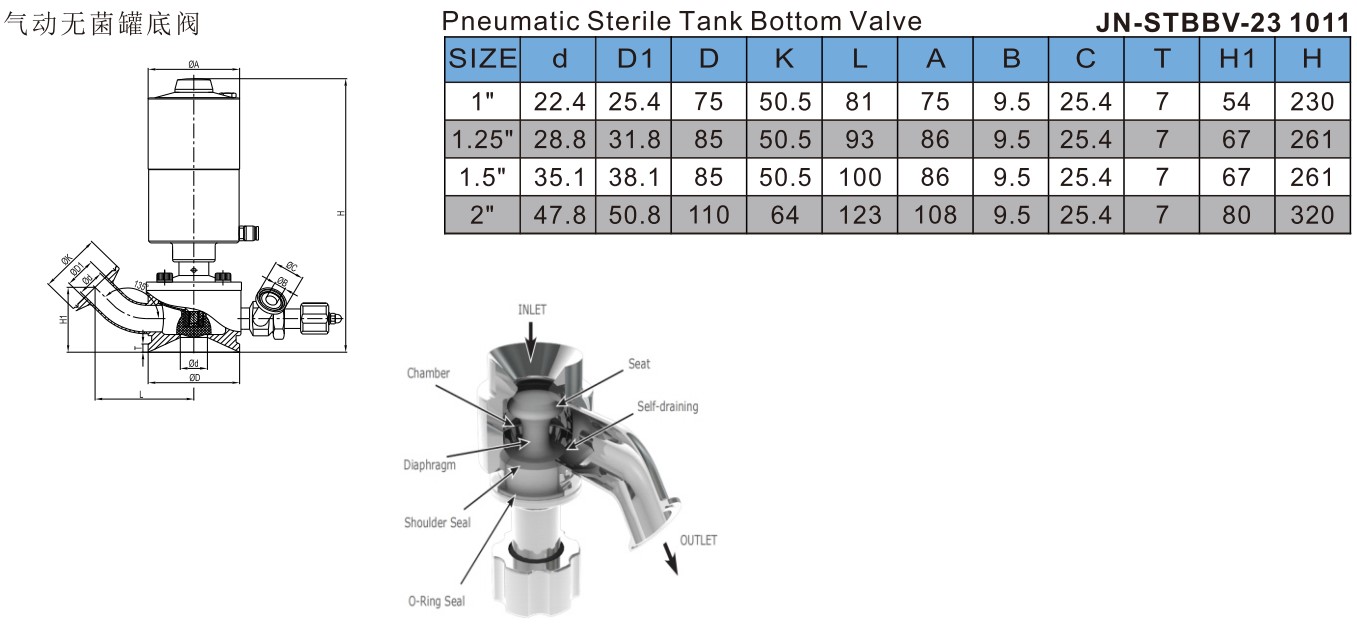

JN-STBBV-23 1011-6
Size: DN25–DN150.
Grade: SS304/SS316L.
Standard: DIN, SMS, 3A.
Working pressure: 0.1–1.6 MPa.
Test pressure: 2.4 MPa.
Temperature Range: -20°C to 180°C.
PTFE seals: chemical resistance.
Viton seals: high-temperature sealing reliability.
Quantity:
Contact Now

Stainless Steel Sanitary Zero Dead Leg Flush Bottom drain Valve

TheStainless Steel Sanitary Zero Dead Leg Flush Bottom drain Valve is a sterile valve specifically designed for the bottom of sanitary fluid storage tanks. Driven by a pneumatic actuator, it features a dead-angle-free sealing structure and is primarily used for media discharge, switching, and sealing at the bottom of the tank. It is compatible with the bottom discharge nodes of various sanitary storage tanks. Connection methods include quick-connect, welding, and flange types.The actuation method can be selected as normally closed or normally open as needed, and valve position feedback can also be integrated. It is widely used in aseptic production scenarios such as food and pharmaceutical industries, meeting CIP/SIP online cleaning and sterilization requirements, and ensuring the sterility and cleanliness of the tank discharge process.zero dead leg flush bottom valve
TheStainless Steel Sanitary Zero Dead Leg Flush Bottom drain Valve features a quick-release clamp and aseptic sealing structure, compatible with CIP/SIP in-situ cleaning and sterilization. Pneumatic drive enables automated control, ensuring a clean flow path with no dead corners or residue, and providing excellent sealing performance.Compared to tank bottom diaphragm valves, it offers stronger erosion resistance and a longer service life; compared to tank bottom ball valves, its aseptic design eliminates dead corners more thoroughly, preventing material accumulation; compared to ordinary aseptic tank bottom valves, its pneumatic control is more efficient and stable, and its quick-release structure facilitates maintenance; compared to discharge valves, it combines discharge and aseptic sealing functions, with a compact structure and high degree of automation, making it more suitable for high-cleanliness aseptic production scenarios such as pharmaceuticals and bioengineering, offering superior overall hygiene and practicality.sanitary pneumatic aseptic tank bottom valve adopts an integrated molded valve body and mirror electrolytic polishing process, combined with food-grade composite seals, and its sealing performance and asepticity are comparable to imported products. Compared with ordinary domestic products of the same type, it has higher precision, stronger corrosion resistance, and has the advantages of high customization, short delivery cycle and fast after-sales response. The entire series has passed sanitary certification and is suitable for the stringent requirements of various aseptic storage tanks.

TheStainless Steel Sanitary Zero Dead Leg Flush Bottom drain Valve mainly consists of a sterile valve body, a pneumatic actuator, a valve stem, a sterile sealing diaphragm, an anti-backflow component, and an optional manual operating mechanism and valve position feedback device. It is typically connected to the bottom of the storage tank or discharge pipeline using quick-release clamps or welding. After installation, it achieves a sterile seal between the storage tank and pipeline,ensuring no material residue and no leakage, meeting the cleaning and sterilization requirements of sanitary production. During operation,compressed air is input to the pneumatic actuator, driving the actuator to move the valve stem up and down. The valve stem then presses or releases the sealing diaphragm in the valve body flow channel, achieving the opening and closing of the medium for discharge and sealing. The diaphragm completely isolates the medium from the driving components, while the anti-backflow component, in conjunction with the sealing structure, effectively prevents backflow of the medium in the pipeline, ensuring sterile conditions throughout the process. This valve can be equipped with pneumatic, manual, and electric actuation modes as needed.The pneumatic version is suitable for automated production lines,the manual version can be used for emergency operation, and the electric version supports remote precise control, meeting the operational needs of different production scenarios.


Accessories

 Component & Material Table
  • Valve body material：304/316L Stainless Steel
  • Valve disc material：Stainless steel (316L)
  • Diaphragm material：EPDM, silicone rubber, or PTFE (meeting food/medical hygiene requirements)
  • Valve stem material：Stainless steel (316L)
  • Executive agency：Pneumatic actuators (can be equipped with solenoid valves, limit switches, etc.)
Product Parameter Details
  • Structural form：Pneumatic aseptic design, with a unique bottom-mounted structure for the storage tank that eliminates dead angles, and can be equipped with a jacketed insulation structure.
  • Pressure range：0.1～1.6MPa
  • Main functions：Controls the flow of media at the bottom of the storage tank, ensures aseptic discharge, prevents backflow, and is compatible with CIP/SIP online cleaning and sterilization.
  • Applicable Level：Sanitary
  • Specifications and Standards：DIN, SMS, 3A, ISO, IDF, ASME
  • Hygiene and safety levels：GMP, FDA, and 3A hygiene standards meet aseptic production safety requirements.
  • Installation direction：Vertical installation (compatible with bottom discharge structure of storage tank)
  • Customization：The diameter, pressure, sealing material, jacket structure, and operation method can all be customized, and sample making is supported.

Digital advantages

  • 1. Aseptic Compliance Certification: Valve body made of 316L stainless steel, internal mirror polished with Ra≤0.38μm, seals conform to FDA standards, and certified by GMP, 3A, and CE, meeting global export aseptic requirements.
  • 2. Precise Pneumatic Control: Pneumatic actuator response time ≤0.25 seconds, control accuracy ±0.8%, leakage rate ≤1×10⁻⁹ mbar・l/s, achieving the highest sealing level of ISO 5208.
  • 3. Extended Service Life: Composite diaphragm fatigue resistance ≥1.2×10⁶ cycles, wear-free structural design, extending maintenance cycle to 3 years, reducing customers' annual maintenance costs by 50%.
  • 4. Efficient Installation and Adaptability: Supports quick-installation/welding/flange connections, adaptable to DN20-DN150 storage tanks, modular design reduces installation time by 60%, and is compatible with mainstream automation systems.
  • 5. Intelligent Operating Condition Adaptation: Equipped with intelligent valve position feedback and pressure sensing components, it transmits operating data in real time, supports remote monitoring and fault early warning, and is suitable for Industry 4.0 production scenarios.
  • 6. Energy-Saving and Low-Consumption Design: The pneumatic actuator consumes ≤0.08m³/cycle, and the fully enclosed structure operates with a noise level ≤60dB(A), complying with ISO 14001 environmental and energy-saving standards.
Stainless Steel Sanitary Zero Dead Leg Flush Bottom drain Valve

Feature (F)、Advantage (A)、Benefit (B)
  1. Raw Material:
  • F: The valve body is made of 100% virgin 316L stainless steel, the sealing diaphragm is made of imported food-grade EPDM/PTFE composite material, and the core components of the pneumatic actuator are made of aerospace-grade aluminum alloy.
  • A:It has excellent resistance to acids and alkalis and corrosion, with no material leaching that contaminates the medium. The seals have excellent temperature and fatigue resistance and meet the highest hygiene standards.
  • B: It can be used for the storage and discharge of various food and pharmaceutical corrosive media, completely avoiding the risk of media contamination, ensuring product purity and production compliance, and reducing material loss.
  1. Processing Technology:
  • F: The valve body is forged as a single piece, precision machined by CNC, with mirror-finished electrolytic polishing of the internal flow channels, and fully automated argon arc welding and polishing treatment at the weld joints.
  • A: The flow channel has no dead corners, no weld seams or protrusions, no material residue, high structural strength and is not easily deformed, dimensional accuracy reaches the micron level, and the sealing fit is high.
  • B: Significantly reduces the difficulty of CIP/SIP cleaning, avoids pipeline blockage and cross-contamination, extends valve life, and reduces equipment maintenance and replacement frequency.
  1. Structure Feature:
  • F: The storage tank features a unique vertical structure with no dead angles at the bottom, an internal anti-backflow valve core, a customizable jacketed insulation structure, and a sterile isolation design between the pneumatic actuator and the valve body.
  • A:The sealing performance meets aseptic standards, effectively preventing media backflow and leakage. The jacketed version ensures smooth discharge of viscous media and completely isolates the drive components from the media.
  • B: It is compatible with bottom installation of various sanitary storage tanks, eliminating aseptic contamination during the discharge process, ensuring stable delivery of viscous and easily solidified media, and improving the asepticity of the production process.
  1. Core Accessory Feature:
  • F: The sealing diaphragm adopts a double-layer composite structure, the valve stem is hard anodized, the pneumatic actuator is equipped with a precision pressure regulating component, and the connecting accessories are sanitary quick-installation designs;
  • A: The diaphragm is fatigue-resistant and tear-resistant, the valve stem is wear-resistant and rust-free, the actuator moves precisely without jamming, and the connecting accessories are easy to install and have a tight seal.
  • B:Reducing the frequency of seal replacement lowers the probability of valve stem failure, ensures the stability of valve opening and closing, shortens installation and maintenance downtime, and improves production line efficiency.
  1. Seal Ring Feature:
  • F:The biomimetic design of the sealing ring precisely fitting the valve body flow channel, the pneumatic drive is compatible with solenoid valves and remote control systems, and the whole is a fully enclosed sterile design with no exposed sealing surface;
  • A:It has a seamless seal, excellent leak prevention effect, supports automated and remote operation, prevents external contaminants from entering the pipeline, and is suitable for the automated control requirements of aseptic production.
  • B:Significantly improves valve sealing reliability, optimizes production automation, reduces the risk of contamination from manual intervention, and ensures the consistency and stability of aseptic production conditions.

Stainless Steel Sanitary Zero Dead Leg Flush Bottom drain Valve

Maximum FlowRate：According to size (DN20-DN150)
Maximum pressure：160PSI (10bar) /230PSI (16bar) (optional)
Max speed：N/A (pneumatic operation response time <0.25s)
Body Types：Bottom Valve Type, Sanitary Sterile Structure (with jacketoptional)
Mechanical Seal：Double composite diaphragm EPDM/PTFE (standard), singlediaphragm (option)
Actuator Type：Pneumatic actuator operation (manual/electric optional)
Actuator Accessory：Solenoid valve, limit switch, positioner (optional)
