Stainless Steel Sanitary Manual Flange Lever Wafer Butterfly Valve

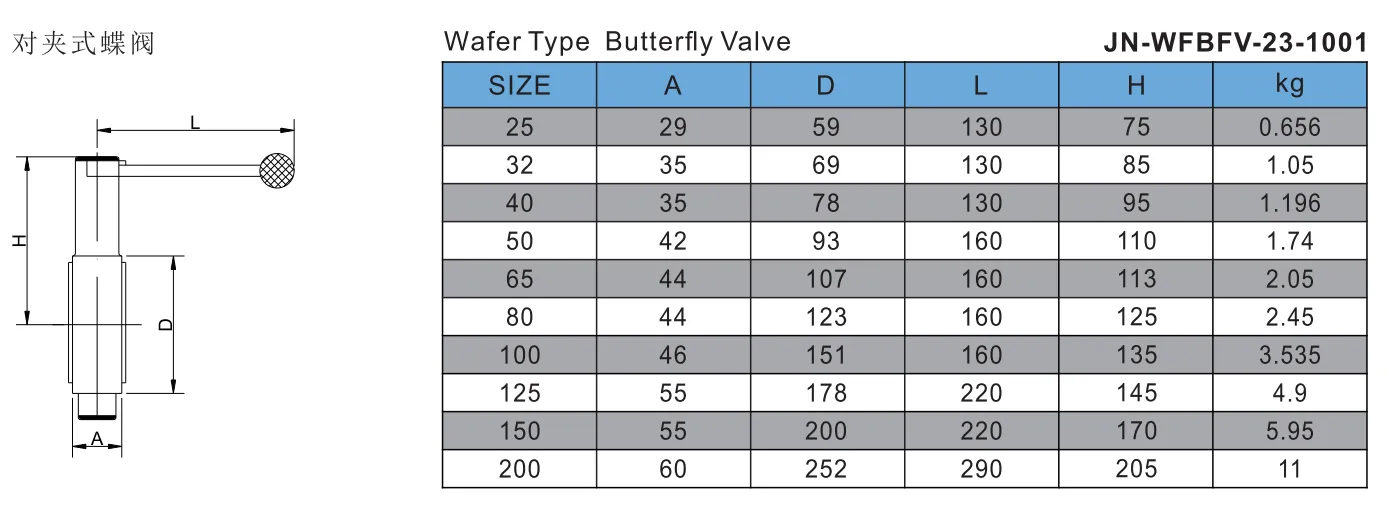

JN-WFBFV-23-1001-4
Size: DN25–DN150
Grade: 304 / 316L
Standard: DIN / SMS / ISO / 3A
Working pressure: 0–1.0MPa
Test pressure: 1.5MPa
Temperature Range: -20°C to 180°C
PTFE seals: High temperature resistance, self-lubricating, suitable for most hygienic media
Viton seals: Excellent oil resistance, corrosion resistance, and aging resistance, ideal for high-temperature and harsh conditions
Quantity:
Contact Now
Recommend Products
Stainless Steel Sanitary Manual Flange Lever Wafer Butterfly Valve

Stainless Steel Sanitary Manual Flange Lever Wafer Butterfly Valve is a manual hygienic Sanitary Valve butterfly valve Steel Valve with flange connection and lever operation. It is mainly installed on stainless steel hygienic pipelines in food, beverage, pharmaceutical and dairy industries, used for manual on-off and flow control of clean media. Types include 304/316L material versions, PTFE/EPDM seals, standard and high-pressure models, with full polished crevice-free design and compliance with DIN/ISO/3A standards for stable and hygienic operation.

Stainless Steel Sanitary Manual Flange Lever Wafer Butterfly Valve features full stainless steel construction, flange connection, mirror polishing, and crevice-free design, which is fundamentally different from ordinary industrial butterfly valves. It ensures no dead legs, easy cleaning, and high hygiene performance. Our product adopts precision forging, CNC machining, reliable eccentric sealing, and strict compliance with 3A/GMP standards, providing stronger durability, higher precision, and better corrosion resistance than similar products on the market.


Accessories

 Component & Material Table
  • Valve Body：304/316L Stainless Steel (sanitary precision forging, burr-free, void-free)
  • Valve Disc：304/316L Stainless Steel (mirror polished, Ra≤0.8μm, no media residue)
  • Valve Stem：316L Stainless Steel (quenched & tempered, corrosion-resistant, precision polished)
  • Lever Handle：304/316L Stainless Steel (one-piece forging, non-slip, sanitary polished)
  • Seal：Sanitary Grade PTFE / EPDM (non-toxic, pollution-free, high-temp resistant)
  • Flange：304/316L Stainless Steel (integrated with valve body, standard flange holes)
  • Stuffing Box (Stem Seal)：316L Stainless Steel + PTFE Sanitary Packing (leak-proof, no dead corners)
  • Fasteners：316L Stainless Steel (corrosion-resistant, sanitary grade)
Product Parameter Details
  • Material: Main body, flange, lever & core parts: 304/316L Stainless Steel (optional); Seals: Sanitary PTFE/EPDM; Fasteners: 316L Stainless Steel
  • Structure: Wafer type, flange connection, manual lever operation, no jacket, crevice-free design, smooth flow channel (no dead legs)
  • Pressure: Standard: 0–1.0MPa; Customizable: up to 1.6MPa (high-pressure version)
  • Function: Manual on-off control + stepless flow adjustment, easy operation, flexible switching, stable performance
  • Grade: Sanitary grade only (for clean media, no chemical grade models)
  • Standard: Complies with DIN, SMS, ISO, 3A, IDF international standards (matches global sanitary flange pipelines)
  • Level: GMP compliant, 3A certified, non-toxic, pollution-free (meets food/pharmaceutical/dairy safety requirements)
  • Installation: Horizontal or vertical installation (easy to assemble/disassemble, no impact on pipeline cleanliness)
  • Customization: Customizable sizes (flange diameters), seal materials (PTFE/EPDM), lever length, flange standards; Samples available on request
Stainless Steel Sanitary Manual Flange Lever Wafer Butterfly Valve

Feature (F)、Advantage (A)、Benefit (B)
  • F: 304/316L stainless steel, CNC precision machining, full mirror polishing
  • A: Corrosion resistant, smooth surface, no burrs or dead legs
  • B: Ensures high hygiene, easy cleaning, no contamination risk
  1. Flange Connection Structure
  • F: Wafer type with flange connection, full stainless steel integrated design
  • A: Strong sealing, high stability, easy installation and disassembly
  • B: Reduces installation time, improves pipeline safety
  1. Manual Lever Operation
  • F: Stainless steel lever handle, manual control, smooth opening and closing
  • A: Simple operation, reliable action, low failure rate
  • B: Saves labor cost, improves on-site operation efficiency
  1. Sealing System
  • F: Eccentric sealing structure, sanitary PTFE/EPDM seals
  • A: Excellent tightness, wear-resistant, high temperature resistant
  • B: Reduces leakage risk, extends service life, lowers maintenance cost
  1. Sanitary Standard & Application
  • F: Crevice-free design, compliant with GMP, 3A, DIN, ISO standards
  • A: Wide application in hygienic pipelines, stable performance
  • B: Suitable for food, dairy, pharmaceutical industries, improves production quality

Stainless Steel Sanitary Manual Flange Lever Wafer Butterfly Valve

Connection:Flange connection, wafer type structure
Processing:CNC precision machining for high accuracy and stable dimensions
Surface treatment:Full mirror polishing and electrolytic polishing, burr‑free and crevice‑free
Material process: Stainless steel precision forging, high strength and good stability
Operation:Manual lever operation, easy and reliable on-site control
Seal material:Sanitary grade PTFE or EPDM, non-toxic and high-temperature resistant
Seal type:Eccentric sealing structure with better sealing performance and longer service life
