Stainless Steel Sanitary Electric Butt Weld Wafer Butterfly Valve

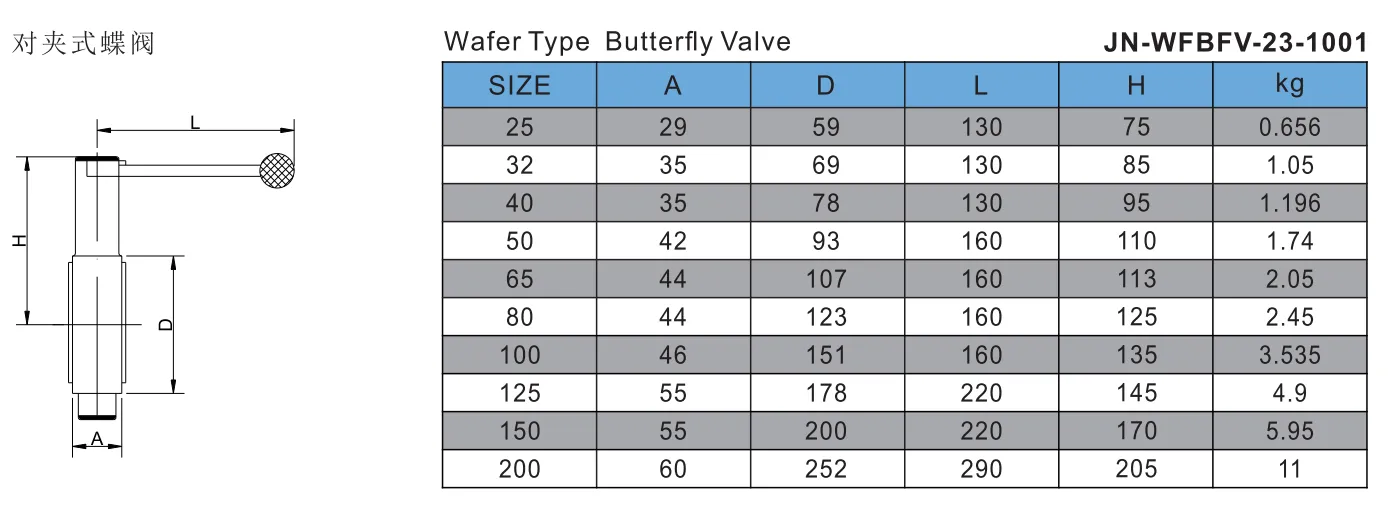

JN-WFBFV-23-1001-2
Size: DN25–DN150
Grade: 304 / 316L
Standard: DIN / SMS / ISO / 3A
Working pressure: 0–1.0MPa
Test pressure: 1.5MPa
Temperature Range: -20°C to 180°C
PTFE seals: High temperature resistance, self-lubricating, suitable for most hygienic media
Viton seals: Excellent oil resistance, corrosion resistance, and aging resistance, ideal for high-temperature and harsh conditions
Quantity:
Contact Now
Download directory
Recommend Products
Stainless Steel Sanitary Electric Butt Weld Wafer Butterfly Valve

Stainless Steel Sanitary Electric Butt Weld Wafer Butterfly Valve is a hygienic electric butterfly valve Electric Valve Wafer Valve withbutt-weld connectionandelectric actuator. It is mainly installed on hygienic pipelines in food, beverage, pharmaceutical and biotech industries, used forautomatic on-off and flow regulation. Types include 304/316L versions, on-off /modulating actuators, PTFE/EPDM seals, with Sanitary Valve full polished crevice-free designandGMP/3A compliance for clean media control.

Stainless Steel Sanitary Electric Butt Weld Wafer Butterfly Valve adopts full welded butt-weld structure and all-round mirror polishing, which is totally different from ordinary butterfly valves. It has no dead angles, no residue, easy CIP/SIP cleaning and electric automatic control. Our product uses precision forged 304/316L stainless steel, reliable eccentric seal, and complies with 3A/GMP standards, with higher precision, better sanitation and longer service life than other similar products.


Accessories

 Component & Material Table
  • Valve Body ：304/316L stainless steel
  • Valve Disc：304/316L stainless steel
  • Valve Stem：316L stainless steel
  • Electric： ActuatorStainless steel housing
  • Seal：PTFE / EPDM
  • Butt Weld End：304/316L stainless steel
Product Parameter Details
  • Material: 304/316L stainless steel
  • Structure: Wafer type, butt weld, electric actuator
  • Pressure: 0–1.0 MPa
  • Function: Electric on-off & flow control
  • Grade: Sanitary grade
  • Standard: DIN, SMS, ISO, 3A, IDF
  • Level: GMP & 3A compliant
  • Installation: Horizontal / vertical
  • Customization: Sizes, actuators, seals, samples available
Stainless Steel Sanitary Electric Butt Weld Wafer Butterfly Valve

Feature (F)、Advantage (A)、Benefit (B)
  1. Material & Processing
  • F: 304/316L stainless steel, CNC machining, full mirror polish
  • A: Corrosion resistant, no dead legs, easy to clean
  • B: Meets food/pharma hygiene, avoids contamination
  1. Butt-Weld Full-Weld Structure
  • F: Butt-weld connection, fully welded, crevice-free
  • A: Strong sealing, no leakage, high stability
  • B: Longer service life, lower maintenance cost
  1. Electric Actuator Control
  • F: Electric automatic operation, optional manual override
  • A: Remote control, high efficiency, stable running
  • B: Saves labor, improves automation, reduces errors
  1. Eccentric Sealing System
  • F: Eccentric seal, sanitary PTFE/EPDM seals
  • A: Good tightness, high temp & wear resistant
  • B: Reduces downtime, extends service life
  1. Sanitary Standard & Structure
  • F: Wafer type, compact, GMP/3A compliant
  • A: Easy installation, wide application
  • B: Fits hygienic pipelines, boosts productivity

Stainless Steel Sanitary Electric Butt Weld Wafer Butterfly Valve

Connection:Butt Weld
Processing:CNC precision machining
Surface treatment:Mirror polishing & electrolytic polishing
Material process: Stainless steel precision forging
Operation:Electric actuator operation
Seal material: Sanitary PTFE or EPDM
Seal type: Eccentric sealing
