Stainless Steel Sanitary Food Grade Welded Concentric Pipe Reducer

JN-FT-23 2015
Size: 1/2" to 6" (Inch)Grade: SS304, SS304L, SS316L
Standard: 3A, DIN, SMS, ISO, IDF
Working pressure: 1.0MPa – 1.6MPa
Test pressure: 1.5MPa – 2.4MPa
Temperature Range: -20°C to 200°C
PTFE seals: Non-toxic, hygienic, high temperature resistant and corrosion proof
Viton seals: Excellent heat resistance, oil resistance and aging resistance
Quantity:
Contact Now
Download directory
Recommend Products
Stainless Steel Sanitary Food Grade Welded Concentric Pipe Reducer

Stainless Steel Sanitary Food Grade Welded Concentric Pipe Reduceris a Hygienic reducer stainless steel pipe fitting with polished, crevice-free surface, widely used in food, beverage, dairy and pharmaceutical pipelines. It is installed at the diameter transition section of straight pipelines, mainly used to smoothly connect pipes of different sizesand reduce fluid resistance without residue. Made of SS304/316L, it adopts welded connection and complies with 3A, DIN and ISO standards. It is divided into different size specifications from 1/2"to 6", featuring stable pressure resistance, easy cleaning and strict hygiene performance.

The core difference between Stainless Steel Sanitary Food Grade Welded Concentric Pipe Reducer and ordinary products lies in hygienic polishing, crevice-free designandfood-grade materials. The inner wall is smooth and residue-free, complying with strict hygiene standards such as 3A and DIN, while ordinary pipe fittings are prone to material buildup and fail to meet standards. Our products adopt high-purity 304/316L stainless steelwithprecision welding and no burrs, featuring higher dimensional accuracy and stable pressure resistance. We also support customized sizes and seals, with stricter quality inspection and longer service life, offering superior safety and stability over similar products.


Accessories

 Component & Material Table
  • Main Body: 304/304L/316L Stainless Steel (sanitary-grade forging)
  • Surface Treatment: Internal & external mirror polishing (hygienic, crevice-free)
  • Connection Type: Butt-welded structure (seamless, leakage-proof)
  • Standard Compliance: 3A, DIN, SMS, ISO, IDF sanitary standards
  • Structure Form: Concentric reducer (smooth transition, low flow resistance)

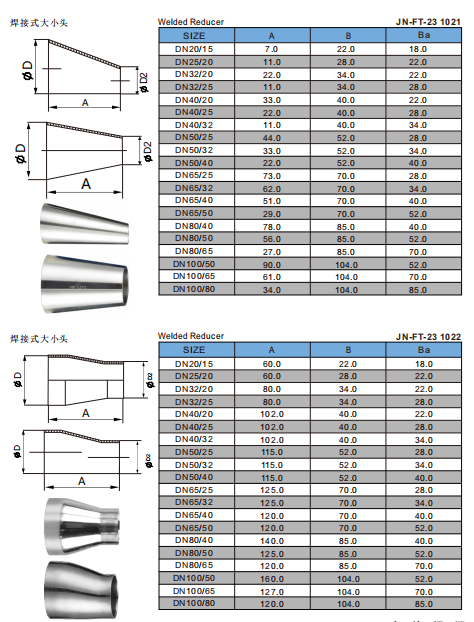

Product Parameter Details
  • Material: Main body 304/304L/316L stainless steel; food-grade hygienic finish
  • Structure Form: Concentric welded reducer, seamless integrated forming
  • Pressure Rating: Working pressure: 1.0–1.6MPa; Test pressure: 1.5× working pressure
  • Function:Pipe diameter transition, smooth flow connection, no residue accumulation
  • Grade Classification: Hygiene grade: 3A/DIN/SMS; Food & pharma grade only, no industrial grade
  • Specification Match: Standards: 3A, DIN, SMS, ISO, IDF; Size range: 1/2"– 6"
  • Temperature Range: -20℃ to 200℃, suitable for hygienic fluid medium
  • Sealing Options (Optional): PTFE seals; Viton seals (high temp & corrosion resistant)
  • Installation Direction: Butt-welded installation, concentric alignment, horizontal/vertical available
  • Customization Service: Custom sizes, special materials, polished grade customization, sample support
Stainless Steel Sanitary Food Grade Welded Concentric Pipe Reducer

Feature (F)、Advantage (A)、Benefit (B)
  1. Raw Material:
  • F: 100% virgin 304/304L/316L stainless steel; food-grade hygienic standard
  • A: Excellent corrosion resistance, no rust, no material precipitation, safe and non-toxic
  • B: Fully compliant with food, dairy, pharmaceutical hygiene requirements; no medium contamination risk
  1. Processing Technology:
  • F: Internal & external mirror polishing (Ra≤0.8μm); seamless welded forming; no dead corners
  • A: Smooth inner wall, no medium residue, easy to clean and sterilize
  • B: Meets CIP/SIP cleaning standards; reduces blockage risk; ensures hygienic production safety
  1. Structure Feature:
  • F: Concentric design, smooth transition, butt-welded connection, uniform wall thickness
  • A: Stable flow, small fluid resistance, high dimensional accuracy, firm connection
  • B: Ensures stable pipeline operation; reduces pressure loss; suitable for long-term continuous use
  1. Core Accessory Feature:
  • F: Comply with 3A, DIN, SMS, ISO, IDF international sanitary standards
  • A: Universal matching, wide adaptability, high compatibility with hygienic pipelines
  • B: Suitable for multiple working conditions; easy installation and replacement; strong versatility
  1. Seal Ring Feature:
  • F: Matched food-grade PTFE seals & Viton seals; wide temperature resistance range
  • A: High temperature resistance, aging resistance, excellent sealing and durability
  • B: Adapts to -20℃ to 200℃ working environment; prevents leakage; extends service life

Stainless Steel Sanitary Food Grade Welded Concentric Pipe Reducer

Interface Mode：Welded butt-connection (DIN/SMS/3A/ISO standard); fixed concentric structure without additional connection conversion
Production & Processing Method：Full CNC precision forming; seamless stamping & stretching; no welding dead corners, smooth transition structure
Surface Treatment：Inner & outer mirror polishing (Ra ≤ 0.8μm); outer surface passivation & electrolytic polishing; sanitary-grade anti-corrosion and anti-pollution treatment
Raw Material Processing Method：Main body: 304/304L/316L stainless steel stamping & forming (high density, seamless, no porosity); integral one-piece processing
Operation Mode：Fixed pipeline fitting, direct welding installation; no movable parts, stable and maintenance-free in operation
Seal Ring Material Options：Food-grade PTFE, Viton (FKM) optional; FDA & 3A certified, compatible with hygienic welding pipeline systems
Sealing Method：Welded seamless sealing; tight and firm connection after welding; zero leakage under rated pressure, long-term stable sealing performance
