Stainless Steel Sanitary Clamp Reducer for Hygienic Process Piping

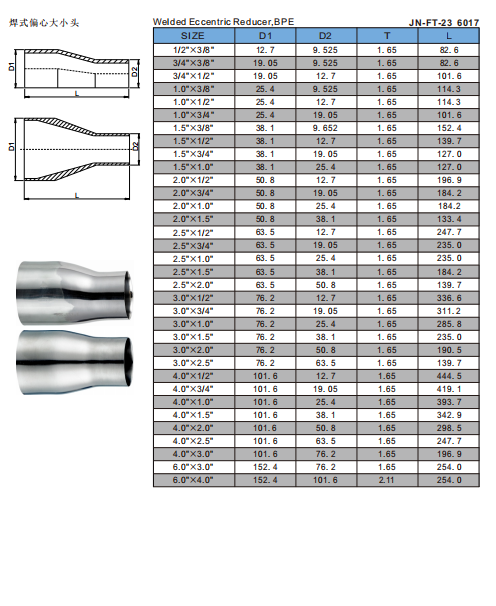

JN-FT-23 6017-1
Size: 1" x 1/2" up to 4" x 3" (Custom sizes available)
Grade: SS304 / SS316L
Standard: 3A, DIN, SMS, ISO, BS, BPE
Working Pressure: 10 bar (145 PSI) @ 20°C
Test Pressure: 15 bar (217 PSI) (Hydrostatic Test)
Temperature Range: -50°C to +200°C (-58°F to +392°F)
PTFE Seals: Available for FDA compliance, suitable for temperatures up to 260°C, excellent chemical resistance.
Viton Seals: Available for high-temperature applications, superior resistance to oils, fuels, and aggressive chemicals.
Quantity:
Contact Now
Recommend Products
Stainless Steel Sanitary Clamp Reducer for Hygienic Process Piping

Stainless Steel Sanitary Reducer for Hygienic Process Pipingis a hygienic pipe fitting used to connect two sections of pipeline with different diameters, typically installed between pipes, pumps, valves, filters, tanks and other equipment in food, beverage, dairy, pharmaceutical and cosmetic processing systems. Made of SS304 or SS316L stainless steel with an electro‑polished surface, it features a smooth, crevice‑free interior that prevents residue buildup and ensures easy cleaning and sterilization. It mainly stabilizes fluid flow, reduces pressure loss and maintains hygienic standards while adapting to changing pipe sizes. There are two main types: concentric reducersfor straight or vertical pipelines and eccentric reducers for horizontal pipelines to avoid air pockets or liquid accumulation. Equipped with clamp‑style quick connections, it allows fast installation and disassembly, complies with 3A, DIN, SMS, ISO and BPE standards, and is widely applied in high‑hygiene process piping systems.

Stainless Reducer differs from ordinary reducers with itshygienic, crevice-free electro-polished surfaceandclamp quick-connection, preventing contamination and enabling easy cleaning. Unlike standard fittings, it meets strict 3A, DIN, BPE standards for food, beverage and pharmaceutical systems. Our products stand out withprecision CNC machining,stable SS304/316L material,and strict pressure and leakage testing, ensuring higher durability, smoother flow, and longer service life than competitors’ products.


Accessories

 Component & Material Table
  • Valve Body & Ball: 304/316L Stainless Steel (sanitary-grade forging, mirror polished)
  • Valve Seat & Seal Ring: PTFE/EPDM/Viton (food-grade, corrosion-resistant, wear-resistant)
  • Manual Handle:304 Stainless Steel/Aluminum Alloy (anti-slip grip, ergonomic design)
  • Quick-Clamp Fitting:304/316L Stainless Steel (tri-clamp connection, polished finish, clamp size matched to valve port)
  • Valve Stem: 304/316L Stainless Steel (integral forging, wear-resistant, anti-leakage structure)
  • Gasket: Silicone/Food-grade EPDM (sealing matching quick-clamp fitting)
Product Parameter Details
  • Material: Main body: 304/316L stainless steel (sanitary forging); Seals: food-grade PTFE/EPDM (standard), Viton (custom); Handle: 304 SS/aluminum alloy
  • Structure Form: Standard: three-way L/T port, clamp-type quick-install (no welding, fast assembly); Optional: jacketed structure (for temperature control of media), multi-position locking handle
  • Pressure Rating: PN10/PN16/150PSI (working pressure); Test pressure: 1.5× working pressure (hydrostatic test)
  • Function:Flow direction switching (L-port for diversion, T-port for merging), media merging, fluid diversion, on-off control for hygienic pipelines; bidirectional flow (no flow direction restriction)
  • Grade Classification: Hygiene grade: 3A/DIN 11851; Application grade: sanitary-grade (exclusively for food, beverage, pharmaceutical, dairy, cosmetic industries)
  • Specification Match:Standards: DIN (German), SMS (Swedish), 3A (American), ISO (international); Size range: 1/2"–4"(custom size 5"+ available); Connection type: tri-clamp quick-install
  • Certification Grade:Hygiene certification: 3A, FDA, EHEDG; Safety certification: CE, ISO 9001; Material certification: MTC (mill test certificate)
  • Installation Direction:Horizontal/vertical installation (handle upward recommended for easy operation); no flow direction restriction for bidirectional sealing
  • Customization Service: Custom size (5"+), special seal material (Viton for high temperature), jacketed structure (heating/cooling jacket), sample support for testing, laser marking (logo/standard/spec)

Stainless Steel Sanitary Clamp Reducer for Hygienic Process Piping

Feature (F)、Advantage (A)、Benefit (B)
  1. Raw Material:
  • F: 100% virgin 304/316L stainless steel for reducer body; food-grade PTFE/EPDM/Silicone gaskets (FDA/3A compliant)
  • A: Corrosion resistance; no material contamination; compliance with strict hygienic standards
  • B: Safe for food, pharmaceutical & dairy applications; avoids media pollution risks; meets regulatory audit requirements
  1. Processing Technology:
  • F: Full cavity mirror polishing (Ra≤0.8μm); one-piece forging; no welding dead corners; precision dimensional control
  • A: No medium residue; easy cleaning & sterilization; high structural strength; seamless transition between pipe sizes
  • B: Reduces cleaning time & labor costs; meets CIP/SIP requirements; prevents pipeline blockages; extends service life
  1. Structure Feature:
  • F: Clamp-type quick-install connection on both ends; concentric/eccentric design options; seamless transition between different pipe diameters
  • A: 50% faster assembly/disassembly; no welding required; flexible adaptation to complex pipeline layouts; stable flow transition
  • B: Cuts installation downtime; simplifies pipeline modification; minimizes operational errors; avoids turbulence and pressure loss
  1. Core Accessory Feature:
  • F: Precision-machined stainless steel body (zero clearance fit with clamps); food-grade gaskets; standard tri-clamp compatibility
  • A: Leak-free sealing; smooth operation without jamming; long service life; easy replacement of gaskets
  • B: Low maintenance frequency; stable performance in high-frequency use; reduces replacement costs; avoids production downtime
  1. Seal Ring Feature:
  • F: Integrated food-grade PTFE/EPDM/Silicone gaskets; high-temperature resistant; custom Viton option available
  • A: Excellent sealing performance; wide temperature adaptability; wear resistance; compatibility with CIP/SIP processes
  • B: Adapts to -20°C~180°C working conditions; prevents medium leakage; avoids seal aging failures; reduces downtime for seal replacement

Stainless Steel Sanitary Clamp Reducer for Hygienic Process Piping

Interface Mode：Clamp-type quick-install (DIN/SMS/3A/ISO standard); both ends with tri-clamp connections for seamless pipe joining
Production & Processing Method：Full CNC precision machining; one-piece forging shaping; no welding dead corners; precision dimensional control
Surface Treatment：Inner cavity mirror polishing (Ra ≤ 0.8μm); outer surface electrolytic polishing/passivation; sanitary-grade anti-corrosion treatment
Raw Material Processing Method： Main body: 304/316L stainless steel forging (high structural density, no porosity); gaskets: precision molded food-grade materials
Connection Type: Tri-clamp (clamp) connection on both ends; customizable to match different pipe diameters
Seal Ring Material Options：Food-grade PTFE, EPDM, Silicone; FDA/3A certified for hygienic applications
Sealing Method：Full-face gasket sealing between reducer ends and pipe clamps; zero-leakage performance for hygienic processes
