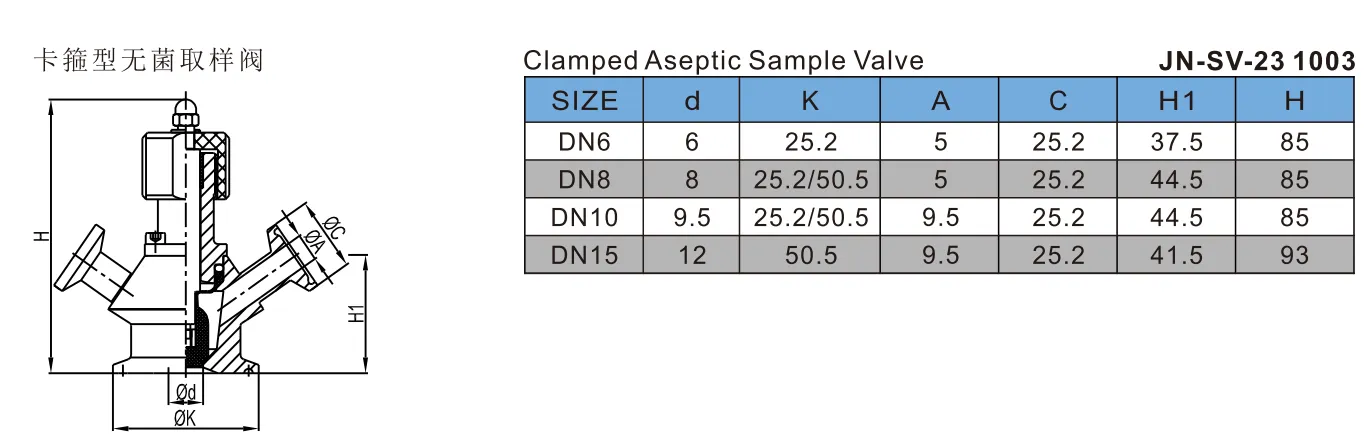

Stainless Steel Food Grade Tri-Clamped Beer Sampling Valve

JN-SPV2007
Size: DN6 – DN15
Material Grade: SS304 / 316L (food-grade)
Compliant Standards: 3A, SMS, DIN, ISO, FDA, GMP
Operating Pressure: 0 – 1.0 MPa
Test Pressure: 1.5 MPa
Temperature Range: -10℃ to 80℃
Seal Options: Food-grade EPDM, Silicone, PTFE
Quantity:
Contact Now
Download directory
Recommend Products
Stainless Steel Food Grade Tri-Clamped Beer Sampling Valve

OurStainless Steel Food Grade Tri-Clamped Beer Sampling Valve is a professional sampling unit designed specifically for beer production, with standard sanitary tri-clamp connection. It is widely installed on brewing lines, fermentation tanks and bright beer tanks to achieve clean, closed and non-polluting sampling. The Food Grade Valve compact structure ensures smooth  Tri-Clamped Valve operation and preserves beer quality during sampling.

OurStainless Steel Food Grade Tri-Clamped Beer Sampling Valve is specially optimized for beer applications, making it different from general-purpose sampling valves. It features a crevice-free flow path to avoid oxidation and contamination, protecting beer flavor and clarity during extraction. The full stainless steel construction and food-grade seals resist beer-related media and cleaning agents. Tri-clamp connection allows fast installation and disassembly for CIP/SIP cleaning. Compared with similar products, our valve provides smoother operation, better sealing and longer service life. It fully meets international brewing hygiene standards and is widely used in craft breweries, medium and large beer production lines.


Accessories

 Component & Material Table
  • Valve Body & Wetted Parts：SS304/316L Stainless Steel (food-grade forging, mirror polished)
  • Sealing Parts：EPDM, Silicone, PTFE (food-grade, beer-resistant)
  • Sampling Nozzle：SS304 (smooth, crevice-free, easy cleaning)
  • Tri-Clamp End：SS304 (standard sanitary connection, quick assembly)
Product Parameter Details
  • Material：Full stainless steel wetted parts, food-grade certified, non-toxic
  • Structure Form：Tri-clamp connection, closed hygienic structure, mini-size
  • Pressure Rating：Working 0–1.0 MPa, test 1.5 MPa, stable and safe
  • Function：Beer sampling, quality testing, closed extraction
  • Grade Classification： Food-grade hygienic level, suitable for beer, beverage, dairy
  • Standard：3A, SMS, DIN, ISO sanitary standards
  • Hygiene：Crevice-free, mirror polished, CIP/SIP suitable
  • Installation Direction：Horizontal / vertical mounting allowed
  • Customization Service：Size, seal material, structure customizable
Stainless Steel Food Grade Tri-Clamped Beer Sampling Valve

Feature (F)、Advantage (A)、Benefit (B)
  1. Beer-Specific Design:
  • F: Optimized flow path for beer sampling
  • A:Prevents oxidation and flavor loss
  • B: Ensures accurate testing and stable beer quality
  1. Tri-Clamp Quick Install:
  • F: Standard sanitary tri-clamp connection
  • A: Fast assembly and disassembly
  • B: Improves maintenance efficiency in brewing systems
  1. Food Grade Safe:
  • F: Full 304/316L food-grade stainless steel
  • A:Non-toxic, no contamination to beer
  • B: Meets food and brewing safety standards
  1. Hygienic Flow Path:
  • F: Crevice-free mirror polishing interior
  • A: No residue, easy to clean and sterilize
  • B:Reduces bacteria risk in fermentation lines
  1. Compact Structure:
  • F:Mini-size design (DN6–DN15)
  • A:Space-saving, fits small brewing pipelines
  • B:Ideal for breweries and beverage production

Stainless Steel Food Grade Tri-Clamped Beer Sampling Valve

Interface Mode：Sanitary tri-clamp (3A/SMS/DIN/ISO)
Production & Processing Method：CNC machining, forging, mirror polishing
Surface Treatment：Internal mirror polish, external electro-polish / passivation
Raw Material Processing Method：Forged SS304/316L stainless steel
Operation Mode：Manual, smooth sampling control
Seal Ring Material Options：Food-grade EPDM, Silicone, PTFE
Sealing Method：Compression sealing, zero leakage
