Stainless Steel High Purity Sanitary Concentric Reducer

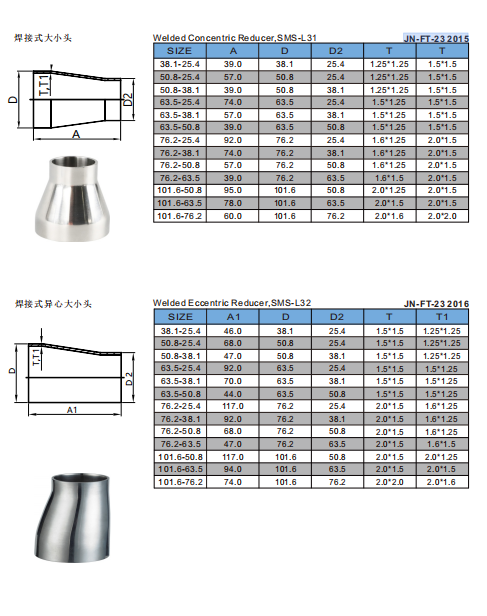

JN-FT-23 2015-1
Size: Customizable from 1/2" to 6" (DN15 to DN150)
Grade: SS304 / SS316L (316L recommended for high-purity and corrosive applications)
Standard: ASME BPE, DIN 11864, ISO 1127, SMS 3008, BS 4825 (customizable to meet specific project standards)
Working pressure: Up to 10 bar (145 psi) at ambient temperature, depending on size and wall thickness
Test pressure: 1.5 times the working pressure (hydrostatic test)
Temperature range: -20°C to 200°C (-4°F to 392°F) for SS316L, compatible with CIP/SIP processes
PTFE seals: Available as an option, suitable for general hygienic applications, resistant to most chemicals, with a temperature range of -40°C to 260°C
Viton seals: Available as an option, ideal for high-temperature and chemical-resistant environments, with a temperature range of -20°C to 200°C
Quantity:
Contact Now
Download directory
Recommend Products
Stainless Steel  High Purity Sanitary Concentric Reducer

Stainless Steel High Purity Sanitary Concentric Reducer is a hygienic pipe fitting made of SS304/316LBPE Reducer with precision polished surface, Polished Reducer complying with ASME BPE, DIN 11864  Hygienic Reducer and other high-purity standards. It is widely used in hygienic process pipelinesin food, beverage, pharmaceutical and biotech industries, usually installed at sections where pipe diameter needs to change, such as pump outlets, equipment inlets or pipeline transitions, to smoothly adjust pipe size, reduce flow resistance and turbulence, and prevent medium residue.It is mainly divided into welded, clamp and threaded types to match different pipeline installation and clean production requirements.

Stainless Steel High Purity Sanitary Concentric Reducer differs from ordinary reducers with ultra-smooth polished surfaces,zero dead-leg design, and compliance withASME BPE & hygienic standards, ensuring no residue for food, pharma and biotech applications. Our products stand out with strict 316L material control,precision dimensional stability, higher pressure resistance, and stricter polish quality. We offer consistent performance, reliable certifications, and customized solutions, delivering superior durability and safety compared to standard suppliers.


Accessories

Component & Material Table

  • Main Body: 304/316L Stainless Steel (sanitary-grade forging, precision polished)
  • Seals (if applicable): PTFE/EPDM/Viton (food-grade, corrosion-resistant, customizable)
  • Connection Ends:304/316L Stainless Steel (welded/clamp/threaded, polished finish)
  • Surface Finish: Ra ≤ 0.8μm (internal/external, electropolished for high-purity applications)

Product Parameter Details

  • Material:Main body: 304/316L stainless steel; Seals: food-grade PTFE/EPDM/Viton
  • Structure Form:Standard: concentric reducer; Optional: eccentric reducer, jacketed structure for temperature control
  • Pressure Rating:PN10/PN16/150PSI (working pressure); Test pressure: 1.5× working pressure
  • Function:Smoothly transition pipe diameter, reduce fluid resistance and turbulence, avoid medium residue; ensure hygienic flow in process pipelines
  • Grade Classification:Hygiene grade: 3A/DIN 11851; Industry grade: sanitary-grade (for food/pharma/biotech), no industrial-grade option
  • Specification Match: Standards: ASME BPE, DIN 11864, ISO 1127, SMS 3008, BS 4825; Size range: 1/2"–6"(DN15–DN150)
  • Certification Grade:Hygiene certification: 3A, FDA; Safety certification: CE, ISO 9001
  • Installation Direction:Horizontal/vertical installation (no flow direction restriction); compatible with welded/clamp/threaded connections
  • Customization Service:Custom size (up to 8"+), special seal material (Viton, Kalrez), jacketed structure, sample support for testing
Stainless Steel  High Purity Sanitary Concentric Reducer

Feature (F)、Advantage (A)、Benefit (B)
  1. Raw Material:
  • F: 100% virgin 304/316L stainless steel for main body; food-grade PTFE/EPDM/Viton seals (optional)
  • A: Excellent corrosion resistance; no material contamination; compliance with 3A, FDA and ASME BPE standards
  • B: Safe for food, pharmaceutical, biotech & dairy applications; eliminates media pollution risks
  1. Processing Technology:
  • F: Full cavity mirror polishing (Ra ≤ 0.8μm); one-piece forging; no welding dead corners
  • A: No medium residue; easy cleaning & sterilization; high structural strength and dimensional stability
  • B: Reduces cleaning time & labor costs; meets CIP/SIP requirements; prevents pipeline blockages and cross-contamination
  1. Structure Feature:
  • F: Concentric design; smooth transition profile; available in welded, clamp or threaded connection types
  • A: Minimizes fluid turbulence; stable flow; easy installation/disassembly; no flow direction restriction
  • B: Cuts installation downtime; adapts to complex hygienic pipeline layouts; improves production efficiency
  1. Surface Finish Feature
  • F: Internal/external electropolished finish; precision-machined connection ends
  • A: Ultra-smooth surface; no adhesion points; easy to inspect and validate cleanliness
  • B: Ensures compliance with high-purity process standards; reduces validation time for regulatory audits
  1. Seal & Customization Feature
  • F: Optional PTFE/EPDM/Viton seals; customizable sizes (1/2"–6"+) and jacketed structure
  • A: Excellent sealing performance; wide temperature adaptability (-20°C to 200°C); wear resistance
  • B: Adapts to diverse process conditions; prevents medium leakage; extends service life; reduces replacement costs

Stainless Steel  High Purity Sanitary Concentric Reducer

Interface Mode: Clamp-type quick-install (DIN/SMS/3A/ISO standard); customizable welded/threaded ends
Production & Processing Method:Full CNC precision machining; one-piece forging shaping; no welding dead corners
Surface Treatment: Inner cavity mirror polishing (Ra ≤ 0.8μm); outer surface electrolytic polishing/passivation; sanitary-grade anti-corrosion treatment
Raw Material Processing Method：Main body: 304/316L stainless steel forging (high structural density, no porosity); connection ends: precision machining/stamping
Size & Dimension:Standard sizes from 1/2"to 6"(DN15 to DN150); custom sizes up to 8"+ available on request
Seal Ring Material Options: Food-grade PTFE, EPDM, Viton (FKM); FDA/3A certified for hygienic applications
Temperature & Pressure Rating:Working temperature: -20°C to 200°C; Working pressure: PN10/PN16/150PSI (size-dependent)
