stainless steel tri clamp short outlet pipe tee

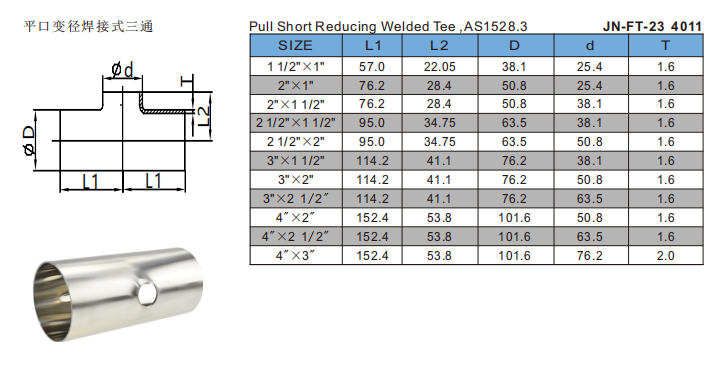

JN-FT-23 4011-2
Size: DN15 – DN150 (1″–6″, O.D. Ф12.7 – Ф152.4)
Grade: Manufactured from high-quality stainless steel SUS304 or SUS316L, offering excellent corrosion resistance, mechanical strength, durability, and suitability for sanitary processing applications.
Standard: Conforms to ISO, DIN, IDF, SMS, 3A, and other internationally recognized sanitary standards, ensuring reliable quality and compatibility with hygienic piping systems.
Working Pressure: Maximum working pressure of 1.0 MPa (PN10 bar), suitable for a wide range of sanitary fluid transfer and processing applications.
Test Pressure: Shell hydrostatic test pressure: 2.4 MPa; Seal integrity test pressure: 1.8 MPa, ensuring excellent pressure resistance and reliable leak-free performance.
Temperature Range: -10℃ to +150℃, suitable for high-temperature cleaning and steam sterilization processes up to 150℃ for a maximum of 20 minutes.
PTFE Seals: Standard PTFE gaskets provide excellent chemical resistance, a low friction coefficient, and broad temperature adaptability, ensuring reliable and long-lasting sealing performance.
Viton Seals: Optional Viton (FPM) O-rings are available for applications requiring enhanced resistance to high temperatures, oils, solvents, and aggressive chemical media.
Quantity:
Contact Now
Recommend Products
stainless steel tri clamp short outlet pipe tee

The Stainless Steel Sanitary tri clamp pipe tee is a one-piece sanitary tee fitting manufactured from 304/316L stainless steel with mirror-polished internal and external surfaces. The main pipe and side branch have different diameters, and both ends and the branch outlet feature welded bevel ends without quick-clamp ferrules. It is primarily welded into clean piping systems for food processing, pharmaceuticals, and beverages, including tank discharge outlets, main-line branching points, and equipment inlet/outlet branches. It is designed to divide a single fluid line into two branches, support fluid diversion and merging, and connect pipelines with different diameters. The y type pipe tee is available in 304 and 316L stainless steel and in various reducing configurations based on the main and branch pipe diameters, with different bevel dimensions available according to 3A and DIN standards.

Compared with quick-clamp and threaded tees, the Stainless Steel Short pipe tee uses an integrated welded bevel connection, eliminating the leakage risks associated with clamp gaskets while providing greater rigidity and higher pressure and temperature resistance. It is suitable for long-term fixed clean piping systems and, unlike equal tees, can connect pipelines with different diameters. The JONENG VALVES reducing tee is manufactured from new 304/316L stainless steel billets using one-piece forging and forming, with CNC-precision-machined weld bevels and internal and external electropolishing to Ra ≤ 0.4 μm. The three-way flow channels feature smooth arc transitions without dead corners, with uniform wall thickness and no porosity or sand holes. The bevel dimensions strictly comply with 3A/DIN welding standards, providing smooth concentric flow division without turbulence. This differs from low-cost stamped and assembled alternatives on the market, which may have rough internal walls, large bevel deviations, and right-angle junctions prone to material accumulation and contamination. Customized non-standard reducing configurations are available, and every product undergoes hydraulic pressure testing and complete borescope inspection before shipment, making it suitable for long-term stable operation in high-temperature, high-pressure, and sterile pharmaceutical and food production lines.


Accessories

 Component & Material Table
  • Tee Body & Branch：304/316L Stainless Steel (sanitary-grade forging, corrosion-resistant,high-strength)
  • Main Pipe & Reducing Branch：304/316L Stainless Steel (one-piece forged construction, uniform wall thickness)
  • Welded Ends：304/316L Stainless Steel (precision-machined bevel, welding-ready)
  • Flow Channel：304/316L Stainless Steel (smooth mirror-polished finish, dead-space-free)
  • Surface Finish：Mechanical/Electropolishing (sanitary-grade, Ra ≤ 0.8 μm /0.4 μm)
Product Parameter Details
  • Size：DN15-DN100, with a full range of reducing configurations
  • Working Pressure： 0.1-1.6 MPa
  • Working Temperature：-20°C to 120°C
  • Connection Type： Fully welded connection
  • Surface Finish： Mirror polishing, Ra ≤ 0.8 μm; electropolishing available, Ra ≤ 0.4  μm
  •  Structural Design：The product adopts an integrated sanitary reducing tee structure with welded connections. The main pipe and branch pipe have different diameters, allowing the fitting to connect pipelines of different sizes while providing smooth fluid diversion and merging.
  • Pressure Resistance：The one-piece forged structure provides high mechanical strength and pressure resistance. With noadditional connection joints or mechanical fastening points, the product is suitable for long-termoperation in high-pressure and high-temperature clean pipeline systems.
  • Product Functions：The product is mainly used for pipeline branching, fluid diversion and merging, and connectionbetween different pipe diameters. The smooth internal flow channel helps reduce turbulence and pressure loss during fluid transportation.
  •  Application Levels：The product is suitable for sanitary applications in the food, beverage, dairy, pharmaceutica,biotechnology, and fine chemical industries.

Digital advantages

  •  1. Precision CNC Control: CNC machining ensures accurate dimensions, consistent specifications and reliable welding compatibility.
  •  2. Full Quality Traceability: Production and inspection data are digitally recorded to ensure complete product traceability.
  •  3. Fast Customization Capability: 3D modeling enables rapid adjustment of pipe diameters, wall thicknesses, bevel dimensions, and customized structures.
  •  4. Intelligent Process Monitoring: Real-time monitoring of key manufacturing parameters helps maintain consistent product quality and surface finish.
  • 5. Smart Specification Matching: Digital specification management improves order accuracy and reduces mismatched specifications and rework risks.
stainless steel tri clamp short outlet pipe tee

Feature (F)、Advantage (A)、Benefit (B)
  1.  Raw Materials:
  • F: 304/316L sanitary-grade stainless steel is used for the tee body, main pipe, and branch pipe, with one-piece precision forging and forming.
  • A: The material provides excellent corrosion resistance, oxidation resistance, and resistance to acidic, alkaline, CIP cleaning agents, and high-temperature steam.
  • B: It ensures long-term hygienic operation, reduces contamination risks, and extends the service life of the pipeline system.
  1. Processing Technology:
  • F: The product uses CNC precision machining for the welding bevels and internal and externalelectropolishing to achieve a surface roughness of Ra s 0.4 um.
  • A: Precision processing provides accurate bevel dimensions, smooth internal surfaces, uniform wall thickness, and sanitary flow channels without dead corners.
  • B: It improves welding accuracy, cleaning efficiency, and overall pipeline reliability while reducinginstallation and maintenance risks.
  1. Structural Design:
  • F: The tee adopts an integrated reducing structure with smooth arc transitions at the three-way junction and no unnecessary internal protrusions or material accumulation areas.
  • A: The optimized flow channel reduces turbulence and pressure loss while providing stablemechanical strength and reliable performance.
  • B: It improves fluid transportation efficiency, reduces energy consumption, and supports long-term stable operation of sanitary production lines.
  1. Feature Advantages:
  • F: The product combines high cleanliness, corrosion resistance, pressure resistance, smooth flowguidance, and reliable welded connections.
  • A: It reduces contamination, material accumulation, leakage risks, and flow resistance in sanitarypipeline systems.
  • B:It improves production stability, reduces downtime and maintenance requirements, and lowers long-term operatingcosts.
  1. Sealing Ring Features:
  • F: Fully welded one-piece sealed structure with no gaskets, clamps, or moving sealing components, creating a completely enclosed pipeline system through seamless welding.
  • A: Completely eliminates the drawbacks of quick-clamp tees that rely on gaskets forsealing and are prone to aging, displacement, leakage, and periodic replacement. Iteliminates sealing weak points and provides resistance to high-temperature steam sterilization and acid/alkali cleaning, with zero sealing-component wear and no sanitary dead corners.
  • B: Ensures sterile, leak-free operation throughout the entire system without frequent replacement of sealing components, preventing material leakage from contaminating the production area and reducing material waste while meeting the stringent requirements of high-end pharmaceutical, fine chemical, and sterile food production.

stainless steel tri clamp short outlet pipe tee

Connection Type：Fully welded sanitary connection
Processing Method：One-piece forging, CNC bevel machining, precision processing, and complete dimensional inspection
Surface Finish：Mirror polishing Ra ≤ 0.8 μm; electropolishing Ra ≤ 0.4 μm
Material：04/316L Stainless Steel
Size Range：DN15-DN100
Working Pressure：0.1-1.6 MPa
Working Temperature：-20°Cto120°C
