Stainless Steel small food pharmaceutical bitumen jm series Colloid mill

TheStainless Steel small food pharmaceutical bitumen jm series Colloid mill is a high-efficient fluid grinding and homogenizing device developed for the food, pharmaceutical, dairy, beverage, daily chemical, and fine chemical industries. The equipment is made of 304/316L sanitary stainless steel and integrates a high-speed electric drive system, a high-precision rotor-stator grinding assembly, and sanitary quick-clamp connections. It can perform ultra-fine grinding, homogenization, emulsification, dispersion, and mixing of materials.

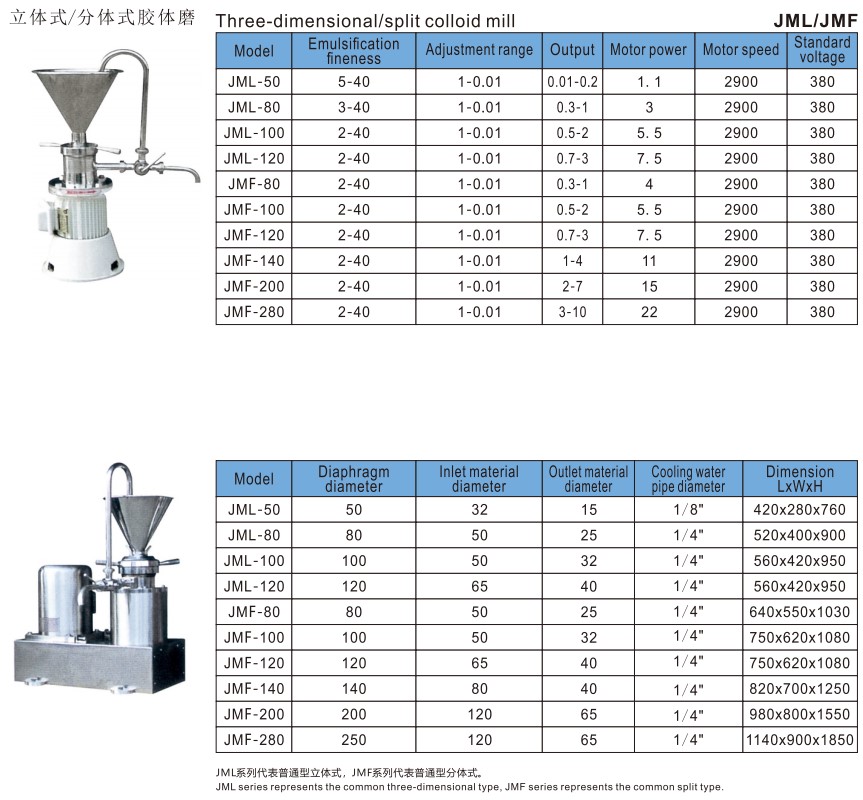

Based on the structural configuration, two main types are available:

• Vertical colloid mill: The motor and grinding chamber are arranged vertically as an integral unit. It has a small footprint and a compact structure, suitable for workshops with limited space, especially for small to medium-sized production lines or stand-alone operations.small food colloid mill

• Split colloid mill:The motor and grinding chamber are independently arranged, providing excellent heat dissipation and stronger continuous operation stability. It is suitable for large-scale continuous production lines or high-load conditions.small food colloid mill

Both types use a high-speed rotor-stator shearing and grinding principle to process liquids, semi-fluids, and high-viscosity materials to micron-level fineness. They are widely used for processing jam, peanut butter, dairy products, honey, chili sauce, cosmetics, pharmaceutical liquids, and chemical slurries.

The equipment features sanitary quick-clamp connections for easy disassembly and cleaning, supports CIP online cleaning, and meets the requirements of modern clean production systems. It is a key core device in the field of sanitary fluid processing.

Product Comparison

Compared with ordinary colloid mills and traditional equipment:

• Compared with traditional crushing equipment, this product uses a high-speed rotor-stator shearing and grinding structure to achieve higher precision ultra-fine homogenization, resulting in smoother material texture.

• Compared with ordinary emulsifying equipment, this product combines crushing, emulsifying, homogenizing, and dispersing functions, adapting to more complex fluid material processing needs.

• Compared with ordinary industrial colloid mills, this product adopts a sanitary stainless steel flow path and quick-clamp design for more thorough cleaning, making it more suitable for high-cleanliness industries such as food and pharmaceuticals.pharmaceutical colloid mill

Vertical vs. split type:

• Vertical colloid mill: Small footprint, compact structure, suitable for space-constrained workshops; easy installation, flexible for stand-alone operation. However, under continuous high-load operation, motor heat dissipation is slightly inferior to the split type.

• Split colloid mill: The motor and grinding chamber are separated, providing excellent heat dissipation, low temperature rise, and long-term continuous stable operation. Maintenance is more convenient because the motor and pump head can be serviced separately. However, it requires a larger footprint.pharmaceutical colloid mill

 Working Principle

The stainless steel sanitary electric quick-clamp colloid mill mainly consists of a motor drive system, rotor-stator grinding assembly, feed hopper, grinding chamber, discharge system, and sanitary quick-clamp connections.

During operation:

• The motor drives the rotor at high speed.

• Material enters the grinding area through the upper feed hopper or inlet.

• High-speed shearing, friction, impact, and high-frequency vibration occur between the rotor and stator.

• The material is rapidly crushed, emulsified, and homogenized.

• After passing through multiple stages of grinding teeth, a uniform and fine fluid is formed.

• The finished product is continuously discharged through the outlet.

Structural differences:

• Vertical type: Material flows vertically downward, assisted by gravity, providing smooth flow and a small footprint.

• Split type:The motor and grinding chamber are arranged horizontally and connected by a coupling, offering good heat dissipation and suitability for high-power, long-duration operation.
