Stainless Steel motorized 3 way ball valve controls water tank float level efficiently ball valve

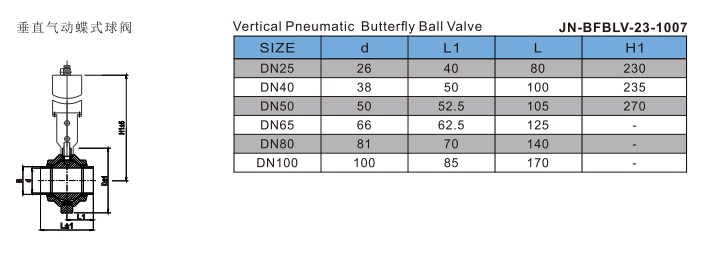

JN-BFBLV-23-1007
Size: DN15 – DN150 (1″– 6″, O.D. Ф12.7 – Ф152.4)
Grade: High-quality stainless steel SUS304 or SUS316L, selected to suit various corrosion resistance needs
Standard: Conforms to ISO, DIN, IDF, SMS, 3A, and other internationally recognized standards
Working Pressure: 1.0 MPa (PN10 bar)
Test Pressure:
Shell hydrostatic test: 2.4 MPa
Hydrostatic seat seal test: 1.8 MPa
Temperature Range: -10℃ to +150℃ (steam sterilization up to 150℃ for max 20 min)
PTFE Seals: Standard PTFE seats offer excellent sealing performance, corrosion resistance, and self-lubricating properties, suitable for a wide temperature range
Viton Seals: Optional Viton (FPM) O-rings are available for applications requiring enhanced resistance to high temperatures and aggressive chemicals
Grade: High-quality stainless steel SUS304 or SUS316L, selected to suit various corrosion resistance needs
Standard: Conforms to ISO, DIN, IDF, SMS, 3A, and other internationally recognized standards
Working Pressure: 1.0 MPa (PN10 bar)
Test Pressure:
Shell hydrostatic test: 2.4 MPa
Hydrostatic seat seal test: 1.8 MPa
Temperature Range: -10℃ to +150℃ (steam sterilization up to 150℃ for max 20 min)
PTFE Seals: Standard PTFE seats offer excellent sealing performance, corrosion resistance, and self-lubricating properties, suitable for a wide temperature range
Viton Seals: Optional Viton (FPM) O-rings are available for applications requiring enhanced resistance to high temperatures and aggressive chemicals
Quantity:
Recommend Products
Stainless Steel high pressure motorized ball valve actuates water tank float directly ball valveSize: DN15 – DN150 (1″– 6″, O.D. Ф12.7 – Ф152.4) Grade: High-quality stainless steel SUS304 or SUS316L, selected to suit various corrosion resistance needs Standard: Conforms to ISO, DIN, IDF, SMS, 3A, and other internationally recognized standards Working Pressure: 1.0 MPa (PN10 bar) Test Pressure: Shell hydrostatic test: 2.4 MPa Hydrostatic seat seal test: 1.8 MPa Temperature Range: -10℃ to +150℃ (steam sterilization up to 150℃ for max 20 min) PTFE Seals: Standard PTFE seats offer excellent sealing performance, corrosion resistance, and self-lubricating properties, suitable for a wide temperature range Viton Seals: Optional Viton (FPM) O-rings are available for applications requiring enhanced resistance to high temperatures and aggressive chemicalsJN-3WBLV 1007
Stainless Steel motorized floating ball valve replaces manual handlefree units permanently ball valveSize: DN15 – DN150 (1″– 6″, O.D. Ф12.7 – Ф152.4) Grade: High-quality stainless steel SUS304 or SUS316L, selected to suit various corrosion resistance needs Standard: Conforms to ISO, DIN, IDF, SMS, 3A, and other internationally recognized standards Working Pressure: 1.0 MPa (PN10 bar) Test Pressure: Shell hydrostatic test: 2.4 MPa Hydrostatic seat seal test: 1.8 MPa Temperature Range: -10℃ to +150℃ (steam sterilization up to 150℃ for max 20 min) PTFE Seals: Standard PTFE seats offer excellent sealing performance, corrosion resistance, and self-lubricating properties, suitable for a wide temperature range Viton Seals: Optional Viton (FPM) O-rings are available for applications requiring enhanced resistance to high temperatures and aggressive chemicalsJN-3WBLV 1005
Stainless Steel handlefree lead ball valve suits 1/2" connections for slurry service ball valveSize: DN15 – DN150 (1″– 6″, O.D. Ф12.7 – Ф152.4) Grade: High-quality stainless steel SUS304 or SUS316L, selected to suit various corrosion resistance needs Standard: Conforms to ISO, DIN, IDF, SMS, 3A, and other internationally recognized standards Working Pressure: 1.0 MPa (PN10 bar) Test Pressure: Shell hydrostatic test: 2.4 MPa Hydrostatic seat seal test: 1.8 MPa Temperature Range: -10℃ to +150℃ (steam sterilization up to 150℃ for max 20 min) PTFE Seals: Standard PTFE seats offer excellent sealing performance, corrosion resistance, and self-lubricating properties, suitable for a wide temperature range Viton Seals: Optional Viton (FPM) O-rings are available for applications requiring enhanced resistance to high temperatures and aggressive chemicalsJN-NRTBLV 1002
Stainless Steel motorized 3 way ball valve controls water tank float level efficiently ball valve
Thestainless steel sanitary-grade intelligent pneumatic threaded tee ball valve is a high-cleanliness, intelligent multi-directional on/off control valve, mainly used in the tee positions of fluid pipelines in food, pharmaceutical,motorized ball valve water tank foat ball valve and fine chemical industries. It uses an intelligent pneumatic actuator to drive the valve core to rotate 90°, realizing the diversion, merging, or reversal of three media streams. The threaded interface is suitable for compact pipeline installations and features remote control, precise positioning, and data feedback functions. Structurally, it is available in L-type/T-type flow channels, and the sealing rings can be selected from EPDM/PTFE/silicone, etc. The intelligent pneumatic actuation method meets the automated, intelligent fluid control and hygiene safety requirements under aseptic conditions, ensuring efficient, stable, and residue-free production processes.
Ourstainless steel sanitary-grade intelligent pneumatic threaded three-way ball valve differs from its competitors in several key aspects: It employs an intelligent pneumatic actuator with built-in position feedback and precise control, enabling stepless adjustment from 0-90° and remote monitoring. In contrast, ordinary manual/pneumatic ball valves only provide on/off control and lack intelligent adjustment. While conventional quick-install ball valves offer convenient assembly and disassembly, their applicability is limited. Our threaded interface is suitable for small-diameter, compact installations, offering a compact structure and reliable sealing. Traditional three-way ball valves have higher flow resistance; our optimized flow path design balances the advantages of three-way reversal and straight-through flow resistance, resulting in superior cost-effectiveness and adaptability. Made with 316L stainless steel and FDA/GMP certification, our products feature intelligent pneumatic drive and full-size thread compatibility, significantly outperforming competitors in terms of intelligence, hygiene, and compact design, meeting the stringent standards of industries such as biopharmaceuticals and high-end food processing.
Accessories
Component & Material Table
- Valve Body & Ball：304/316L Stainless Steel (sanitary-grade forging)
- Valve Seat & Seal Ring：PTFE/EPDM (food-grade, corrosion-resistant)
- Manual Handle：304 Stainless Steel/Aluminum Alloy (anti-slip)
- Quick-clamp Fitting：304/316L Stainless Steel (polished finish)
- Valve Stem：304/316L Stainless Steel (wear-resistant)
Product Parameter Details
- Material：Main body: 304/316L stainless steel; Seals: food-grade PTFE/EPDM; Handle: 304 SS/aluminum alloy
- Structure Form：Standard: three-way L/T port, clamp-type quick-install; Optional: jacketed structure for temperature control
- Pressure Rating：PN10/PN16; 150PSI (working pressure); Test pressure: 1.5× working pressure
- Function：Flow direction switching, media merging, fluid diversion; on-off control for hygienic pipelines
- Grade Classification：Hygiene grade: 3A/DIN 11851; Industry grade: sanitary-grade (for food/pharma), no industrial-grade option
- Specification Match：Standards: DIN (German), SMS (Swedish), 3A (American), ISO (international); Size range: 1/2"–4"
- Certification Grade：Hygiene certification: 3A, FDA; Safety certification: CE, ISO 9001
- Installation Direction：Horizontal/vertical installation (no flow direction restriction; handle upward for easy operation)
- Customization Service：Custom size (5"+), special seal material (Viton), jacketed structure; sample support for testin
Digital advantages
1.Intelligent and Precise Control:Utilizes a high-precision intelligent pneumatic actuator with high adjustment resolution, achieving stepless precise control from 0° to 90° with a positioning deviation ≤ ±1°, suitable for high-precision batching and proportioning processes.
2.Compliant and Traceable Materials: Made of AISI 316L low-carbon stainless steel, each piece comes with a unique traceability code. Scanning the code allows access to 12 core data points, stored in the cloud for 15 years. 100% material compliance rate, meeting FDA/GMP and EU CE export standards.
3.Outstanding Sealing and Durability:The modified sealing ring has undergone 100,000 opening and closing adjustments without leakage, with a service life of 8,000 hours, 60% longer than conventional sealing rings, reducing spare parts replacement frequency.
4.Efficient Assembly and Disassembly for Cost Savings:Threaded connections require no tools for assembly and disassembly, with each operation taking only 30 seconds. Suitable for high-frequency cleaning and maintenance scenarios, reducing annual maintenance hours by 40% and lowering labor costs.
5.Strong high pressure adaptability: Rated working pressure 1.6MPa, 100% pass rate of pressure resistance test, can withstand 1000 cycles of 121℃ SIP sterilization without deformation, suitable for high pressure and high cleanliness production conditions.
Stainless Steel Sanitary Three-way Manual Quick-install Ball Valve
Feature (F)、Advantage (A)、Benefit (B)
1. Raw Materials
F: The valve body and valve core are forged from AISI 316L low-carbon sanitary stainless steel in one piece, without splicing or impurities. The raw material furnace number and material report are fully traceable. Thickened valve bodies and special materials can be customized.
A: The one-piece forging structure eliminates the risk of intergranular corrosion, is resistant to weak acids and alkalis, resists chloride ion corrosion, withstands thousands of CIP/SIP high-temperature sterilization cycles without deformation, and exhibits no harmful substance release. Mechanical properties are stable.
B: This design addresses the industry pain points of conventional ball valves, such as easy cracking during welding and uneven material distribution. It meets FDA/GMP compliance requirements, significantly extending product lifespan under high-pressure, high-frequency intelligent regulation conditions and reducing customer maintenance costs.
2. Manufacturing Process
F: The valve body and valve core are forged as a single piece without splicing welds. The flow channel undergoes ultra-smooth electrolytic polishing treatment, with a surface roughness Ra≤0.4μm. The valve core sealing surface is precision ground and polished, with coaxiality tolerance controlled within ±0.05mm.
A: The valve core and seat have extremely high fitting precision, ensuring no misalignment or wear of the seals during long-term operation. The ultra-smooth flow channel prevents media adsorption and eliminates cleaning blind spots, preventing microbial growth and media retention.
B: Completely solves the problems of adjustment errors and cleaning difficulties caused by rough flow channels and uneven sealing surfaces in conventional ball valves. Significantly simplifies the cleaning verification process, reducing cleaning time by more than 50%, ensuring compliance with high-cleanliness operating conditions.
3. Structural Design
F: Three-way straight-through flow channel, 90° rotation structure at the valve core center, rounded transition design without dead angles, threaded connection, compact one-piece forged structure, and flow channel optimized by fluid dynamics.
A: No dirt-trapping gaps or media retention dead angles, adaptable to smooth passage of three large flow rates, no turbulence, no pressure loss, low flow resistance in the straight-through structure, and precise three-way reversal achieved through intelligent pneumatic drive.
B: Avoids the industry pain points of low switching accuracy and complex installation of conventional three-way valves, ensuring the stability and accuracy of pipeline systems during multi-media switching. Adapts to large-scale, automated, and continuous production in clean areas, reducing unplanned downtime costs for customers.
4. Key Features and Advantages
F: Standard sanitary threaded interface, tool-free disassembly and assembly; all-stainless steel intelligent pneumatic actuator design with position feedback, precise positioning, and remote control functions; electrolytically polished valve body, free from dust accumulation, bacteria contamination, and leaks.
A: Worm gear drive with strong self-locking performance; stable adjustment angle without springback; quick-connect connection reduces single disassembly and assembly time by 70% compared to welded types; withstands repeated high-temperature CIP/SIP erosion, ensuring reliable sealing.
B: Solves the industry pain points of laborious switching, low accuracy, lack of intelligent feedback, and complex installation of conventional ball valves, significantly improving the automation level and maintenance efficiency of customer pipelines, reducing manual operation intensity and production energy costs.
5. Sealing Ring Features
F: FDA/GMP dual-certified food-grade and pharmaceutical-grade modified PTFE/EPDM sealing ring. The embedded sealing design prevents misalignment and media penetration. The sealing surface is ultra-precision machined to ensure a perfect fit.
A: The sealing ring will not age or fall off under long-term operating conditions. It fits seamlessly with the valve core, is resistant to high and low temperatures and corrosion, and maintains zero-leakage sealing performance even after tens of thousands of opening and closing adjustments and intelligent control.
B: Eliminates the industry pain points of conventional ball valve seals, such as easy aging, high leakage rate, and seal displacement during adjustment. Significantly reduces the frequency of seal replacement for customers, reduces spare parts replacement costs, and ensures stable operation in continuous production.
F: The valve body and valve core are forged from AISI 316L low-carbon sanitary stainless steel in one piece, without splicing or impurities. The raw material furnace number and material report are fully traceable. Thickened valve bodies and special materials can be customized.
A: The one-piece forging structure eliminates the risk of intergranular corrosion, is resistant to weak acids and alkalis, resists chloride ion corrosion, withstands thousands of CIP/SIP high-temperature sterilization cycles without deformation, and exhibits no harmful substance release. Mechanical properties are stable.
B: This design addresses the industry pain points of conventional ball valves, such as easy cracking during welding and uneven material distribution. It meets FDA/GMP compliance requirements, significantly extending product lifespan under high-pressure, high-frequency intelligent regulation conditions and reducing customer maintenance costs.
2. Manufacturing Process
F: The valve body and valve core are forged as a single piece without splicing welds. The flow channel undergoes ultra-smooth electrolytic polishing treatment, with a surface roughness Ra≤0.4μm. The valve core sealing surface is precision ground and polished, with coaxiality tolerance controlled within ±0.05mm.
A: The valve core and seat have extremely high fitting precision, ensuring no misalignment or wear of the seals during long-term operation. The ultra-smooth flow channel prevents media adsorption and eliminates cleaning blind spots, preventing microbial growth and media retention.
B: Completely solves the problems of adjustment errors and cleaning difficulties caused by rough flow channels and uneven sealing surfaces in conventional ball valves. Significantly simplifies the cleaning verification process, reducing cleaning time by more than 50%, ensuring compliance with high-cleanliness operating conditions.
3. Structural Design
F: Three-way straight-through flow channel, 90° rotation structure at the valve core center, rounded transition design without dead angles, threaded connection, compact one-piece forged structure, and flow channel optimized by fluid dynamics.
A: No dirt-trapping gaps or media retention dead angles, adaptable to smooth passage of three large flow rates, no turbulence, no pressure loss, low flow resistance in the straight-through structure, and precise three-way reversal achieved through intelligent pneumatic drive.
B: Avoids the industry pain points of low switching accuracy and complex installation of conventional three-way valves, ensuring the stability and accuracy of pipeline systems during multi-media switching. Adapts to large-scale, automated, and continuous production in clean areas, reducing unplanned downtime costs for customers.
4. Key Features and Advantages
F: Standard sanitary threaded interface, tool-free disassembly and assembly; all-stainless steel intelligent pneumatic actuator design with position feedback, precise positioning, and remote control functions; electrolytically polished valve body, free from dust accumulation, bacteria contamination, and leaks.
A: Worm gear drive with strong self-locking performance; stable adjustment angle without springback; quick-connect connection reduces single disassembly and assembly time by 70% compared to welded types; withstands repeated high-temperature CIP/SIP erosion, ensuring reliable sealing.
B: Solves the industry pain points of laborious switching, low accuracy, lack of intelligent feedback, and complex installation of conventional ball valves, significantly improving the automation level and maintenance efficiency of customer pipelines, reducing manual operation intensity and production energy costs.
5. Sealing Ring Features
F: FDA/GMP dual-certified food-grade and pharmaceutical-grade modified PTFE/EPDM sealing ring. The embedded sealing design prevents misalignment and media penetration. The sealing surface is ultra-precision machined to ensure a perfect fit.
A: The sealing ring will not age or fall off under long-term operating conditions. It fits seamlessly with the valve core, is resistant to high and low temperatures and corrosion, and maintains zero-leakage sealing performance even after tens of thousands of opening and closing adjustments and intelligent control.
B: Eliminates the industry pain points of conventional ball valve seals, such as easy aging, high leakage rate, and seal displacement during adjustment. Significantly reduces the frequency of seal replacement for customers, reduces spare parts replacement costs, and ensures stable operation in continuous production.
Stainless Steel Sanitary Three-way Manual Quick-install Ball Valve
Nominal Diameter：DN15~DN100 (1/2"~4")
Maximum Working Pressure：10bar (1.0MPa), hydrostatic test pressure 1.5MPa
Body Material：AISI 304, AISI 316L low carbon sanitary grade stainless steel, integral forged, custom thickened body availableModified PTFE (standard), food grade EPDM/silicone (optional), FDA & GMP certified
Seal Accessory：Modified PTFE (standard), food grade EPDM/silicone (optional), FDA & GMP certified
Seal Accessory：Modified PTFE (standard), food grade EPDM/silicone (optional), FDA & GMP certified
Working Temperature：Long-term: -20℃~150℃; Short-term SIP sterilization: ≤121℃
Applicable Medium：Pharmaceutical sterile liquid, food & beverage, biological products, fine chemical, dairy, CIP cleaning media
