Stainless Steel Micro-pore Microporous Multi-cartridge High Precision Sterile Micron Filter

JN-STN-23 1028-3
Size: DN15-DN200, 5"/10"/20"/30" cartridge
Grade: 304/316L SS
Standard: GB, HG, ANSI, ASTM
Working pressure: 1.0-10.0 MPa
Test pressure: 1.5×WP
Temperature: -40℃ ~ 150℃
PTFE seals: -180℃ ~ 260℃, full chemical resistance
Viton seals: -20℃ ~ 200℃, good elasticity
Quantity:
Contact Now
Stainless Steel Micro-pore Microporous Multi-cartridge High Precision Sterile Micron Filter

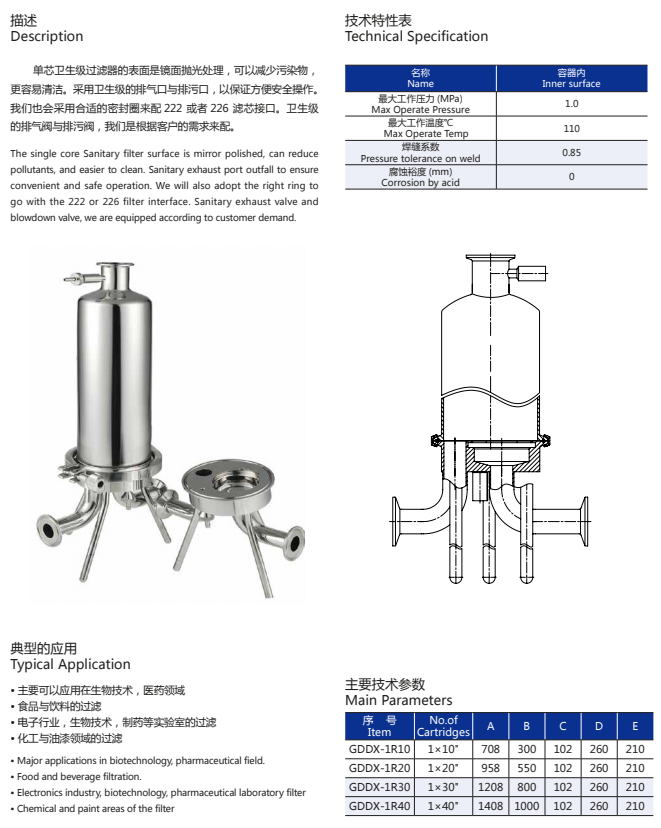

Overview The Stainless Steel Micro-pore Microporous Multi-cartridge High Precision Sterile Micron Filter is a core precision filtration equipment for high-cleanliness production environments such as biopharmaceutical aseptic fluid processing, medical aesthetic preparation refining, high-end food and beverage terminal filtration, drinking water purification, and daily chemical fluid sterilization and impurity removal. It is specifically designed for quick-connect piping connections in Class A clean areas, online aseptic filtration, CIP/SIP in-situ cleaning and sterilization, and long-cycle continuous production. The Micro-pore Filter is made entirely of AISI 304/316L low-carbon pharmaceutical-grade stainless steel, precision molded in one piece. Its core features include a high-precision pleated microporous filter element, a quick-connect clamp locking structure, a sanitary-grade dead-angle-free flow channel, an FDA-certified aseptic sealing system, and a full-flow channel ultra-mirror electrolytic polishing. The straight-through cylinder eliminates stagnation, blind spots, and harmful substance release, achieving high-precision solid-liquid separation, sterilization, particle removal, and colloid removal from 0.1~100μm. It is a core upgrade equipment for high-cleanliness fluid production lines to achieve stable filtration, aseptic compliance, and efficient operation and maintenance.Multi-cartridge Filter

The Stainless Steel Micro-pore Microporous Multi-cartridge High Precision Sterile Micron Filter represents a comprehensive upgrade in filtration accuracy, aseptic protection, ease of installation and disassembly, and cleanability.
Ordinary pipeline filters: low accuracy, only capable of coarse filtration, unable to remove bacteria or particles, lacking sanitary design;
Non-standard welded filters: numerous welds, many dead angles, prone to material accumulation and bacterial contamination, not suitable for quick installation and disassembly;
Non-quick-connect structure: flange connections are cumbersome to install and disassemble, filter element replacement is time-consuming, unsuitable for batch production;
Ordinary material filters: not resistant to acids and alkalis, not resistant to high-temperature sterilization, prone to corrosion and leaching, not compliant with GMP/FDA;
Non-compliant design: no polishing standards, no sealing certification, untraceable, unable to pass cleanroom audits.

Working Principle
TheStainless Steel Micro-pore Microporous Multi-cartridge High Precision Sterile Micron Filter consists of six main modules: quick-connect cylinder, clamp locking, inlet and outlet quick-connect interfaces, microporous pleated filter element, filter element socket, sealing components, and support feet/lifting rings. During operation, the fluid to be filtered enters the cylinder through the side/top inlet and, under pressure, passes evenly through the multi-layered pleated microporous filter element. Through a triple action of deep interception, surface sieving, and adsorption capture, particles, impurities, colloids, and microorganisms in the fluid are removed. The clean fluid flows out from the bottom inlet, while contaminants are trapped on the surface and inside of the filter element. For maintenance during shutdown, the quick-release clamps can be released with a single button, the top end cap can be quickly opened, and the filter element can be directly removed for replacement or cleaning. The entire flow path is smooth and straight, enabling CIP/SIP online cleaning and sterilization, with no dead corners, no residue, and a completely sealed and sterile process.


Accessories

 Component & Material Table
  • Structure:Single-core/multi-core quick-release structure, one-button quick-opening clamp, sanitary mirror-finish cylinder, filter element socket fixing, straight flow channel with no dead angles.
  • Pressure and Temperature Resistance: Rated working pressure ≤1.0MPa, short-term SIP sterilization ≤160℃, long-term operation -20℃~145℃, withstands ≥10000 CIP/SIP cycles.
  • Core Functions: Precision filtration, sterilization and particulate removal, clarification, colloid removal, solid-liquid separation, supports quick-release assembly/disassembly, online cleaning and sterilization.
  • Applicable Level: Highest sanitary level for pharmaceuticals/food, meets FDA/3-A/GMP/ASME BPE standards.
  • Hygiene Grade: Internal flow channel Ra≤0.4μm, no steps or dead angles, no exposed threads, no media retention, easy to clean.
  • Installation and Compatibility: Standard quick-release Tri-Clamp connection, vertical/horizontal installation, customizable inlet/outlet direction, number of filter elements, explosion-proof/insulation options.
  • Main Material: AISI 304/316L Low-carbon pharmaceutical-grade stainless steel, 316L, is the primary choice for aseptic applications.
  • Sealing materials include：FDA-certified silicone/EPDM/modified PTFE, ensuring sterility, no leaching, and resistance to high-temperature sterilization.

Digital advantages

  • 1.Real-time Filtration Status Monitoring: Equipped with a differential pressure gauge/sensor, it displays the filter element's clogging status in real time, prompting replacement and preventing over-clogging and pipe bursts.
  • 2. Full-Process Compliance Traceability: Records filtration pressure, temperature, flow rate, and CIP/SIP parameters, supporting GMP audit tracking.
  • 3.Standardized Modular Design: Filter element specifications are uniform, highly interchangeable, and process parameters can be fixed, ensuring batch consistency.
  • 4. Intelligent Interconnectivity: Supports 4-20mA, Modbus, OPC UA, and other protocols, and can be integrated into DCS/PLC/MES systems for remote monitoring and automatic control.
Stainless Steel Micro-pore Microporous Multi-cartridge High Precision Sterile Micron Filter

Feature (F)、Advantage (A)、Benefit (B)
  1. Raw Material:
  • F:The cylinder and filter element holder are made of AISI 316L low-carbon pharmaceutical-grade stainless steel in one piece, with no welding stress. Material reports and furnace numbers are fully traceable.
  • A:Resistant to strong acids and alkalis, resistant to chloride ion corrosion, resistant to high-temperature sterilization without deformation, no harmful substances are released, and it is stable in long-term use.
  • B:The source complies with GMP/FDA compliance requirements, eliminating material contamination, extending equipment life, and reducing audit risks.
  1. Processing Technology:
  • F:The inner surface is ultra-mirror electropolished, Ra≤0.4μm, with rounded transitions and no dead corners. The cylinder has high coaxiality and is burr-free.
  • A:Fluid does not adhere to the wall, does not absorb, is easy to clean, and has no CIP/SIP residue, preventing microbial growth.
  • B:Significantly simplifies cleaning validation, reduces downtime, and ensures aseptic stability in multiple batches of production.
  1. Structure Feature:
  • F:Clamp quick-opening design, quick-connect inlet and outlet interfaces, one-click disassembly and assembly, no tools required, filter elements are plug-and-play.
  • A: Filter replacement takes only minutes, installation is effortless, pipelines are leak-free, and it's suitable for frequent material change scenarios.
  • B:Solves the pain points of traditional filters: slow installation and disassembly, difficult maintenance, and long downtime, improving production efficiency.
  1. Core Accessory Feature:
  • F:Equipped with a high-precision pleated microporous filter element, large filtration area, selectable precision from 0.1 to 100μm, low pressure drop, and high flow rate.
  • A: Achieves clarification/sterilization requirements in a single filtration cycle, high filtration efficiency, long filter life, and is not easily clogged.
  • B:Improves product purity and pass rate, reduces material loss, and meets high-end aseptic production standards.
  1. Seal Ring Feature:
  • F:FDA-certified sanitary seal, embedded installation, 360° no dead angle seal, resistant to high temperature and pressure.
  • A:Zero leakage, aging resistant, withstands tens of thousands of sterilization cycles, and does not contaminate materials.
  • B:Prevents leakage and bacterial intrusion, reduces maintenance costs, and ensures continuous and reliable aseptic production.

Stainless Steel Micro-pore Microporous Multi-cartridge High Precision Sterile Micron Filter

Nominal Diameter：Standard sanitary clamp connection, compatible with GB, US and DIN standard sanitary pipelines, quick installation, tight sealing and wide versatility
Filter Element：Adopts full-automatic CNC turning, precision cutting, bending shaping and seamless integral welding with high precision size and regular structure
Filtration Accuracy：Internal and external mirror polishing, optional electrolytic polishing, smooth surface without dead corners, easy to clean and sterilize
Max Working Pressure：Forged and cold-rolled stainless steel plate integral forming, dense and uniform material, pressure-resistant, durable and not easy to deform
Working Temperature：Online pipeline installation, supports horizontal and vertical mounting, detachable, reusable and easy for cleaning
Body Material：Standard food-grade silicone, optional PTFE, high and low temperature resistance, corrosion resistance for various fluid media
Connection：Clamp compression end face sealing with uniform stress, leak-proof, no sanitary dead corners, meets hygienic production standards
Seal Material：Standard food-grade silicone, optional PTFE, high and low temperature resistance, corrosion resistance for various fluid media
Sanitary Standard：Clamp compression end face sealing with uniform stress, leak-proof, no sanitary dead corners, meets hygienic production standards
