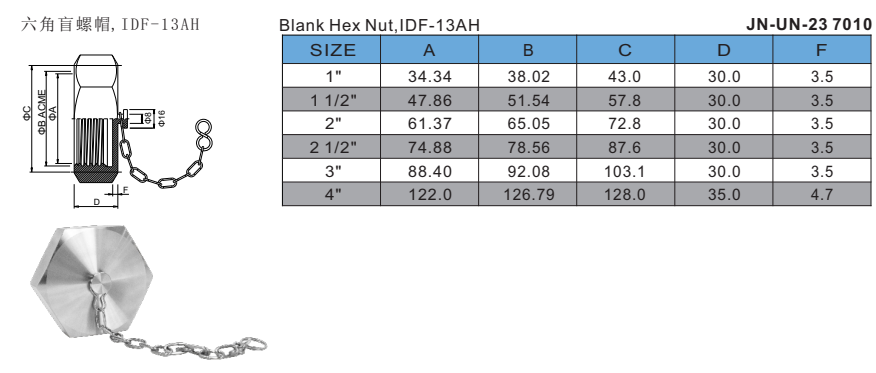

Stainless Steel ductile iron Blank Hex Nut Union

JN-UN-23 7010
Size: 1/2" – 4"
Grade: SS304, SS316L
Standard: DIN, SMS, 3A, ISO, ANSI
Working pressure: 1.0 – 1.6 MPa
Test pressure: 1.5 × working pressure
Temperature Range: -20℃ ~ +180℃
PTFE seals: Food-grade, corrosion-resistant, good sealing performance, non-toxic and pollution-free
Viton seals: High temperature resistant, anti-aging, wear-resistant, suitable for harsh working conditions
Quantity:
Contact Now
Recommend Products
Stainless Steel ductile iron Blank Hex Nut Union

Sanitary union is a blind sealing pipe fitting with a hexagonal nut for easy locking. It is mainly used in sanitary and industrial pipelines, installed at pipe ends or unused branch ports to achieve reliable dead-end sealing and prevent medium leakage. Its core function is to close pipeline ports tightly while facilitating quick disassembly for maintenance. Common types include sanitary-grade Blank Hex Nut Union (complying with 3A/DIN standards) and industrial-grade Blank Hex Nut Union, suitable for food, pharma, chemical and fluid pipeline systems.

Blank Hex Nut Union is a blind sealing fitting for pipe ends, while ordinary unions are only for pipe connection. It integrates sealing and locking, unlike standard unions. Our products adoptintegral forgingandmirror polishing, with higher precision and durability. We use food-grade PTFE/Viton seals and strictly follow 3A/DIN standards. Compared with others, our blank hex nut unions provide stronger sealing, higher pressure resistance and longer service life, ensuring zero leakage in hygienic and industrial pipelines.


Accessories

 Component & Material Table
  • Blank Hexagon Nut: 304/316L Stainless Steel
  • Union Body: 304/316L Stainless Steel
  • Seal Ring: PTFE, EPDM, Viton (Food-grade)
  • Gasket:Food-grade PTFE
Product Parameter Details
  • Material:Main body & nut: 304/316L Stainless Steel; Seals & gaskets: Food-grade PTFE/EPDM/Viton
  • Structure Form: Hexagon nut locking structure, blank sealing design, no jacket
  • Pressure: Working pressure 1.0–1.6 MPa; Test pressure 1.5× working pressure
  • Temperature Range: -20℃ ~ +180℃
  • Function:Pipe end dead-end sealing, dust-proof and leak-proof, easy disassembly for maintenance
  • Grade:Sanitary grade, Industrial grade (Chemical grade optional)
  • Specification Match: DIN, SMS, 3A, ISO, ANSI, NPT/BSP; Size: 1/2"–4"
  • Certification:Hygiene: 3A, FDA; Safety: CE, ISO9001
  • Installation Direction: Horizontal & vertical (no direction restriction)
  • Customization:Custom size (5"+), special seal material, custom thread, sample available
