Stainless Steel double rotary food triple Screw vacuum pump

JN-SP -261001-9
Size: DN25–DN150.
Grade: SS304/SS316L.
Standard: DIN, SMS, 3A.
Working pressure: 0.6–1.6 MPa.
Test pressure: 2.4 MPa.
Temperature Range: -20°C to 180°C.
PTFE seals: chemical resistance.
Viton seals: high-temperature sealing durability
Quantity:
Contact Now
Stainless Steel double rotary food triple Screw vacuum pump

TheStainless Steel double rotary food triple Screw vacuum pumpis a positive displacement pump madeof 304/316Lstainless steel with hygienic quick-clamp connections. It relies on the rotation of ascrew rotor inside a stator or pump chamber to convey media. It offers pulsation-free, low-shearhandling of high-viscosity media, soft particles, or shear-sensitive products. The food screw pump is typicallyinstalled in clean fluid conveying pipelines in the food, pharmaceutical, daily chemical, andbioengineering industries, used for conveying, batching, and filling thick pastes, sauces,pharmaceutical liquids, creams, fermentation broths, and similar media.
Based on the screw configuration and pump chamber design, two main types are available:
G-type progressive cavity pump (single screw):Uses an eccentric single rotor and an elasticstator. Simple construction, good self-priming capability, suitable for medium-to-high viscosityand particle-containing media. High cost-effectiveness
Transparent-window twin-screw pump:Uses a twin-screw meshing structure with a transparentpump chamber that allows real-time observation of media flow and screw operation. Suitable forclean applications where process monitoring is critical.
Both types can be configured with different flow/pressure ratings, stator/chamber materials, sealtypes, and motor options (variable frequency / explosion-proof). Versions include basic conveyingvariable speed, explosion-proof, and high-viscosity special types to meet various applicationrequirements.

Comparison with ordinary screw pumps:

  • Ordinary screw pumps are often made of cast iron or non‑hygienic stainless steel, with threaded or flanged connections that have cleaning dead legs, making them unsuitable for high‑cleanliness applications like food and pharmaceuticals. Our series uses 304/316L hygienic stainless steel and quick‑clamp connections for dead‑leg‑free cleaning and rapid disassembly, perfectly adapted to clean applications.

  • Our triple screw pump further improve conveying stability and wear life through precision‑machined rotors and high‑elasticity food‑grade stators / high‑precision twin screws. Optimized mechanical seals and polished flow paths reduce product residue and leakage risk. Customizable port sizes, motor configurations, and hygienic accessories are available. Overall cleanliness, durability, and application adaptability are superior to similar products on the market.

Progressive cavity pump (single screw) vs. twin‑screw pump:

  • The single‑screw pump is simpler, lower cost, has good self‑priming, and suits soft particles, high viscosity, and medium‑low pressure. It has slightly more pulsation than the twin‑screw.

  • The twin‑screw pump delivers even smoother, nearly pulsation‑free flow with even lower shear. The transparent window allows real‑time monitoring. It is ideal for applications demanding extremely smooth conveying and process visibility, though at a higher cost.

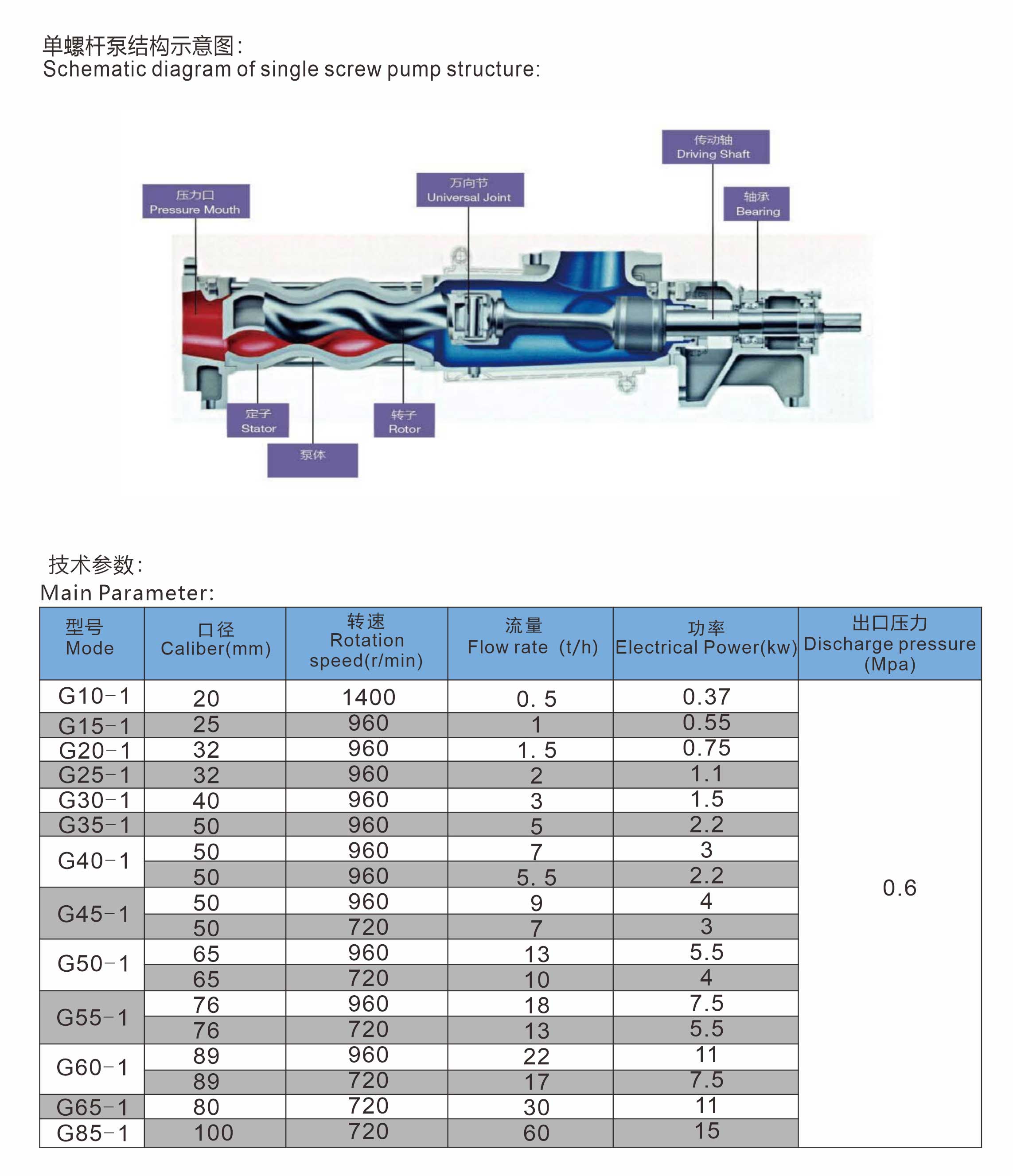

G‑type progressive cavity pump (single screw): Composed of a stainless steel pump body, eccentric rotor, rubber stator, hygienic quick‑clamp connections, mechanical seal, motor, and stainless steel base. It connects quickly and dead‑leg‑free to hygienic pipelines, tanks, and equipment via clamp fittings and food‑grade seals. During operation, the motor drives the rotor to rotate eccentrically inside the stator, forming continuous sealed cavities that move media from inlet to outlet, achieving smooth, pulsation‑free conveying.

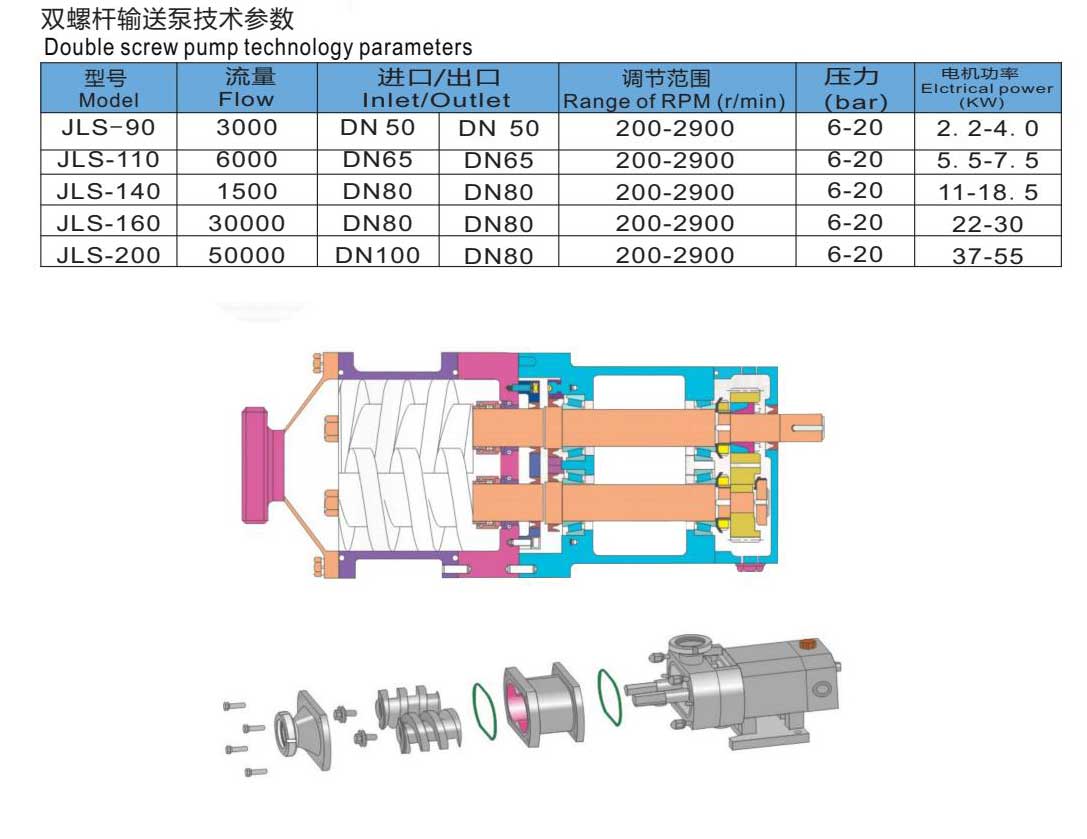

Transparent‑window twin‑screw pump: Composed of a stainless steel pump body, transparent pump chamber, twin screw rotors, hygienic quick‑clamp connections, mechanical seal, motor, and frame. The motor drives the twin screws to rotate in mesh, creating continuous volumetric chambers that draw in and push out media. The conveying is pulsation‑free with extremely low shear. The transparent window allows direct observation of media flow and screw operation, facilitating troubleshooting and process monitoring



Accessories

 Component & Material Table
  • Pump Body ：304/316L Stainless Steel
  • Core Functions：PTFE/EPDM (food-grade, corrosion-resistant)
  • Manual Handle：High-viscosity conveying, soft particleconveying, low-shear pulsation-free,CIP cleaning, metered conveying,media transfer
  • Operating Temperature：-10°C ~ 90°C (special stator up to120°C)，-10°C~120°C (window and seallimited)
  • Pressure Range：0.3~1.2 MPa standard, customhigh-pressure up to 1.6 MPa，0.4~1.6 MPa standard, customhigh-pressure up to 2.0 MPa
Product Parameter Details
  • Flow Rate：0.1~50 m2/h, multiple models，0.5~50 m2/h, multiple options
  • Body Material：SPump body 304/316L stainless steel,stator food-grade rubber, seals food-grade，Pump body 304/316L stainless steel,window high-transparency temperature-resistant engineering plastic, twin screws stainless steel
  • Installation & Fit：Horizontal, slight tilt optional
  • Hygiene Level：Compliant with GMP, FDA, 3A;standard safety / explosion-proof safety
  • Applicable Grade：Food hygienic, pharmaceutical aseptic,daily chemical clean, light finechemical

Digital advantages

  • Intelligent monitoring and remote visibility: Built‑in high‑precision sensors collect key data such as flow, pressure, temperature, and vibration. The twin‑screw pump can also use its transparent window plus external sensor modules for real‑time feedback. Data is remotely visible on mobile phones/computers, making equipment status transparent and eliminating traditional manual inspection.
  • Energy saving and soft start: Equipped with a variable frequency control system, speed adjustable from 10% to 100% – on‑demand feeding. Saves >20% energy compared to fixed‑speed pumps. Soft start reduces mechanical shock.
  • Multiple protections and early warning:Integrated dry‑run, over‑pressure, over‑temperature, and overload protection. Automatic alarm/shutdown on abnormality. Early warning accuracy ≥95%. Predicts stator wear (single screw) or screw/bearing aging (twin screw), avoiding sudden production stoppage.
  • Data traceability and compliance: Operating data is automatically stored and traceable, supporting GMP/FDA audits. Generates records of CIP/SIP cleaning, temperature, and pressure curves. Meets digital compliance requirements of food and pharmaceutical hygienic grades. The twin‑screw pump also enables full electronic traceability (material batch, processing lot, test reports, QR code traceability).
  • Industrial interconnection and smart maintenance:Supports PLC/DCS communication protocols for integration into factory automation systems. Remote start/stop, speed adjustment, and diagnostics reduce on‑site labor. Adapts to Industry 4.0 and smart workshop management. The twin‑screw pump can automatically record running hours and maintenance points, predict component wear, and assist in planning maintenance and spare parts.
Stainless Steel double rotary food triple Screw vacuum pump

Feature (F)、Advantage (A)、Benefit (B)
  1. Raw Material:
  • F:  Pump body, rotors (and twin screws) are made of 304/316L hygienic stainless steel.Single-screw pump stator uses food-grade EPDM/NBR/silicone. Twin-screw pump window useshigh-strength, corrosion-resistant transparent engineering plastic. Seals are PTFE, food-gradesilicone, etc. All raw materials meet FDA and GMP standards - non-toxic, non-leaching.
  • A: Materials resist corrosion, acids/alkalis, and high-temperature cleaning. They do not rust orcontaminate products. Rotors have high strength and wear resistance; stators have stableelasticity and long life. The transparent window is aging-resistant and provides clear visibility.Compared with ordinary cast iron, low-grade stainless steel, or carbon steel pumps, ourmaterials solve the problems of poor quality, easy chipping, corrosion, and lack of operationvisibility.
  • B:  Customers achieve clean, safe production, preventing product contamination, discoloration,or degradation. They easily pass hygiene audits in food, pharmaceutical, and daily chemicalindustries, reducing scrap rates and quality inspection risks. The transparent window helpsdetect problems early, reducing unexpected failures.
  1. Processing Technology:
  • F:  Entire pump is CNC precision machined, integrally formed, with precision matched grindingThe pump chamber is mirror polished inside and out, with no weld seams or dead legs.Manufactured to strict hygienic precision standards.
  • A:  High machining precision and uniform clearances. No burrs or material accumulation deadzones inside the pump. Smoother operation, lower pulsation, lower noise, and CIP cleanable.Overcomes the rough machining, difficult cleaning, and unstable conveying of ordinary pumps,reducing residue and flow fluctuations.
  • B: Thorough cleaning without frequent disassembly saves labor and downtime, preventscross-contamination, and significantly improves product yield and production stability.
  1. Structure Feature:
  • F: Single screw: G-type progressive cavity design, hygienic quick-clamp connections, modularintegrated construction - simple, compact, supports rapid disassembly and maintenance.Optional jacketed insulation, variable frequency, explosion-proof. Twin screw: Electric-driven twin-screw positive displacement design, integrated transparentpump chamber, standard hygienic quick-clamp connections, modular design, supports multipleinstallation orientations.
  • A: Quick-clamp connections require no welding, are very fast to assemble/disassemble, andare compatible with national, US, and German hygienic pipe standards. The positivedisplacement design provides low shear, pulsation-free flow (twin-screw nearly zero pulsation),and strong self-priming (single screw stronger). Compared to centrifugal pumps, they can handlehigher viscosity and soft particles, overcoming the problems of clogging, stratification, andproduct damage. The transparent window on the twin-screw pump enables real-time observationof flow and screw operation for quick troubleshooting of clogs or air ingress.
  • B: Customers save time and effort in installation, maintenance, part replacement, and cleaning.The pumps adapt to complex materials like sauces, creams, pharmaceutical liquids, andfermentation broths - one pump fits multiple conditions, offering strong versatility. Thetransparent window improves process monitoring and reduces unplanned downtime and rapid diagnosis.
  1. Core Accessory Feature:
  • F: Electric positive displacement conveying, stable pressure, uniform flow. Can run 24/7.Supports variable frequency speed control, explosion-proof configuration, high/low temperatureoperation. Suitable for high-viscosity, particle-containing, shear-sensitive media. Single screwhas strong self-priming; twin screw offers smoother conveying and a transparent window.
  • A:  Extremely low shear, does not damage product activity or emulsion structure. Stable,pulsation-free flow (twin-screw nearly zero pulsation), constant pressure. High durability, lowfailure rate. Overcomes the problems of flow fluctuation, product damage, and frequentdowntime of traditional pumps. Improves conveying accuracy and production continuity.
  • B:Preserves product taste, activity, consistency, and quality. Higher accuracy in filling,batching, and conveying, reducing product loss and rejects. Greatly improves customerproduction quality and capacity stability. The transparent window facilitates process optimization
  1. Seal Ring Feature:
  • F:Multi-seal combination of food-grade silicone, EPDM, PTFE with high-quality mechanicalseals. Quick-clamp faces are flat and fit tightly. The seal structure is compact with no leakagegaps.
  • A:Resists temperature, acids/alkalis, and repeated high-temperature sterilization. Not prone toaging, hardening, or cracking. Long-lasting sealing performance reduces leaks. Overcomes theshortcomings of ordinary seals (leakage, aging, frequent replacement).
  • B: No leakage, no contamination throughout production - cleaner workshop. Greatly reducesseal replacement costs and maintenance frequency, lowering equipment operating expenses.

Stainless Steel double rotary food triple Screw vacuum pump

Connection Type：Sanitary quick clamp connection
Production & MachiningProcess：CNC precision machining, turning,drilling, full welding, precisiongrinding
Surface Treatment：Mirror polishing, electropolishing,pickling and passivation
Raw Material Processing：Seamless pipe cutting, plateforming, forging
Operation & Installation Mode：Horizontal installation, continuousfluid conveying, CIP online cleaning
Gasket Material：Food-grade Silicone, EPDM, PTFE,FKM
Sealing Method：Clamp compression sealingmechanical shaft sealing
