Stainless Steel 45 degree sanitary buttweld pipe elbow

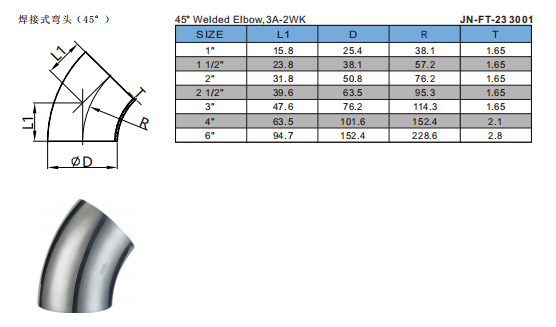

JN-FT-233001-1
Size: DN15 – DN150 (1″–6″, O.D. Ф12.7 – Ф152.4)
Grade: Manufactured from premium stainless steel SUS304 or SUS316L, providing excellent corrosion resistance, mechanical strength, and long service life for sanitary applications.
Standard: Conforms to ISO, DIN, IDF, SMS, 3A, and other internationally recognized sanitary standards, ensuring high hygiene requirements and compatibility with various process systems.
Working Pressure: Designed for a maximum working pressure of 1.0 MPa (PN10 bar), suitable for a wide range of sanitary fluid conveying applications.
Test Pressure: Shell hydrostatic test pressure: 2.4 MPa; Seal integrity test pressure: 1.8 MPa, ensuring reliable strength, durability, and leak-free performance.
Temperature Range: -10℃ to +150℃, suitable for high-temperature cleaning and steam sterilization processes up to 150℃ for a maximum of 20 minutes.
PTFE Seals: Standard PTFE sealing materials offer excellent chemical resistance, low friction performance, and superior temperature adaptability, ensuring stable and long-lasting sealing reliability.
Viton Seals: Optional Viton (FPM) seals are available for applications requiring enhanced resistance to high temperatures, oils, solvents, and aggressive chemical media.
Quantity:
Contact Now
Recommend Products
Stainless Steel 45 degree sanitary buttweld pipe elbow

The Sanitary Stainless Steel Grooved 45 degree elbow is a buttweld elbow specially designed for food and beverage, biotechnology, pharmaceutical, dairy, beer brewing, daily chemical, and fine chemical industries. It is mainly used to change the direction of fluid transportation, achieving a 45° directional connection in piping systems while ensuring stability and cleanliness during media transfer.

The sanitary elbow is manufactured from high-quality 304 or 316L sanitary stainless steel and adopts a grooved connection design. It can be quickly installed and removed through clamps, reducing on-site welding work and improving installation efficiency. The internal flow channel is precisely polished, providing a smooth surface without dead corners, effectively reducing media residue and bacterial growth risks, and meeting the strict requirements of sanitary fluid transportation systems in food, pharmaceutical, and biotechnology industries.

The equipment supports CIP (Clean-in-Place) cleaning and SIP (Sterilization-in-Place) sterilization and can be widely used in various high-cleanliness fluid transportation pipeline systems.


Accessories

 Component & Material Table
  • Elbow body: Manufactured from AISI 304 or 316L sanitary stainless steel using precision manufacturing technology
  •  Grooved connection ends: Manufactured using integrated forging or precision machining processes
  • Fluid contact surface: Made of sanitary stainless steel with mirror polishing treatment
  • Sealing area: Designed according to sanitary sealing structure requirements
  • Surface treatment: Internal and external surfaces are processed by mechanical polishing or electrolytic polishing.
Product Parameter Details
  • Size Range: DN25 ~ DN300
  • Working Pressure: 0 ~ 16 Bar
  • Working Temperature: -20°C ~ 180°C
  •  Material:304, 304L, 316L
  • Surface Finish: Mirrorpolishing Ra≤ 0.8 μm
  •  Connection Type: Sanitary grooved connection
  •  Applicable Media: Food, beverages, dairy products, pharmaceutical liquids, fermentation liquids, and clean fluids
  •  Qualification Standards：Complies with FDA, GMP, 3-A, EHEDG and other sanitary requirements.
  •  Customization Service：Supports special sizes, special materials, special surface treatments, and customized non-standard structures.

Digital advantages

  • 1. Standardized Manufacturing
  • 2. Automated Polishing Process
  • 3. International Standard Compatibility
  • 4. Full Process Quality Inspection
  • 5. Customized Production Capabilit
Stainless Steel 45 degree sanitary buttweld pipe elbow

Feature (F)、Advantage (A)、Benefit (B)
  1.  Raw Materials:
  • F: The main body is manufactured from 304/316L sanitary stainless steel
  • A: Provides excellent corrosion resistance and long-term stable operation.
  • B: Extends product service life and reduces maintenance costs.
  1.  Grooved Connection Technology:
  • F: Uses standard sanitary grooved connection structure.
  • A: Fast installation without on-site welding.
  • B: Shortens construction time and improves installation efficiency.
  1.  Sanitary Structural Design:
  • F: Mirror-polished fluid contact surface with no sanitary dead corners.
  • A: Supports CIP cleaning and SIP sterilization.
  • B: Improves system cleanliness and production safety.
  1. Optimized Flow Guiding Structure:
  • F: Uses a 45° flow guiding structure design.
  • A: Reduces fluid resistance and pressure loss.
  • B:Low maintenance frequency; stable performance in high-frequency use; reduces replacement costs

Stainless Steel 45 degree sanitary buttweld pipe elbow

Product Type：Sanitary Stainless Steel Grooved 45° Elbow
Structure Type：45 Degree Flow Direction Pipe Fitting
Working Pressure：0 ~ 16 Bar
Working Temperature： -20°C ~ 180°C
Size Range：DN25 ~ DN300
Installation Type：Horizontal/Vertical
Cleaning Method：CIP /SIP
