Stainless Steel 1.5" Tri-Clamp Tank Level Sight Gauge Glass Valve

JN-LG-231001
Size: DN15–DN100.
Grade: SS304/SS316L.
Standard: DIN, SMS, 3A.
Working pressure: 0.1–1.6 MPa.
Test pressure: 2.4 MPa.
Temperature Range: -20°C to 180°C.
PTFE seals: chemical resistance.
Viton seals: high-temperature sealing reliability.
Quantity:
Contact Now
Stainless Steel  1.5"Tri-Clamp Tank Level Sight Gauge Glass Valve

The Stainless Steel  1.5"Sight Level Valve is a sanitary valve integrating level observation and aseptic sampling functions. Installed on the side wall of tanks such as storage tanks and reaction vessels, it is used for real-time display of the liquid level and online aseptic sampling detection. Types are available in quick-connect clamp, welded, and threaded connections; sealing rings can be made of food-grade materials such as PTFE and silicone; actuation is primarily manual with a handwheel, but pneumatic versions are also available. This Tri-Clamp level gauge valve is widely used in the food and beverage, biopharmaceutical, and daily chemical industries to meet the needs of level monitoring and aseptic sampling in high-cleanliness environments, ensuring compliance in production processes and product quality.
The core difference between Stainless Steel  Tank Level Sight Glass Valve and ordinary valve assembly lies in the following: the former is designed specifically for the clean industry, integrating level display and aseptic sampling, and adopts a quick-assembly, mirror-polished structure with no sanitary dead corners, enabling online non-destructive sampling; ordinary valve assembly only meets the on/off control function, lacks level observation function, has a rough structure, is easy to accumulate dirt, cannot meet aseptic requirements, and does not have convenient quick disassembly or sanitary compatibility.

This valve assembly integrates liquid level monitoring and aseptic sampling functions through a T-shaped valve body:after being installed on the side wall of the tank, rotating the top handwheel opens the valve passage, allowing the liquid inside the tank to flow into the level gauge under the principle of communicating vessels, displaying the liquid level height in real time; when sampling is required, the valve passage remains open, and the medium is extracted through the aseptic sampling port on the side, without interrupting production; closing the handwheel isolates the level gauge for easy maintenance and replacement. Its sanitary structure and quick-installation design ensure simultaneous liquid level monitoring and aseptic sampling under clean operating conditions.


Accessories

 Component & Material Table
  • Valve Body Material：316L/304 forged hygienic stainless steel, integrally forgedpump body, high strength and corrosion resistance
  • Disc Material：N/A (non-valve structure); core rotor material is 316L stainlesssteel / hygienic rubber (NBR/EPDM) / polytetrafluoroethylene(PTFE)
  • Diaphragm Material：No diaphragm structure; mechanical seal material is siliconcarbide / tungsten carbide / graphite, suitable for food andpharmaceutical media
  • Stem Material：N/A (non-valve structure); pump shaft material is 316Lstainless steel, hard chrome plated surface, corrosion-resistant and wear-resistant
  • Handwheel/Handle Material：304 stainless steel handwheel/handle for manual flowadjustment or maintenance positioning; some modelsequipped with electric/pneumatic actuator
Product Parameter Details
  • Structure Type：Double cam synchronous rotor structure, split pump head +base design, horizontal installation, single-stage / double-stage optional, synchronous gear / belt drive
  • Pressure Range：0.6~2.5 MPa (standard 1.0 MPa), high-pressure model up to4.0 MPa, suitable for medium-high pressure hygienicconveying applications
  • Main Function：Low-shear, pulse-free conveying of high-viscosity, particle-containing, volatile materials, achieving smooth materialtransfer and metering
  • Applicable Grade：Sanitary Grade, specifically for high-cleanliness industriessuch as food, pharmaceutical, bioengineering, daily chemical
  • Standards：Complies with DIN, SMS, 3A, ISO 2852 hygienic standards;electrical part complies with GB/T 5226.1/IP65
  • Hygiene & Safety Grade：Whole machine CIP/SIP online cleaning/sterilization; surfaceroughness of media-contact parts Ras0.4um, no hygienicdead legs; meets FDA/GMP/3A certification
  • Installation Orientation：Horizontal installation on a fixed base; inlet and outlet aretop/bottom or left/right symmetrical layout, facilitating directpipeline connection and adapting to pump forward/reverseswitching
  • Customization：Customizable rotor material (rubber/stainless steel/PTFE),flow range (5~1000 m2/h), explosion-proof等级, temperaturecontrol jacket, variable frequency drive system

Digital advantages

  • Material compliance, suitable for high-cleanliness export standards:Main body made of 100% virgin 304/316L stainless steel; internal surface electrolytic polishing roughness Ra≤0.4μm; seals made of USP Class VI certified PTFE/EPDM/medical-grade silicone; certified by 3A and EHEDG; fully meets FDA, GMP and other global food and pharmaceutical industry cleanliness requirements; eliminates media contamination risks.

  • Integrated structure, cost-effective and efficient for automated production lines:T-type integrated structure integrating level observation and aseptic sampling functions; clamp connection (ISO 2852/DIN 11866); installation efficiency increased by 60% compared to traditional split designs; can be equipped with pneumatic/electric actuators; compatible with automated production lines; reduces tank openings and pipeline redundancy; lowers installation and operation costs.

  • Precision machining, zero dead legs ensuring aseptic production:Full CNC precision machining + integral forging; flow path with no hygienic dead legs (Dead Leg < 3D); fully drainable valve chamber; withstands 121℃/30min SIP online sterilization and CIP in-place cleaning; sterilization success rate ≥ 99.8%; meets stringent aseptic control requirements for sterile preparations, biopharmaceuticals, etc.

  • Stable performance, suitable for multi-scenario export applications:Nominal pressure PN1.6MPa; operating temperature range -20℃~180℃; acid and alkali corrosion resistant; suitable for water, pharmaceutical liquids, dairy products, and other media; 100,000 cycles without leakage; service life exceeding 8 years; passes 1.5 times hydraulic pressure strength test; suitable for industrial pipelines and production environments in different regions worldwide.

  • Customization services to meet differentiated needs of global customers: Supports customization of full bore sizes DN15-DN50, various connection types (clamp/weld/thread), actuation modes (manual/pneumatic/electric); provides complete material certificates, 3.1B inspection reports, CE certification documents; delivery lead time ≤ 15 days; quickly responds to overseas customers' non-standard requirements and compliance audit needs.

Stainless Steel  1.5"Tri-Clamp Tank Level Sight Gauge Glass Valve

Feature (F)、Advantage (A)、Benefit (B)
  1. Raw Material:
  • F: Main body made of 100% virgin 304/316L stainless steel; seals made of food-gradePTFE/EPDM/medical-grade silicone (fluororubber optional)
  • A: Excellent corrosion resistance and high/low temperature resistance; no material leaching;meets hygienic industry standards
  • B: Suitable for clean applications in food, pharmaceutical, daily chemical, etc. completelyavoids media contamination risk; ensures product compliance
  1. Processing Technology:
  • F: Full CNC precision machining; integral forging; internal flow path mirror polishing(Ras0.4um); electrolytic passivation treatment
  • A:  No media residue dead corners; high structural strength; stable dimensional accuracy;smooth flow path transition
  • B: Reduces fluid pressure loss; ensures stable media transfer; suitable for CIP/SIP cleaning andsterilization; reduces cleaning and maintenance costs
  1. Structure Feature:
  • F:  T-type / angle-type integrated structure; clamp connection (ISO 2852/DIN 11866); integratedlevel observation + aseptic sampling design
  • A:No hygienic dead legs; easy installation and disassembly; excellent sealing performance;high connection strength; zero leakage
  • B:  Reduces installation downtime; adapts to clean pipeline layouts; reduces productionoperation risks; improves equipment maintenance efficiency
  1. Core Accessory Feature:
  • F:  Knurled stainless steel handwheel (pneumatic/electric actuator optional); high-transparencytempered glass window; aseptic sampling nozzle / clamp connection
  • A: : Anti-slip, labor-saving operation; clear level observation; sealed aseptic sampling; adaptableto automation control
  • B:: Reduces rework costs; ensures long-term stable operation; improves production systemautomation and aseptic control level
  1. Seal Ring Feature:
  • F:Hygienic PTFE/EPDM/silicone seal (fluororubber optional); wide temperature range, chemical corrosion resistant; withstands 121°C steam sterilization
  • A: Reliable sealing performance; no leakage; long service life; aging resistant
  • B: Suitable for -20°C~180°C operating conditions; prevents media leakage; avoids seal failure;ensures production continuity

Stainless Steel  1.5"Tri-Clamp Tank Level Sight Gauge Glass Valve

Maximum Flow Rate：15 m2/h (DN25, 1.6MPa, water medium)
Maximum Pressure：1.6 MPa (16 bar)
Max speed：5 m/s (for liquid medium)
Body Material：304 / 316L Stainless Steel (100% virgin material)
Actuation Type：Manual (knurled handwheel) / Pneumatic Actuator (optional)
Handle Brand：In-house CNC machined stainless steel handle

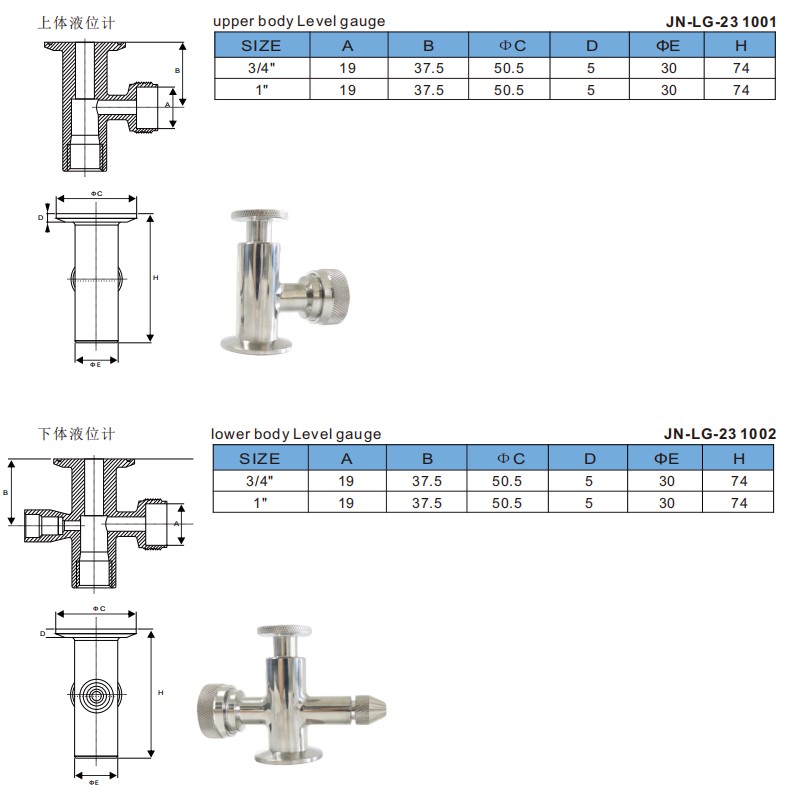

Inlet & Outlet Sizes：DN15 / DN20 / DN25 (1/2"/ 3/4"/1")
