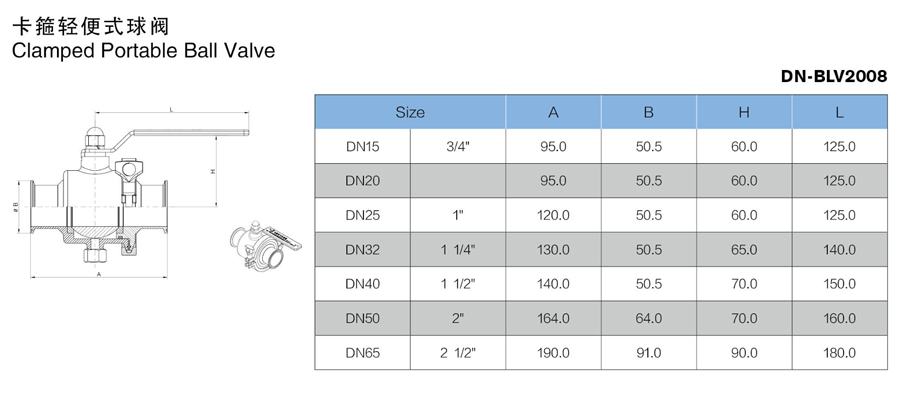

Stainless Steel Sanitary Quick Release Manual Non-Retention Ball Valve
The completelyfull-through design for valve chamber can not bring any liquid resistance,
so it is the best choice for dealing with sticky or grain liquid.
Features:
High precise casting body
Pressure: 10bar
Temperature: -60~ 180 degree
Body type: Side clamp type or middle clamp type
Working mode: Manual type, electrical type, pneumatic type
Gaskets: PTFE EPDM
Non retaining, Easy cleaning, easy maintenance, light weight,
FeaturesThe valve body is assembly with clamp so it is easily remaintenance
Operation torque is small
Valve gasket is applied with FDA 177.2600
Different connection end of clamp, weld, thread
Size: 1/2"-3"
Material: SS304, SS316L
Connection end: Weld, tri-clamped,
Standard: DIN, SMS
Material: SS304, SS316L
Inside surface finish: Ra0.4
Outside surface finish: Ra 0.6
Size: DN15-DN65 , 1/2”-2 1/2”
Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries
