High Polishing Stainless Steel Sanitary Single Cartridge Filter Equipment With SS Mesh
Line type Filters are used for filtering the solid particles in liquid. The inlet and outlet of line type filters are in the same line. So it is widely used for the pipeline. Yet we will need to dis-assembly the line filter when we need to clean the filter element.
Reasonable structure
Good filtration and sealing ability
Small pressure loss
Easy maintenance
Max operation pressure:1.0mpa
Max operation temperature: 120 C
Filtering accuracy: 0.5mm, 1mm,2mm,3mm,5mm,8mmMax flow rate: 15T/H

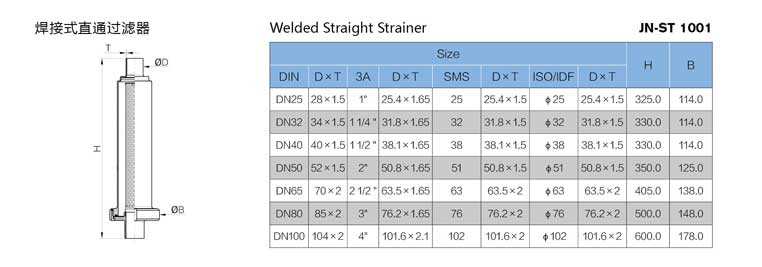

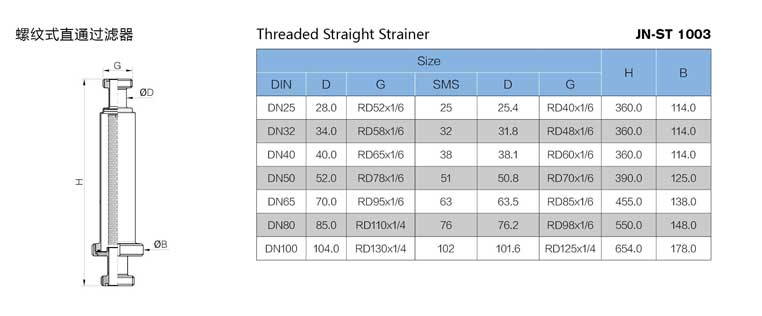

Connection end: welded, tri-clamped. Threaded, union end
Filter element :30#, 40#, 60#, 80#,100#, 120#, 150#, 200#, 240#, 260#, 300#, 320#, 360#, 400#
Size: 1”-4”
Material: SS304, SS316L
Inside Ra: 0.4um
Outside surface Ra:0.8um
Seal: EPDM, silicone,
Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries
