High Polishing Stainless Steel  Food Grade  Multi Cartridge Water Filter Housiing

Angle type Filters are used for filtering the solid particles in liquid. The inlet and outlet of Angle type filters are 90 degree. The filter housing and filter element are seperate. We can easily dis-assembly the filter element from housing so it is easy to clean the element.

Reasonable structure

Good  filtration and sealing ability

Small pressure loss

Easy maintenance

Max operation pressure:1.0mpa
Max operation temperature: 120 C
Filtering accuracy: 0.5mm, 1mm,2mm,3mm,5mm,8mmMax flow rate: 15T/H
Connection end: welded, tri-clamped. Threaded, union end
Filter element :30#, 40#, 60#, 80#,100#, 120#, 150#,  200#, 240#, 260#, 300#, 320#, 360#, 400#

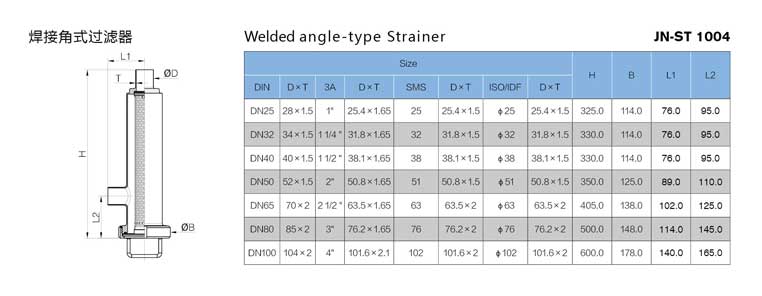

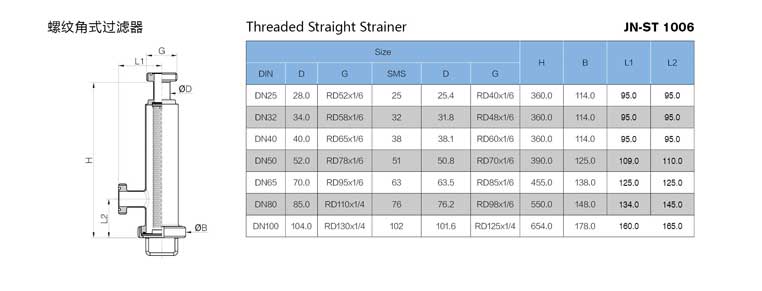

Size: 1”-4”
Material: SS304, SS316L
Inside Ra: 0.4um
Outside surface Ra:0.8um
Seal: EPDM, silicone,
Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries
