Stainless Steel Sanitary Pneumatic 3 Way Casting Diaphragm Valve
Manual Diaphragm valve
Stainless steel sanitary Diaphragm Valve
The diaphragm valve is widely used for pharmaceutical industries. This valve is widely used for controlling flow rate.
Features:
Valve body which contacts with liquid is made of SS316L. The non-contacting part is made of SS304 material.

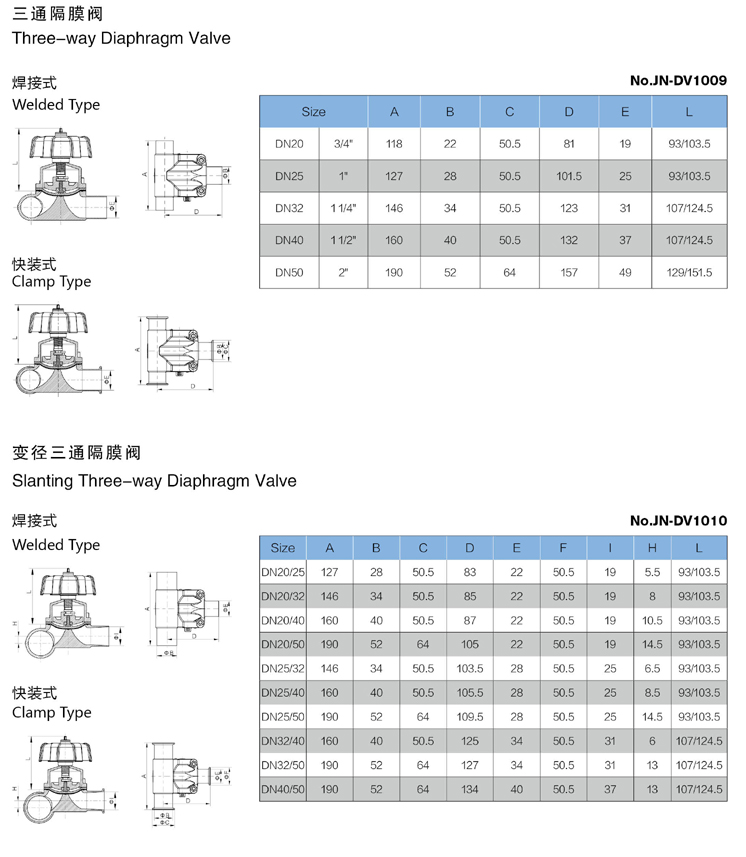

Valve body type: Two way mirror type, two way sand blasting type, three way, U type, T type
Gasket: Silicone, EPDM, EPDM+PTFE integrated membrane , EPDM/PTFE seperate membrane
Integrated membrane
Max. Pressure: 10bar
Max. Temperature: -10 ~ +120 degree
Material quality: SS 316L
Inside surface finish: Ra0.4
Standard: DIN, SMS
Connection: welded, clamped, flanged,
Size:
Mini type: DN6, DN8, DN10,
Medium type: DN15-DN50
Large type: DN65, DN80, DN100
Applications: Widely used for pharmaceutical and chemical industries
