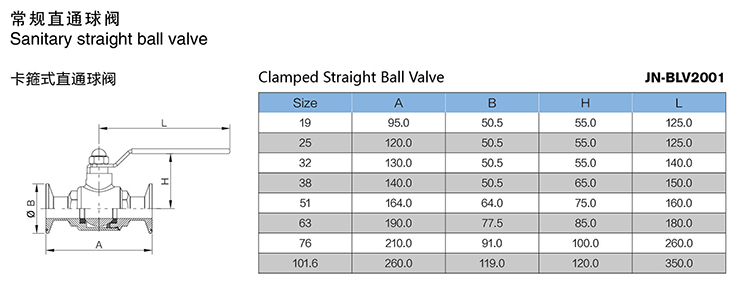

Stainless Steel  Hygienic Female Manual Straight Way Ball Valve

Stainless Steel Hygienic Female Manual Straight Way Ball Valve


    Stainless Steel Sanitary Ball Valve,Stainless Steel Sanitary BV, Stainless Steel Sanitary BV Valve,Stainless Steel Sanitary Flow Control Valve

Stainless Steel  Hygienic Female Manual Straight Way Ball Valve

The completelyfull-through design for valve chamber can not bring any liquid resistance,
so it is the best choice for dealing with sticky or grain liquid.


Features:

Free maintenance
Small operating torque
Smaller and lighter than the others
High precise Forging body
Pressure: 10bar
Temperature: -60~ 180 degree
Body type: Two way, Three way type( L type and T type)
Working mode: Manual type, electrical type, pneumatic type
Gaskets: PTFE  EPDM
Easy cleaning, easy maintenance, light weight,

Connection end: Weld, tri-clamped, union, flange,male threading, female threading
Standard: DIN, SMS, ISO, 3A, IDF
Material: SS304, SS316L
Inside surface finish: Ra0.4

Outside surface finish: Ra 0.6
Size: DN15-DN100 , 1/2”-4”
Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries
