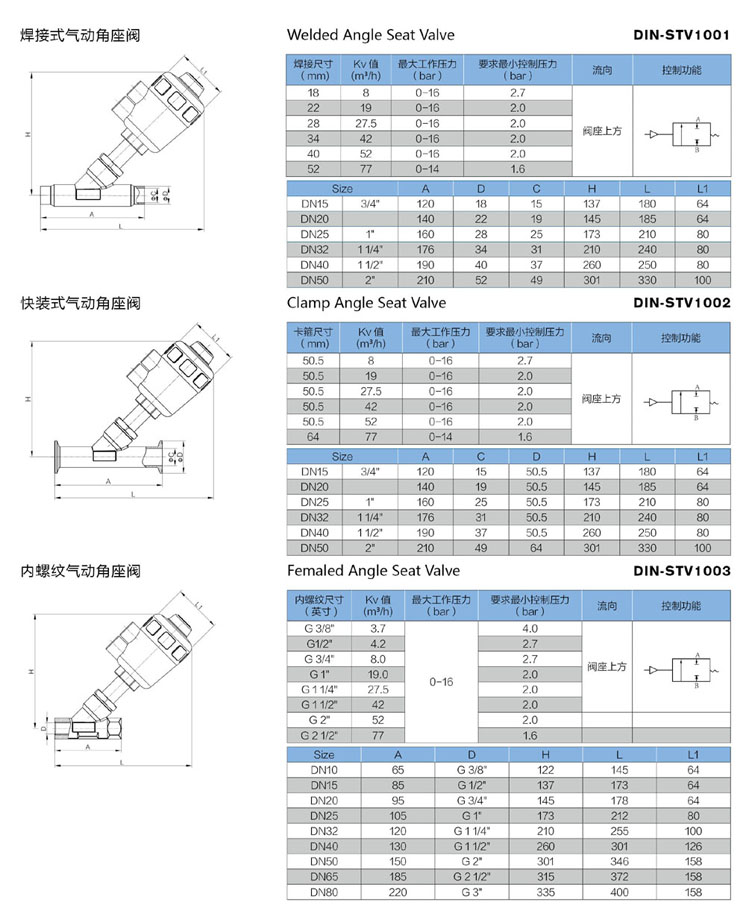

Solenoid valve can be directly mounted on this type of angle piston valve.

Nominal Diameter: DN15-80
Pressure Range: 0-1.6MPa
Medium Temp.: -20℃~+180℃
Ambient Temp.: -20℃~+60℃
Valve Body Material: Stainless steel
Sealing Material: PTFE
Actuator Cover: PA
Applicable Medium: Air, liquid, steam
Controlling Pressure: 3-8bar
Type: Double-acting, single-acting, no water hammer
